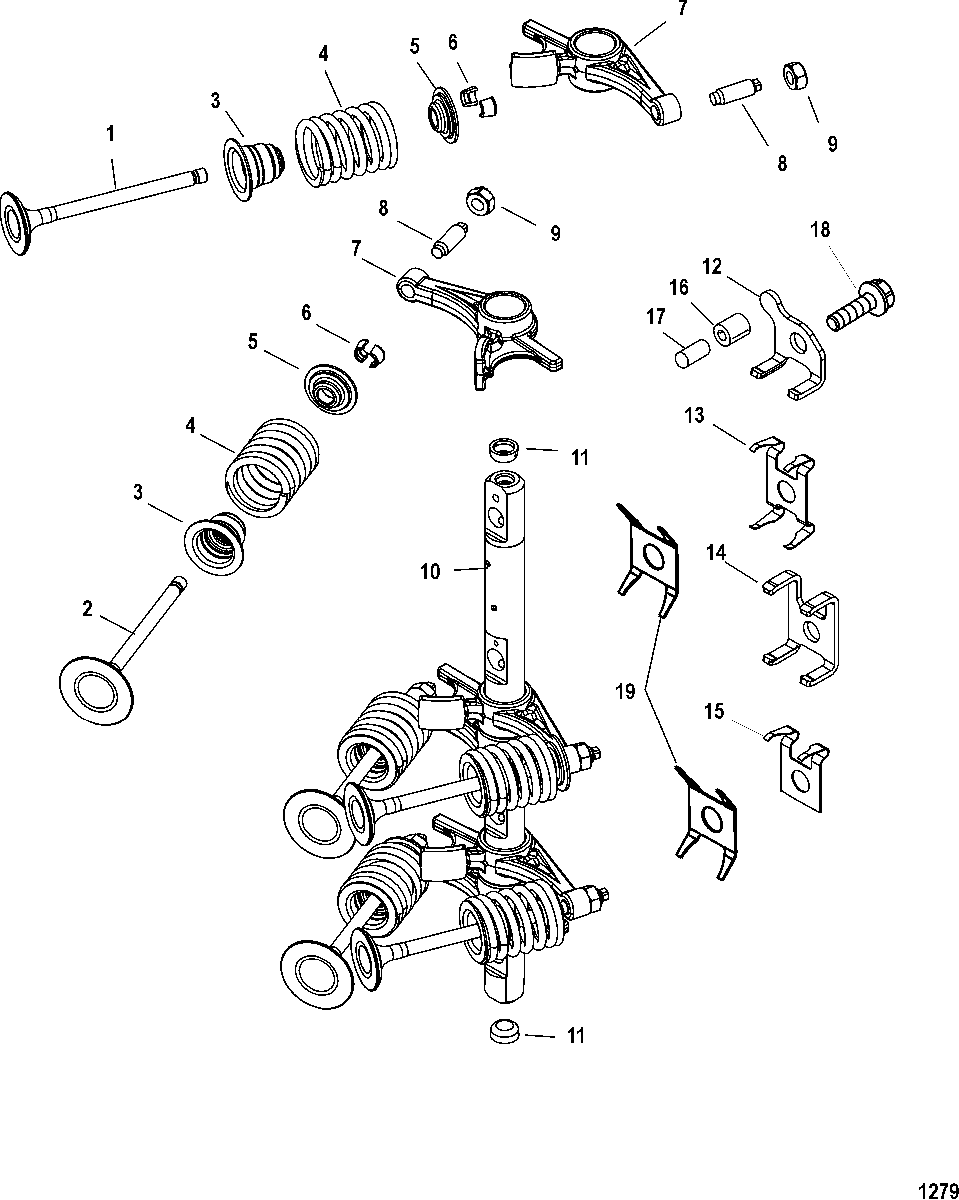

Intake/Exhaust Valves для Mercury - 30 Carb (3 CYL.)(4-STROKE) 0P153500 THRU 0P400999

  • №
    Артикул
    Название
  • 1
    8M0065029 VALVE, Exhaust
    VALVE, Exhaust
  • 2
    832990T3 VALVE, Intake
    VALVE, Intake
  • 3
    26-858271 SEAL
    SEAL
  • 4
    24-893552 SPRING, Valve - Outer
    SPRING, Valve - Outer
  • 5
    893553 RETAINER
    RETAINER
  • 6
    28-893554 KEY
    KEY
  • 7
    898821A01 ROCKER ARM
    ROCKER ARM
  • 8
    898821A01 SCREW
    SCREW
  • 9
    11-826150 NUT
    NUT
  • 10
    834780T1 SHAFT, Rocker
    SHAFT, Rocker
  • 11
    NSS NOT SOLD SEPARATE, Plug
    NOT SOLD SEPARATE, Plug
  • 12
    893560 BRACKET
    BRACKET
  • 13
    24-893562 SPRING
    SPRING
  • 14
    893561 BRACKET
    BRACKET
  • 15
    24-854713 SPRING
    SPRING
  • 16
    27-893645 GASKET
    GASKET
  • 17
    17-859575 PIN
    PIN
  • 18
    10-875218 SCREW, (M8 x 23)
    SCREW, (M8 x 23)
  • 19
    24-893563 SPRING, Overload
    SN# USA-USA-0T800999/BEL-0P267999 and below & Below
    SPRING, Overload
    SN# USA-USA-0T800999/BEL-0P267999 and below & Below
  • 19
    24-893563 SPRING, Overload
    SN# USA-0T801000/BEL-0P268000 and up & Up
    SPRING, Overload
    SN# USA-0T801000/BEL-0P268000 and up & Up
  • -
    27-825231A02 GASKET SET, Engine
    GASKET SET, Engine
  • -
    893504T01 CYLINDER HEAD ASSEMBLY
    (ELECTRIC)
    CYLINDER HEAD ASSEMBLY
    (ELECTRIC)
  • -
    893504T02 CYLINDER HEAD ASSEMBLY
    (MANUAL)
    CYLINDER HEAD ASSEMBLY
    (MANUAL)
