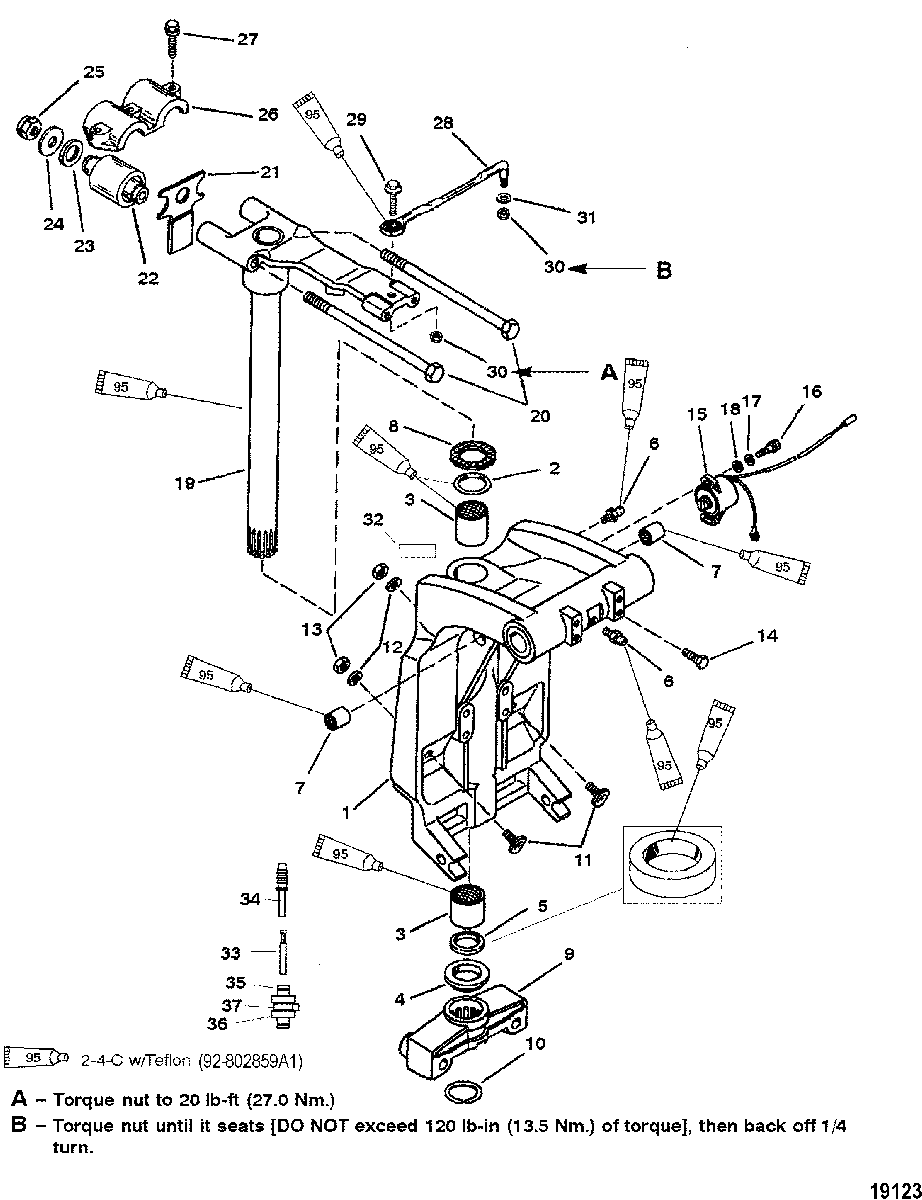

Swivel Bracket and Steering Arm для Mercury - 250 (3.0L EFI) 0G760300 THRU 0T408999

  • №
    Артикул
    Название
  • 1
    1499-8M0102865 SWIVEL BRACKET ASSEMBLY, Black
    (BLACK)
    SWIVEL BRACKET ASSEMBLY, Black
    (BLACK)
  • 2
    25-33504 O-RING
    O-RING
  • 3
    23-818764 BUSHING
    BUSHING
  • 4
    23-816039 SPACER
    SPACER
  • 5
    26-87735 SEAL, Oil (LOWER)
    SEAL, Oil (LOWER)
  • 6
    22-74036 FITTING, Grease
    FITTING, Grease
  • 7
    23-821207 BUSHING
    BUSHING
  • 8
    12-816432 THRUST WASHER
    THRUST WASHER
  • 9
    814084F1 YOKE, Bottom
    (BLACK)(LONG - CARBON STEEL)
    YOKE, Bottom
    (BLACK)(LONG - CARBON STEEL)
  • 9
    826364T YOKE, Bottom
    (BLACK-XL/XXL-STAINLESS STEEL)
    YOKE, Bottom
    (BLACK-XL/XXL-STAINLESS STEEL)
  • 10
    53-67684 RING, Retaining
    RING, Retaining
  • 11
    8M0045383 STRIKER PLATE
    STRIKER PLATE
  • 12
    13-58643 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 13
    11-46335 NUT, (.375-24)
    NUT, (.375-24)
  • 14
    10-64014 SCREW, (.250-28 x .500)
    SCREW, (.250-28 x .500)
  • 15
    8M0098273 SENDER ASSEMBLY, Trim
    SENDER ASSEMBLY, Trim
  • 16
    10-852368 SCREW, (#10-24 x .750)
    SCREW, (#10-24 x .750)
  • 17
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 18
    12-89302 WASHER, (.203 x .406 x .040)
    WASHER, (.203 x .406 x .040)
  • 19
    17-8M0132731 SWIVEL PIN ASSEMBLY, Steering Arm
    (LONG - CARBON STEEL)
    SWIVEL PIN ASSEMBLY, Steering Arm
    (LONG - CARBON STEEL)
  • 19
    17-8M0132731 SWIVEL PIN ASSEMBLY, Steering Arm - Stainless Steel
    (XL/XXL-STAINLESS STEEL)
    SWIVEL PIN ASSEMBLY, Steering Arm - Stainless Steel
    (XL/XXL-STAINLESS STEEL)
  • 20
    10-8M0141069 SCREW, (M12 x 190)
    SCREW, (M12 x 190)
  • 21
    824998001 BUMPER
    BUMPER
  • 22
    8163851 MOUNT, Upper
    MOUNT, Upper
  • 23
    12-8154371 WASHER
    WASHER
  • 24
    12-815436 WASHER
    WASHER
  • 25
    11-896963 NUT, (M12)
    NUT, (M12)
  • 26
    8M0036783 CLAMP
    CLAMP
  • 27
    10-81893435 SCREW, (M8 x 35)
    SCREW, (M8 x 35)
  • 28
    92876A12 LINK ROD ASSEMBLY
    LINK ROD ASSEMBLY
  • 29
    10-849838 SCREW, (.375-24 x 1.250)
    SCREW, (.375-24 x 1.250)
  • 30
    11-8M0042636 NUT, (.375-24) Stainless Steel
    NUT, (.375-24) Stainless Steel
  • 31
    12-37828 WASHER, (.390 x .625 x .062) Stainless Steel
    WASHER, (.390 x .625 x .062) Stainless Steel
  • 32
    NSS NOT SOLD SEPARATE, Decal-Serial Overlaminate
    NOT SOLD SEPARATE, Decal-Serial Overlaminate
  • 33
    22-859732 PLUG
    PLUG
  • 34
    22-859731 FITTING, Adapter
    FITTING, Adapter
  • 35
    22-859448T FITTING
    FITTING
  • 36
    25-821555001 GROMMET
    GROMMET
  • 37
    54-850181 TIE STRAP, (11.750 Inches)
    TIE STRAP, (11.750 Inches)
