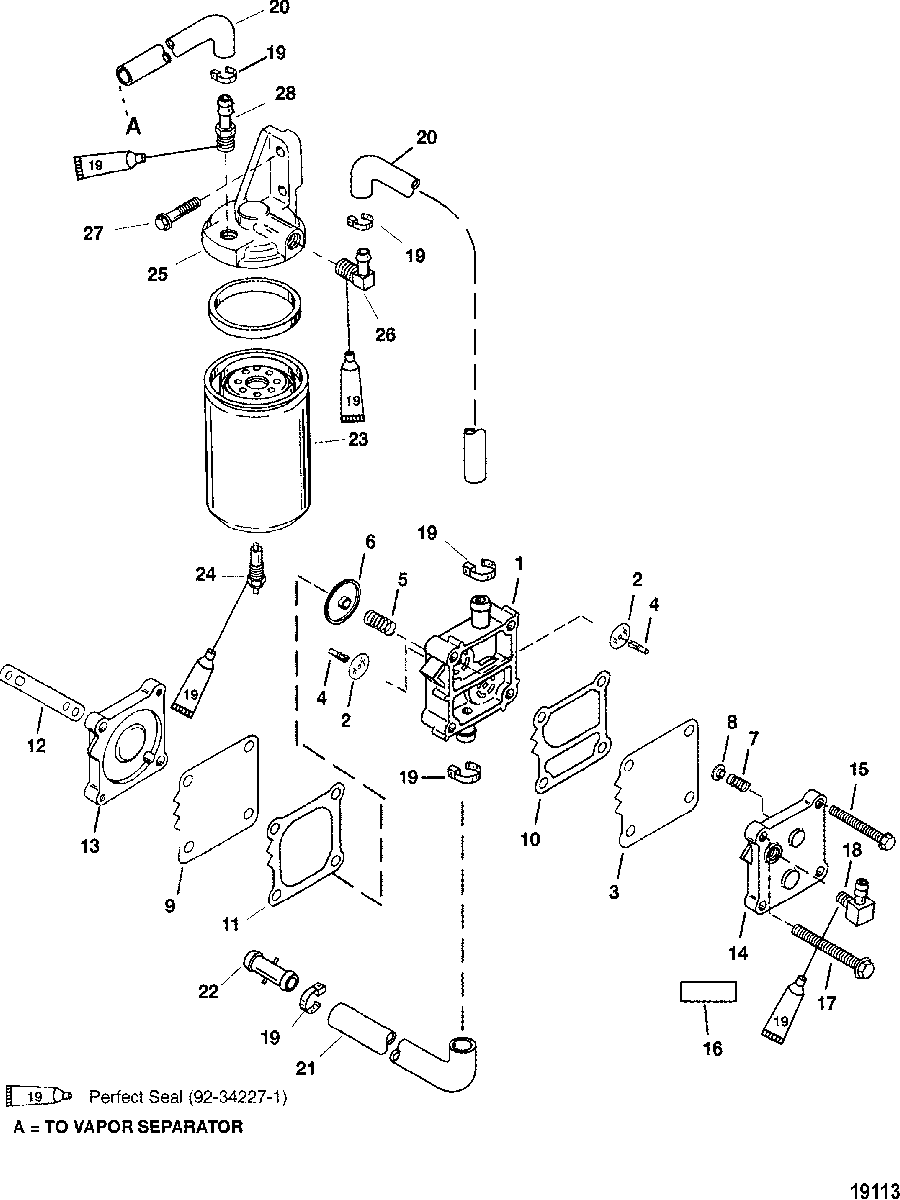

Fuel Pump для Mercury - 250 (3.0L EFI) 0G760300 THRU 0T408999

  • №
    Артикул
    Название
  • -
    14360A78 PUMP ASSEMBLY, Fuel
    PUMP ASSEMBLY, Fuel
  • 1
    NSS NOT SOLD SEPARATE, Fuel Pump
    NOT SOLD SEPARATE, Fuel Pump
  • 2
    21-857005A1 DIAPHRAGM KIT
    DIAPHRAGM KIT
  • 3
    NSS NOT SOLD SEPARATE, Diaphragm
    NOT SOLD SEPARATE, Diaphragm
  • 4
    NSS NOT SOLD SEPARATE, Retainer
    NOT SOLD SEPARATE, Retainer
  • 5
    NSS NOT SOLD SEPARATE, Spring
    NOT SOLD SEPARATE, Spring
  • 6
    NSS NOT SOLD SEPARATE, Cap
    NOT SOLD SEPARATE, Cap
  • 7
    NSS NOT SOLD SEPARATE, Spring
    NOT SOLD SEPARATE, Spring
  • 8
    NSS NOT SOLD SEPARATE, Cap
    NOT SOLD SEPARATE, Cap
  • 9
    NSS NOT SOLD SEPARATE, Diaphragm
    NOT SOLD SEPARATE, Diaphragm
  • 10
    NSS NOT SOLD SEPARATE, Gasket-Boost
    NOT SOLD SEPARATE, Gasket-Boost
  • 11
    NSS NOT SOLD SEPARATE, Gasket-Pulse
    NOT SOLD SEPARATE, Gasket-Pulse
  • 12
    27-987691 GASKET
    GASKET
  • 13
    144303 BASE
    BASE
  • 14
    987752 PLATE
    PLATE
  • 15
    10-82104540 SCREW, (M5 x 40)
    SCREW, (M5 x 40)
  • 16
    NSS NOT SOLD SEPARATE, Decal
    NOT SOLD SEPARATE, Decal
  • 17
    10-82130050 SCREW, (M6 x 50)
    SCREW, (M6 x 50)
  • 18
    22-629101 FITTING, Elbow - 90 Degree (.125-27)
    FITTING, Elbow - 90 Degree (.125-27)
  • 19
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 20
    32-8M0108349 TUBING, (.312) (70.00 Inches Bulk) (17 IN.)
    TUBING, (.312) (70.00 Inches Bulk) (17 IN.)
  • 21
    32-85682257 TUBING, (26.00 Inches Bulk) (26 IN.)
    SN# 0G960500 & Up
    TUBING, (26.00 Inches Bulk) (26 IN.)
    SN# 0G960500 & Up
  • 21
    32-8M0108349 TUBING, (.312) (70.00 Inches Bulk) (17 IN.)
    SN# 0G960499 & Below
    TUBING, (.312) (70.00 Inches Bulk) (17 IN.)
    SN# 0G960499 & Below
  • 22
    22-822769 CONNECTOR
    CONNECTOR
  • 23
    35-18458Q4 FILTER KIT
    FILTER KIT
  • 24
    8285861 PROBE
    PROBE
  • 25
    13170A3 BASE
    BASE
  • 26
    22-136071 ELBOW
    ELBOW
  • 27
    10-82130030 SCREW, (M6 x 30)
    SCREW, (M6 x 30)
  • 28
    22-89771Q2 CONNECTOR, (.250-18)
    CONNECTOR, (.250-18)
  • -
    27-814195A93 GASKET SET
    GASKET SET
  • -
    809794R97 POWERHEAD ASSEMBLY
    (225/250) SN# 0G960499 & Below
    POWERHEAD ASSEMBLY
    (225/250) SN# 0G960499 & Below
  • -
    804799A00 POWERHEAD ASSEMBLY
    (225) SN# 0G960500 & Up
    POWERHEAD ASSEMBLY
    (225) SN# 0G960500 & Up
  • -
    804800R00 POWERHEAD ASSEMBLY
    (250) SN# 0G960500 & Up
    POWERHEAD ASSEMBLY
    (250) SN# 0G960500 & Up
