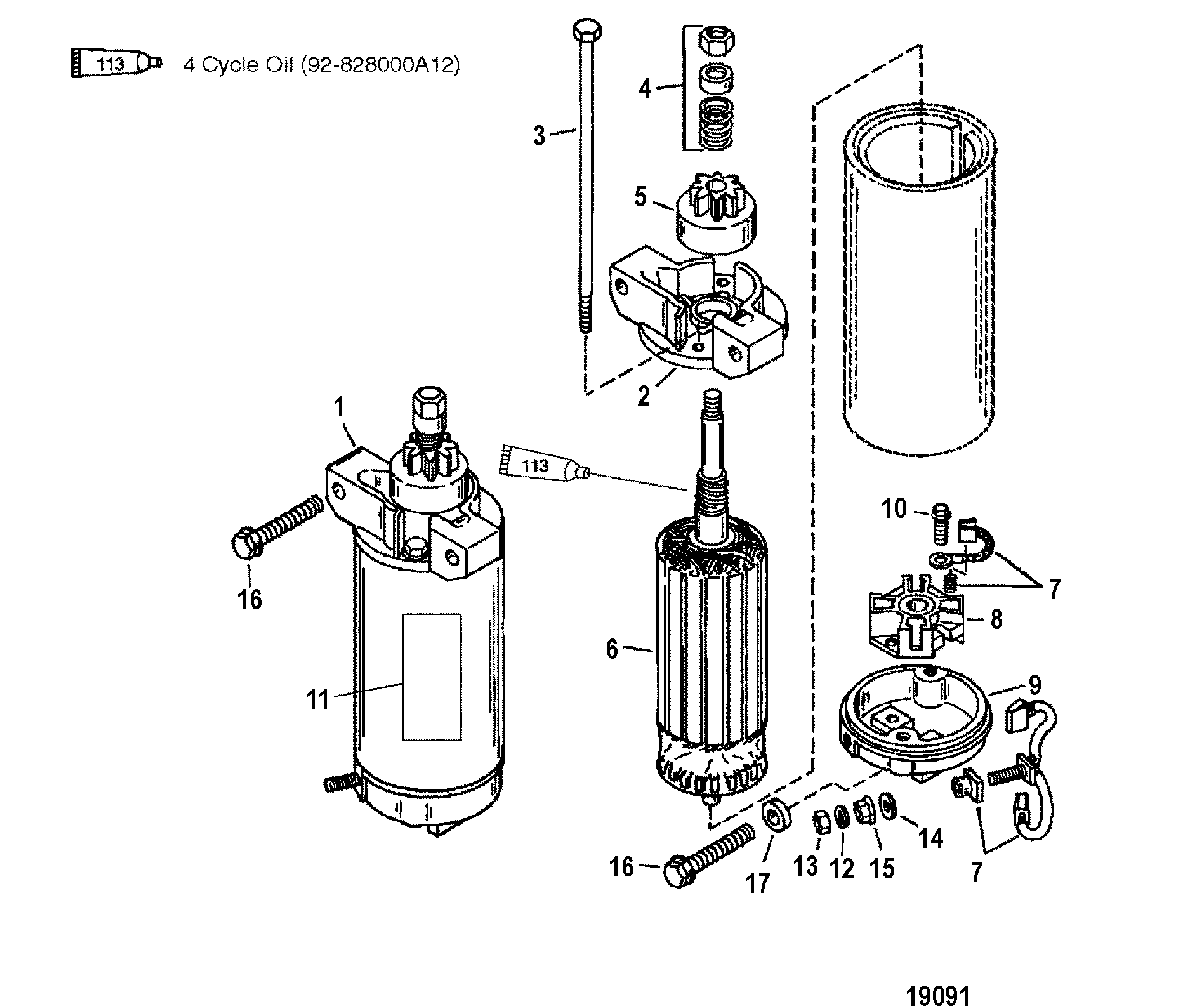

Starter Motor для Mercury - 250 (3.0L EFI) 0G760300 THRU 0T408999

  • №
    Артикул
    Название
  • 1
    50-898265009 STARTER MOTOR ASSEMBLY
    STARTER MOTOR ASSEMBLY
  • 2
    8236392 DRIVE CAP
    DRIVE CAP
  • 3
    10-823641 THRU BOLT
    THRU BOLT
  • 4
    823640T DRIVE KIT
    DRIVE KIT
  • 5
    13310T1 PINION ASSEMBLY
    PINION ASSEMBLY
  • 6
    823638 ARMATURE
    ARMATURE
  • 7
    898265016 BRUSH/SPRING KIT
    BRUSH/SPRING KIT
  • 8
    898265014 HOLDER
    HOLDER
  • 9
    8119011 CAP, Commutator
    CAP, Commutator
  • 10
    F15158 SCREW
    SCREW
  • 11
    37-8272822 DECAL, Warning, High Voltage
    DECAL, Warning, High Voltage
  • 12
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 13
    11-94330 NUT, (.250-20) Brass
    NUT, (.250-20) Brass
  • 14
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 15
    11-20890 NUT, (.250-20)
    NUT, (.250-20)
  • 16
    10-81893450 SCREW, (M8 x 50)
    SCREW, (M8 x 50)
  • 17
    23-824921 SPACER
    SPACER
