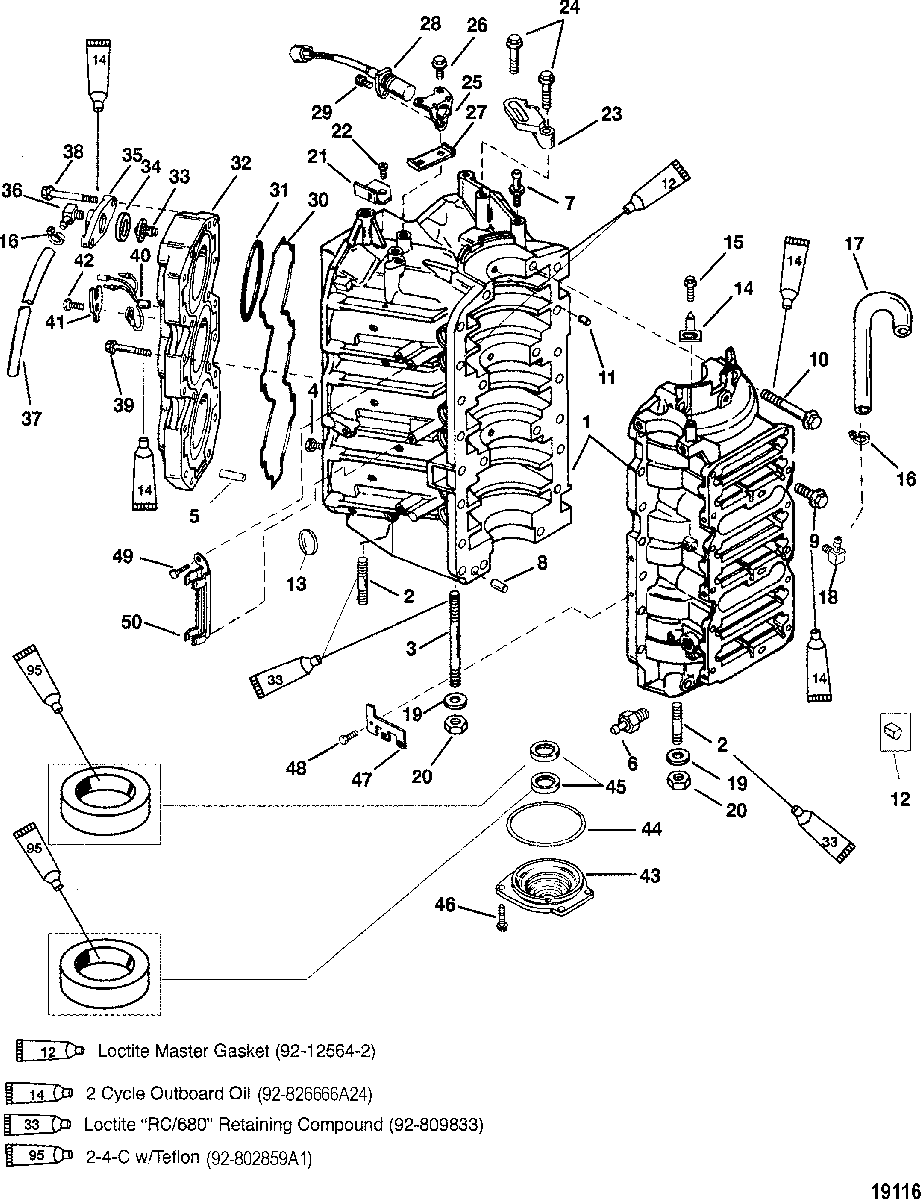

Cyliner Block and End Caps для Mercury - 250 (3.0L EFI) 0G760300 THRU 0T408999

  • №
    Артикул
    Название
  • 1
    885-9811A57 CYLINDER BLOCK
    (225) SN# 0G960500 & Up
    CYLINDER BLOCK
    (225) SN# 0G960500 & Up
  • 1
    885-9811A58 CYLINDER BLOCK
    (250) SN# 0G960500 & Up
    CYLINDER BLOCK
    (250) SN# 0G960500 & Up
  • 1
    885-9811A19 CYLINDER BLOCK
    SN# 0G960499 & Below
    CYLINDER BLOCK
    SN# 0G960499 & Below
  • 2
    16-903509 STUD, (M10 x 1.5 x 64)
    STUD, (M10 x 1.5 x 64)
  • 3
    16-8154431 STUD, (M10 x 1.5 x 155)
    STUD, (M10 x 1.5 x 155)
  • 4
    22-328022 PLUG, Pipe (.125-27) Brass
    PLUG, Pipe (.125-27) Brass
  • 5
    8248577 DEFLECTOR, Water
    DEFLECTOR, Water
  • 6
    21-8781051 CHECK VALVE
    CHECK VALVE
  • 7
    8215832 PIN
    PIN
  • 8
    17-43044 PIN, Dowel - Without Hole (.375 x .625)
    PIN, Dowel - Without Hole (.375 x .625)
  • 9
    10-81893435 SCREW, (M8 x 35)
    SCREW, (M8 x 35)
  • 10
    10-82446180 SCREW, (M10 x 80)
    SCREW, (M10 x 80)
  • 11
    17-8M0036405 PIN
    PIN
  • 12
    19-850309001 PLUG
    PLUG
  • 13
    NSS NOT SOLD SEPARATE, Plug-Serial Number
    NOT SOLD SEPARATE, Plug-Serial Number
  • 14
    8217621 TIMING POINTER
    TIMING POINTER
  • 15
    10-82130012 SCREW, (M6 x 12)
    SCREW, (M6 x 12)
  • 16
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 17
    32-826544A1 TUBING KIT
    TUBING KIT
  • 18
    22-687271 FITTING, (.250-18) 90 Degree - Brass
    FITTING, (.250-18) 90 Degree - Brass
  • 19
    12-856774 WASHER, (.406 x .750 x .105) Stainless Steel
    WASHER, (.406 x .750 x .105) Stainless Steel
  • 20
    11-4013610 NUT, (M10) Stainless Steel
    NUT, (M10) Stainless Steel
  • 21
    8256751 BRACKET
    BRACKET
  • 22
    10-82130012 SCREW, (M6 x 12)
    SCREW, (M6 x 12)
  • 23
    8211051 BRACKET, Alternator
    BRACKET, Alternator
  • 24
    10-81893450 SCREW, (M8 x 50)
    SCREW, (M8 x 50)
  • 25
    8212251 BRACKET
    BRACKET
  • 26
    10-82130012 SCREW, (M6 x 12)
    SCREW, (M6 x 12)
  • 27
    822486 BRACKET, Guide
    BRACKET, Guide
  • 28
    821909 SENSOR
    SENSOR
  • 29
    10-82104510 SCREW, (M5 x 10)
    SCREW, (M5 x 10)
  • 30
    818574 SEAL, Cylinder Head
    SEAL, Cylinder Head
  • 31
    25-818573 O-RING
    O-RING
  • 32
    812851A16 CYLINDER HEAD
    SN# 0G960500 & Up
    CYLINDER HEAD
    SN# 0G960500 & Up
  • 32
    812851A2 CYLINDER HEAD
    SN# 0G960499 & Below
    CYLINDER HEAD
    SN# 0G960499 & Below
  • 33
    833072003 THERMOSTAT, 62A° Celsius (143A° Fahrenheit)
    THERMOSTAT, 62A° Celsius (143A° Fahrenheit)
  • 34
    27-62386001 GASKET, Thermostat
    GASKET, Thermostat
  • 35
    19801A1 THERMOSTAT COVER
    THERMOSTAT COVER
  • 36
    22-8167811 ELBOW
    ELBOW
  • 37
    32-77653101 HOSE, (48.00 Inches Bulk) (19 IN.)
    (PORT)
    HOSE, (48.00 Inches Bulk) (19 IN.)
    (PORT)
  • 37
    32-77653101 HOSE, (48.00 Inches Bulk) (20-1/2 IN.)
    (STARBOARD)
    HOSE, (48.00 Inches Bulk) (20-1/2 IN.)
    (STARBOARD)
  • 38
    10-82446090 SCREW, (M8 x 90)
    SCREW, (M8 x 90)
  • 39
    10-8M0045380 SCREW, (M8 x 50)
    SCREW, (M8 x 50)
  • 40
    13536A14 SENSOR ASSEMBLY, Temperature
    SENSOR ASSEMBLY, Temperature
  • 41
    137151 RETAINER
    RETAINER
  • 42
    10-81893414 SCREW, (M8 x 14)
    SCREW, (M8 x 14)
  • 43
    1171-9787A4 END CAP ASSEMBLY
    END CAP ASSEMBLY
  • 44
    25-62700 O-RING, (3.237 x .103)
    O-RING, (3.237 x .103)
  • 45
    26-8308981 SEAL
    SEAL
  • 46
    10-82130020 SCREW, (M6 x 20)
    SCREW, (M6 x 20)
  • 47
    8261211 BRACKET
    BRACKET
  • 48
    10-48408 SCREW, (#10-16 x .500)
    SCREW, (#10-16 x .500)
  • 49
    10-82130012 SCREW, (M6 x 12)
    SCREW, (M6 x 12)
  • 50
    8266241 CLAMP
    CLAMP
  • -
    809794R97 POWERHEAD ASSEMBLY
    (225/250) SN# 0G960499 & Below
    POWERHEAD ASSEMBLY
    (225/250) SN# 0G960499 & Below
  • -
    804799A00 POWERHEAD ASSEMBLY
    (225) SN# 0G960500 & Up
    POWERHEAD ASSEMBLY
    (225) SN# 0G960500 & Up
  • -
    804800R00 POWERHEAD ASSEMBLY
    (250) SN# 0G960500 & Up
    POWERHEAD ASSEMBLY
    (250) SN# 0G960500 & Up
