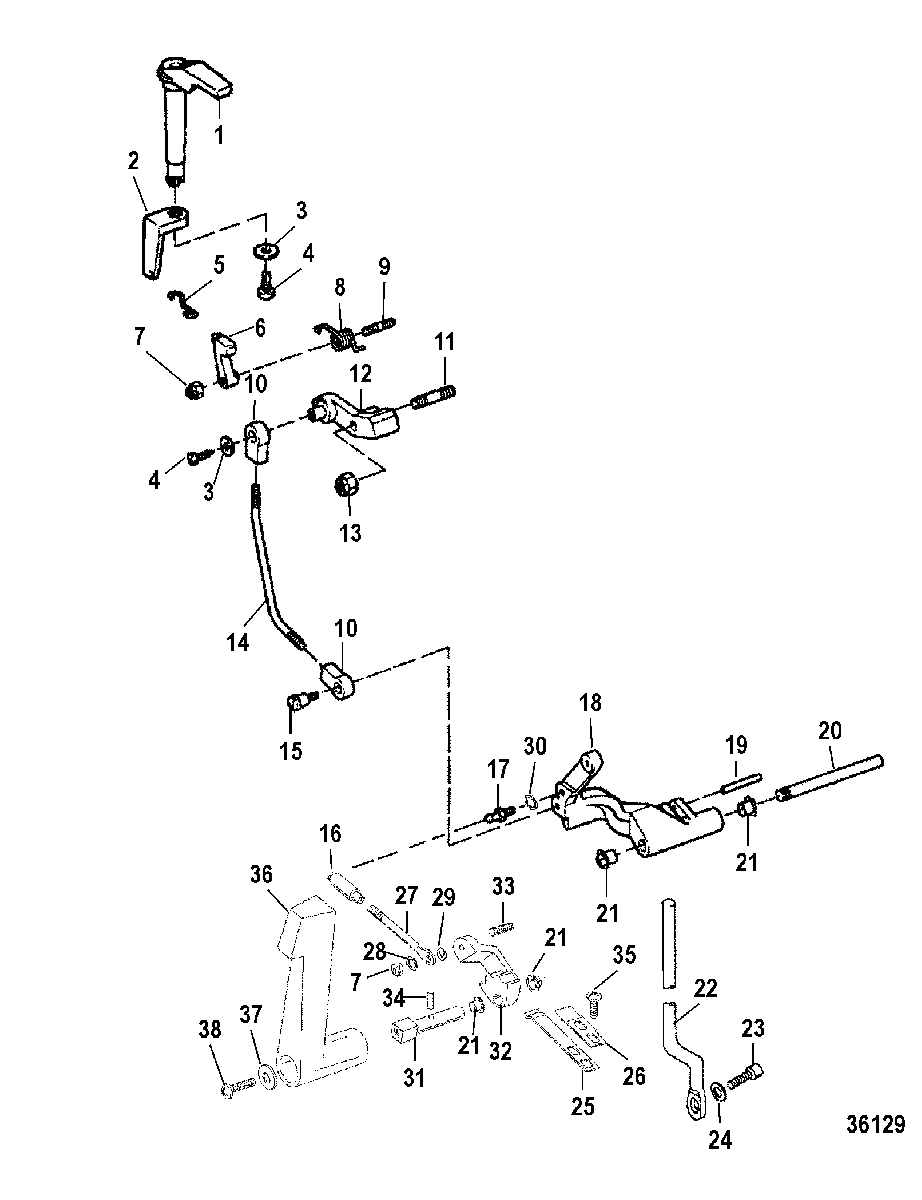

SHIFT LINKAGE для Mercury - 25 H.P. LIGHTNING (3 CYL.) (INTL. ONLY) 0E288000 & Up

  • №
    Артикул
    Название
  • 1
    F681490 STOP, Starter Pulley Interlock
    STOP, Starter Pulley Interlock
  • 2
    F681003-1 ARM, Starter Interlock
    ARM, Starter Interlock
  • 3
    12-F8143 WASHER
    WASHER
  • 4
    10-48408 SCREW, (#10-16 x .500)
    SCREW, (#10-16 x .500)
  • 5
    F681263-1 LINK, Starter Interlock
    LINK, Starter Interlock
  • 6
    F681742 LEVER, Intermediate Interlock
    LEVER, Intermediate Interlock
  • 7
    11-20110 NUT, (#10-32)
    NUT, (#10-32)
  • 8
    24-F681424 SPRING, Interlock Lever
    SPRING, Interlock Lever
  • 9
    16-F681134 STUD, Interlock Lever
    STUD, Interlock Lever
  • 10
    816514 BEARING, Spark Control
    BEARING, Spark Control
  • 11
    16-826590 STUD, (.250-20 x 1.690) (.250-20 X 1.690)
    STUD, (.250-20 x 1.690) (.250-20 X 1.690)
  • 12
    824357 LEVER, Neutral Speed Interlock
    LEVER, Neutral Speed Interlock
  • 13
    11-814101 NUT, (.250-20) Stainless Steel
    NUT, (.250-20) Stainless Steel
  • 14
    819159 ROD, Interlock
    ROD, Interlock
  • 15
    10-819625 SCREW
    SCREW
  • 16
    F286685 CONNECTOR, Gear Shift Rod
    CONNECTOR, Gear Shift Rod
  • 17
    16-F98273 STUD
    STUD
  • 18
    855621T LEVER, Gear Shift
    LEVER, Gear Shift
  • 19
    17-25319 PIN, (.125 x 0.75 Inches)
    PIN, (.125 x 0.75 Inches)
  • 20
    F286871T PIN, Gear Shift Lever
    PIN, Gear Shift Lever
  • 21
    23-26841 BUSHING
    BUSHING
  • 22
    8193781 ROD, Upper Gear Shift
    ROD, Upper Gear Shift
  • 23
    10-F1976 SCREW, (#10-24 x .500)
    SCREW, (#10-24 x .500)
  • 24
    12-89302 WASHER, (.203 x .406 x .040)
    WASHER, (.203 x .406 x .040)
  • 25
    24-39627 SPRING
    SPRING
  • 26
    824994 SPRING, Plate
    SPRING, Plate
  • 27
    850388 LINK, Shift Lever
    LINK, Shift Lever
  • 28
    13-F8048 WASHER, Bowed
    WASHER, Bowed
  • 29
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 30
    13-F8058 LOCKWASHER, Internal (#10)
    LOCKWASHER, Internal (#10)
  • 31
    850386 SHAFT, Shift Handle
    SHAFT, Shift Handle
  • 32
    850387A1 LEVER ASSEMBLY, Detent Cam
    LEVER ASSEMBLY, Detent Cam
  • 33
    16-846345 STUD, (#10-32 x .750)
    STUD, (#10-32 x .750)
  • 34
    17-25905 PIN
    PIN
  • 35
    10-42813 SCREW, (#10-32 X .380) (#10-32 X .380)
    SCREW, (#10-32 X .380) (#10-32 X .380)
  • 36
    852545 HANDLE, Shift
    HANDLE, Shift
  • 37
    12-4002314 WASHER
    WASHER
  • 38
    10-15124 SCREW, (#10-32 x .750)
    SCREW, (#10-32 x .750)
  • -
    800-819240A6 POWERHEAD ASSEMBLY
    POWERHEAD ASSEMBLY
