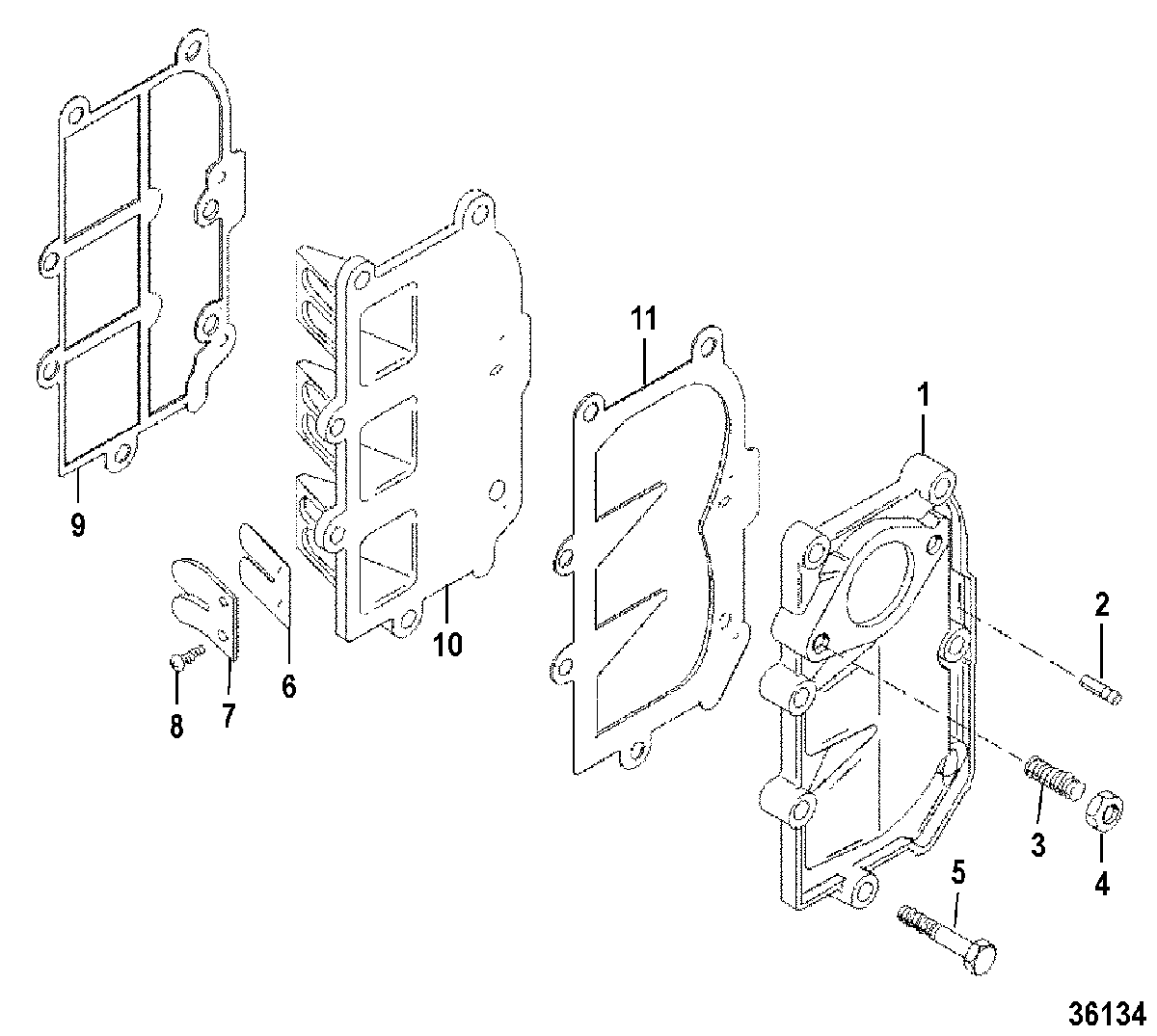

REED PLATE/MANIFOLD ASSEMBLY для Mercury - 25 H.P. LIGHTNING (3 CYL.) (INTL. ONLY) 0E288000 & Up

  • №
    Артикул
    Название
  • 1
    819150A4 MANIFOLD ASSEMBLY, Intake
    MANIFOLD ASSEMBLY, Intake
  • 2
    21-426982 CHECK VALVE
    CHECK VALVE
  • 3
    16-826622 STUD, (.250-20 x .910) (.250-20 X .910) WITH DRI LOK
    STUD, (.250-20 x .910) (.250-20 X .910) WITH DRI LOK
  • 4
    11-20890 NUT, (.250-20), CARBURETOR MOUNT
    NUT, (.250-20), CARBURETOR MOUNT
  • 5
    10-819110125 SCREW, (.250-20 X 1.250) (.250-20 X 1.250)
    SCREW, (.250-20 X 1.250) (.250-20 X 1.250)
  • 6
    34-827308 REED
    REED
  • 7
    34-827307 STOP, Reed
    STOP, Reed
  • 8
    10-819074 SCREW WITH LOCKWASHER, (#6-32 X .312) (#6-32 X .312)
    SCREW WITH LOCKWASHER, (#6-32 X .312) (#6-32 X .312)
  • 9
    27-819142 GASKET, Reed Plate
    GASKET, Reed Plate
  • 10
    819153T PLATE, Reed
    PLATE, Reed
  • 11
    27-819141 GASKET, Intake Manifold
    GASKET, Intake Manifold
  • -
    27-809516A1 GASKET SET, Powerhead
    GASKET SET, Powerhead
  • -
    800-819240A6 POWERHEAD ASSEMBLY
    POWERHEAD ASSEMBLY
