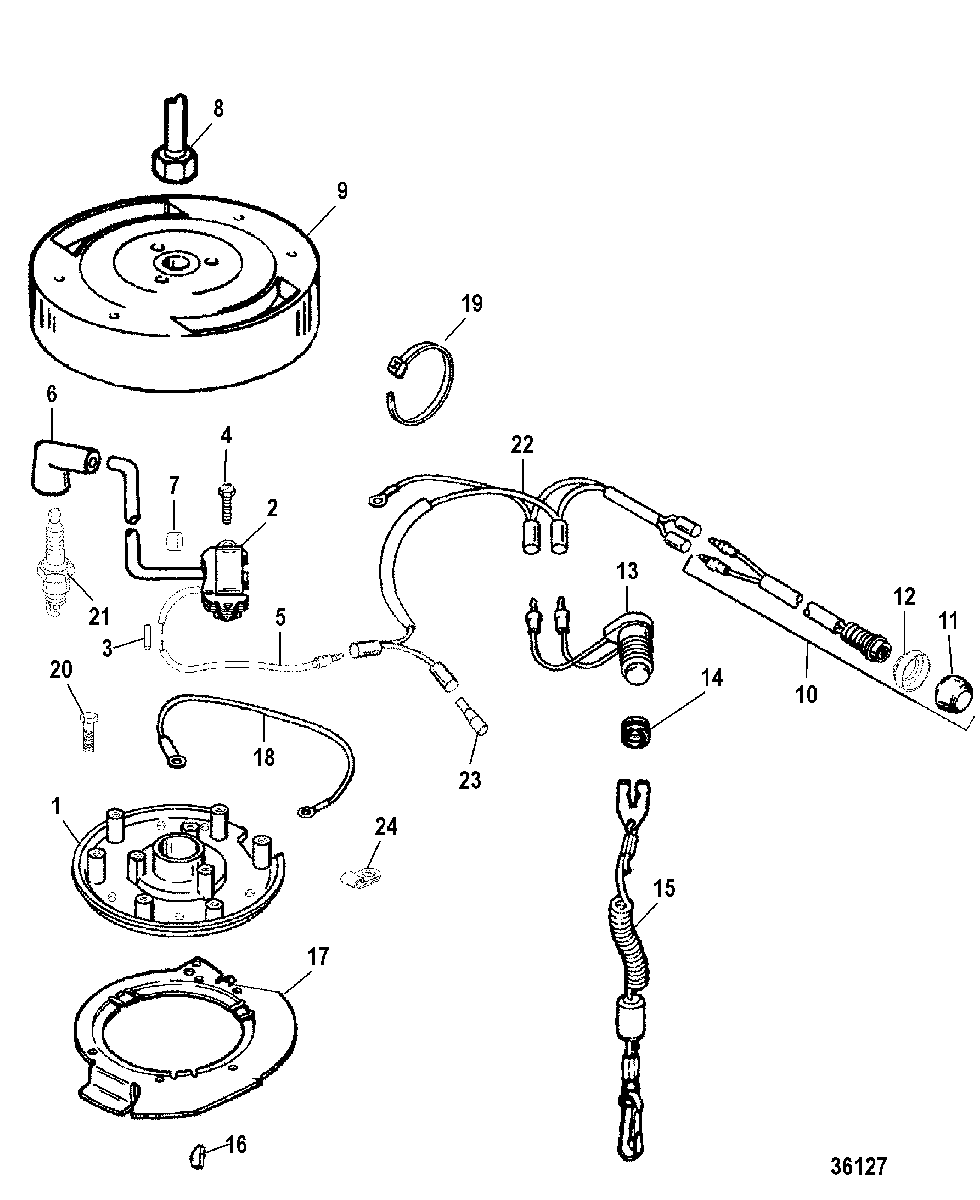

IGNITION SYSTEM для Mercury - 25 H.P. LIGHTNING (3 CYL.) (INTL. ONLY) 0E288000 & Up

  • №
    Артикул
    Название
  • -
    819155A2 STATOR ASSEMBLY (COMPLETE)
    STATOR ASSEMBLY (COMPLETE)
  • 1
    300-819155T PLATE, Stator
    PLATE, Stator
  • 2
    300-850899T1 MODULE KIT, Ignition
    MODULE KIT, Ignition
  • 3
    86-830865 CONNECTOR (SERVICE ONLY)
    CONNECTOR (SERVICE ONLY)
  • 4
    10-824353 SCREW (#8-32 X .750)-IGN MODULE MOUNT
    SCREW (#8-32 X .750)-IGN MODULE MOUNT
  • 5
    84-12479A60 CABLE ASSEMBLY, Modules To Harness
    CABLE ASSEMBLY, Modules To Harness
  • 6
    85-63709A1 BOOT/TERMINAL KIT
    BOOT/TERMINAL KIT
  • 7
    20117A1 MARKER SET, Ignition Cables (#1) (#2) (#3)
    MARKER SET, Ignition Cables (#1) (#2) (#3)
  • 8
    F681091 NUT (SPECIAL)-FLYWHEEL
    NUT (SPECIAL)-FLYWHEEL
  • 9
    200-824380T4 FLYWHEEL
    FLYWHEEL
  • 10
    87-824440A14 SWITCH ASSEMBLY, Stop
    SWITCH ASSEMBLY, Stop
  • 11
    824466A3 COVER ASSEMBLY, Stop Switch
    COVER ASSEMBLY, Stop Switch
  • 12
    824915 BEZEL, Stop Switch Cover
    BEZEL, Stop Switch Cover
  • 13
    87-826214A1 SWITCH ASSEMBLY, Emergency Stop
    SWITCH ASSEMBLY, Emergency Stop
  • 14
    11-855594 NUT (SPECIAL)-STOP SWITCH SLEEVE
    NUT (SPECIAL)-STOP SWITCH SLEEVE
  • 15
    879104 LANYARD ASSEMBLY
    LANYARD ASSEMBLY
  • 16
    28-F458498-1 KEY, Crankshaft/Flywheel
    KEY, Crankshaft/Flywheel
  • 17
    8278961 CAM, Throttle
    CAM, Throttle
  • 18
    84-821375A44 CABLE ASSEMBLY, Ground
    CABLE ASSEMBLY, Ground
  • 19
    56762 TIE STRAP, (4.00 Inches)
    TIE STRAP, (4.00 Inches)
  • 19
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 20
    10-824358 SCREW, (#10-24 x .500) (#10-24 X .500)-STATOR PLATE
    SCREW, (#10-24 x .500) (#10-24 X .500)-STATOR PLATE
  • 21
    33-896323 SPARK PLUG (CHAMPION # L82C)
    SPARK PLUG (CHAMPION # L82C)
  • 21
    33-896329874 SPARK PLUG (RFI) (CHAMPION # RL82C)
    SPARK PLUG (RFI) (CHAMPION # RL82C)
  • 22
    84-79138A93 HARNESS ASSEMBLY, Engine Stop
    HARNESS ASSEMBLY, Engine Stop
  • 23
    13541 PLUG, Male
    PLUG, Male
  • 24
    54-831275 CLAMP
    CLAMP
