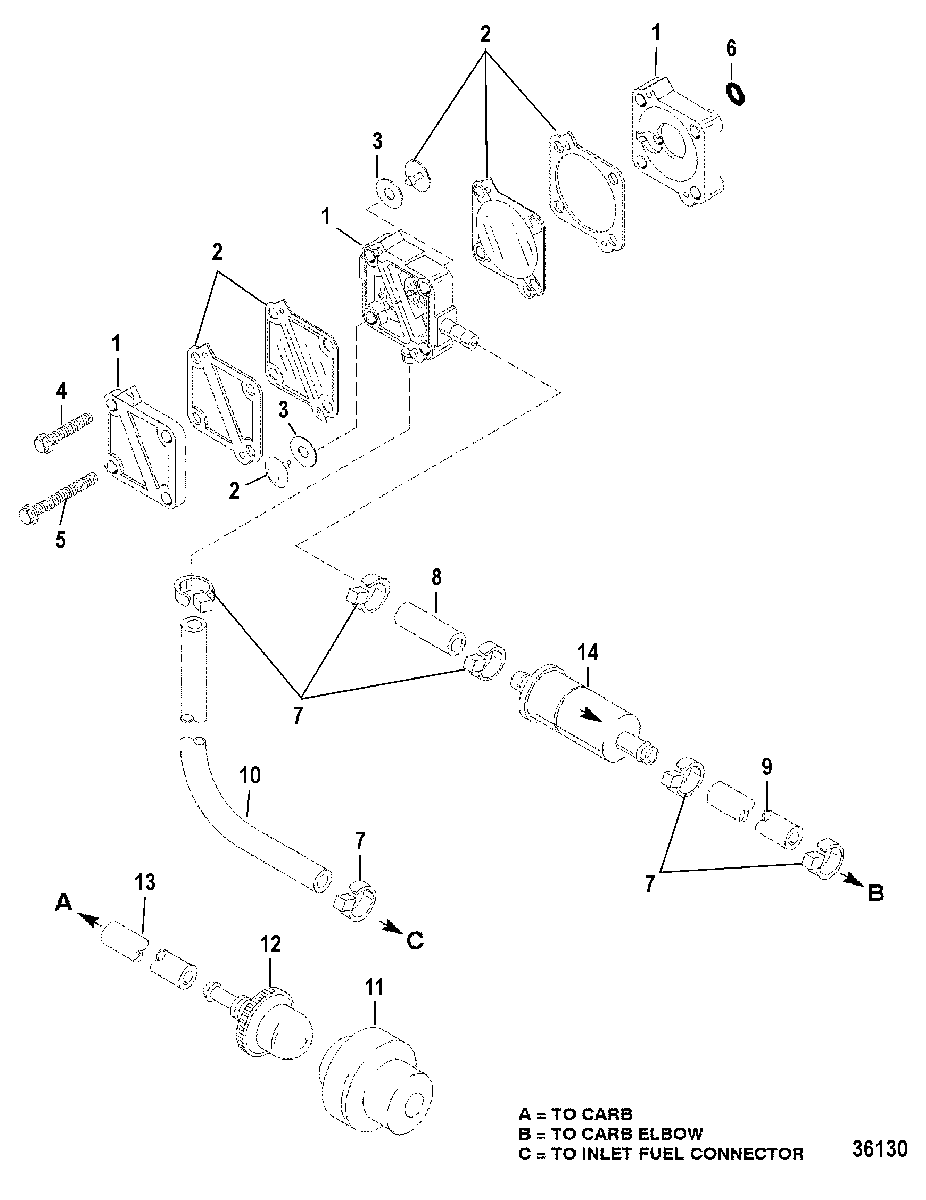

FUEL SYSTEM для Mercury - 25 H.P. LIGHTNING (3 CYL.) (INTL. ONLY) 0E288000 & Up

  • №
    Артикул
    Название
  • 1
    8192131 PUMP ASSEMBLY, Fuel
    PUMP ASSEMBLY, Fuel
  • 2
    27-820748A1 GASKET/DIAPHRAGM KIT
    GASKET/DIAPHRAGM KIT
  • 3
    NSS NOT SOLD SEPARATE, Washer
    NOT SOLD SEPARATE, Washer
  • 4
    10-820749 SCREW (#10-24 X 1.250)
    SCREW (#10-24 X 1.250)
  • 5
    10-819499 SCREW (#10-24 X 1.625)
    SCREW (#10-24 X 1.625)
  • 6
    25-38933 O-RING
    O-RING
  • 7
    56762 TIE STRAP, (4.00 Inches)
    TIE STRAP, (4.00 Inches)
  • 8
    32-819398T HOSE (18.00 IN. BULK) (CUT 1.625 IN.)
    HOSE (18.00 IN. BULK) (CUT 1.625 IN.)
  • 9
    32-819398T HOSE (18.00 IN. BULK) (CUT 3.125 IN.)
    HOSE (18.00 IN. BULK) (CUT 3.125 IN.)
  • 10
    32-819398T HOSE (18.00 IN. BULK) (CUT 10.500 IN.)
    HOSE (18.00 IN. BULK) (CUT 10.500 IN.)
  • 11
    851934 COVER, Primer Bulb
    COVER, Primer Bulb
  • 12
    F681046 BULB, Primer
    BULB, Primer
  • 13
    32-819398T HOSE (18.00 IN. BULK) (CUT 11.500 IN.)
    HOSE (18.00 IN. BULK) (CUT 11.500 IN.)
  • 14
    35-816296Q03 FILTER, Fuel
    FILTER, Fuel
  • -
    27-809516A1 GASKET SET, Powerhead
    GASKET SET, Powerhead
  • -
    800-819240A6 POWERHEAD ASSEMBLY
    POWERHEAD ASSEMBLY
