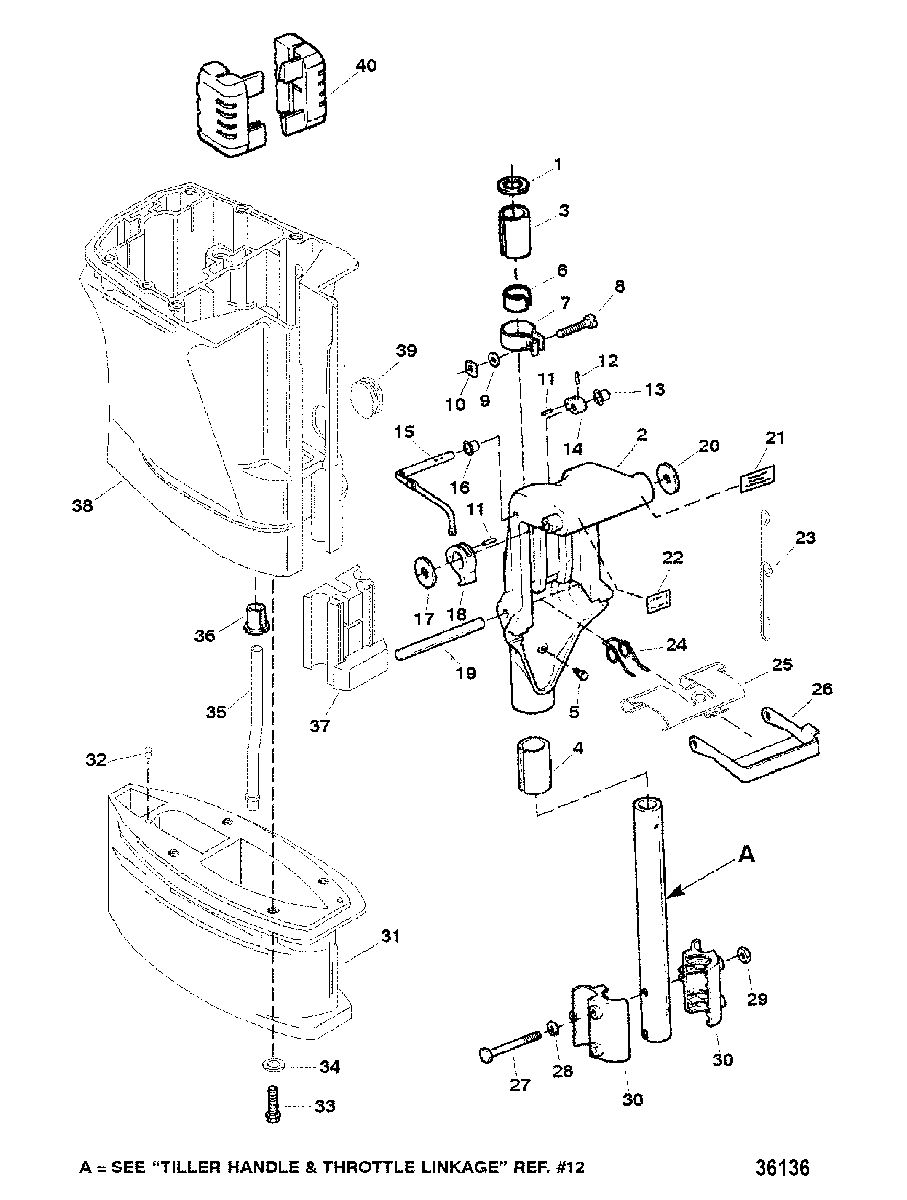

SWIVEL BRACKET AND DRIVESHAFT HOUSING для Mercury - 25 H.P. LIGHTNING (3 CYL.) (INTL. ONLY) 0E268781 THRU 0E287999

  • №
    Артикул
    Название
  • 1
    12-F286011 WASHER, Swivel Bracket
    WASHER, Swivel Bracket
  • 2
    1400-850049A3 SWIVEL BRACKET KIT
    (MERCURY)
    SWIVEL BRACKET KIT
    (MERCURY)
  • 2
    1400-850049A4 SWIVEL BRACKET KIT
    (MARINER)
    SWIVEL BRACKET KIT
    (MARINER)
  • 3
    23-F681169 BEARING (1.125 IN.) (TOP)
    BEARING (1.125 IN.) (TOP)
  • 4
    23-F286169 BEARING (1.750 IN.) (BOTTOM)
    BEARING (1.750 IN.) (BOTTOM)
  • 5
    22-F213274 FITTING
    FITTING
  • 6
    F681631 SHOE, Friction
    SHOE, Friction
  • 7
    54-F286573-1 CLAMP, Steering Friction
    CLAMP, Steering Friction
  • 8
    10-F1820 SCREW, (.250-20 x 1.375)
    SCREW, (.250-20 x 1.375)
  • 9
    12-12038 WASHER
    WASHER
  • 10
    11-F1608 NUT, (.250-20) (.250-20)
    NUT, (.250-20) (.250-20)
  • 11
    17-F1794 PIN, Spring
    PIN, Spring
  • 12
    17-F8538 PIN, Spring
    PIN, Spring
  • 13
    23-26856 BUSHING
    BUSHING
  • 14
    833156 LEVER, Reverse Lock
    LEVER, Reverse Lock
  • 15
    820095A2 LEVER ASSEMBLY, Reverse Lock Intermediate
    LEVER ASSEMBLY, Reverse Lock Intermediate
  • 16
    23-F536813 BUSHING
    BUSHING
  • 17
    12-F2037 WASHER
    WASHER
  • 18
    F286827 LEVER, Reverse Lock Release
    LEVER, Reverse Lock Release
  • 19
    17-F1806 PIN, Groove
    PIN, Groove
  • 20
    12-F2037 WASHER
    WASHER
  • 21
    37-8180291 DECAL, Fuel Mix
    DECAL, Fuel Mix
  • 22
    37-8302531 DECAL, Tilt Release
    DECAL, Tilt Release
  • 23
    852528 LINK, Reverse Lock Lever
    LINK, Reverse Lock Lever
  • 24
    24-F286300 SPRING, Reverse Lock
    SPRING, Reverse Lock
  • 25
    850259 LOCK, Reverse
    LOCK, Reverse
  • 26
    8301111 BRACKET, Shallow Water Drive
    BRACKET, Shallow Water Drive
  • 27
    FA1844 SCREW KIT, (.250-20 x 2.375) (.250-20 X 2.375)
    SCREW KIT, (.250-20 x 2.375) (.250-20 X 2.375)
  • 28
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 29
    11-64015 NUT, (.250-20)
    NUT, (.250-20)
  • 30
    819320T1 BRACKET, Shock Mount Lower
    (MERCURY)
    BRACKET, Shock Mount Lower
    (MERCURY)
  • 30
    819320T2 BRACKET, Shock Mount Lower
    (MARINER)
    BRACKET, Shock Mount Lower
    (MARINER)
  • 31
    826361T2 SPACER ASSEMBLY
    (20 IN. LONG MODELS) (MERCURY)
    SPACER ASSEMBLY
    (20 IN. LONG MODELS) (MERCURY)
  • 31
    826361T3 SPACER ASSEMBLY
    (20 IN. LONG MODELS) (MARINER)
    SPACER ASSEMBLY
    (20 IN. LONG MODELS) (MARINER)
  • 32
    17-8M0084726 PIN, Dowel (.187 x .530)
    (20 IN. LONG MODELS)
    PIN, Dowel (.187 x .530)
    (20 IN. LONG MODELS)
  • 33
    10-65210 SCREW, (.375-16 x 1.00)
    (20 IN. MODELS)
    SCREW, (.375-16 x 1.00)
    (20 IN. MODELS)
  • 34
    12-856774 WASHER, (.406 x .750 x .104)
    (20 IN. LONG MODELS)
    WASHER, (.406 x .750 x .104)
    (20 IN. LONG MODELS)
  • 35
    32-819149 LINE, Water Inlet
    (15 IN. SHORT MODELS)
    LINE, Water Inlet
    (15 IN. SHORT MODELS)
  • 35
    32-8191491 LINE, Water Inlet
    (20 IN. LONG MODELS)
    LINE, Water Inlet
    (20 IN. LONG MODELS)
  • 36
    F286914-1 SLEEVE, Water Inlet Line
    SLEEVE, Water Inlet Line
  • 37
    8193192 SHOCK MOUNT, Lower
    SHOCK MOUNT, Lower
  • 38
    1500-819215T3 HOUSING ASSEMBLY, Driveshaft
    (MERCURY)
    HOUSING ASSEMBLY, Driveshaft
    (MERCURY)
  • 38
    1500-819215T4 HOUSING ASSEMBLY, Driveshaft
    (MARINER)
    HOUSING ASSEMBLY, Driveshaft
    (MARINER)
  • 39
    25-F46899-1 COVER
    COVER
  • 40
    F517347 SHOCK MOUNT, Upper
    SHOCK MOUNT, Upper
