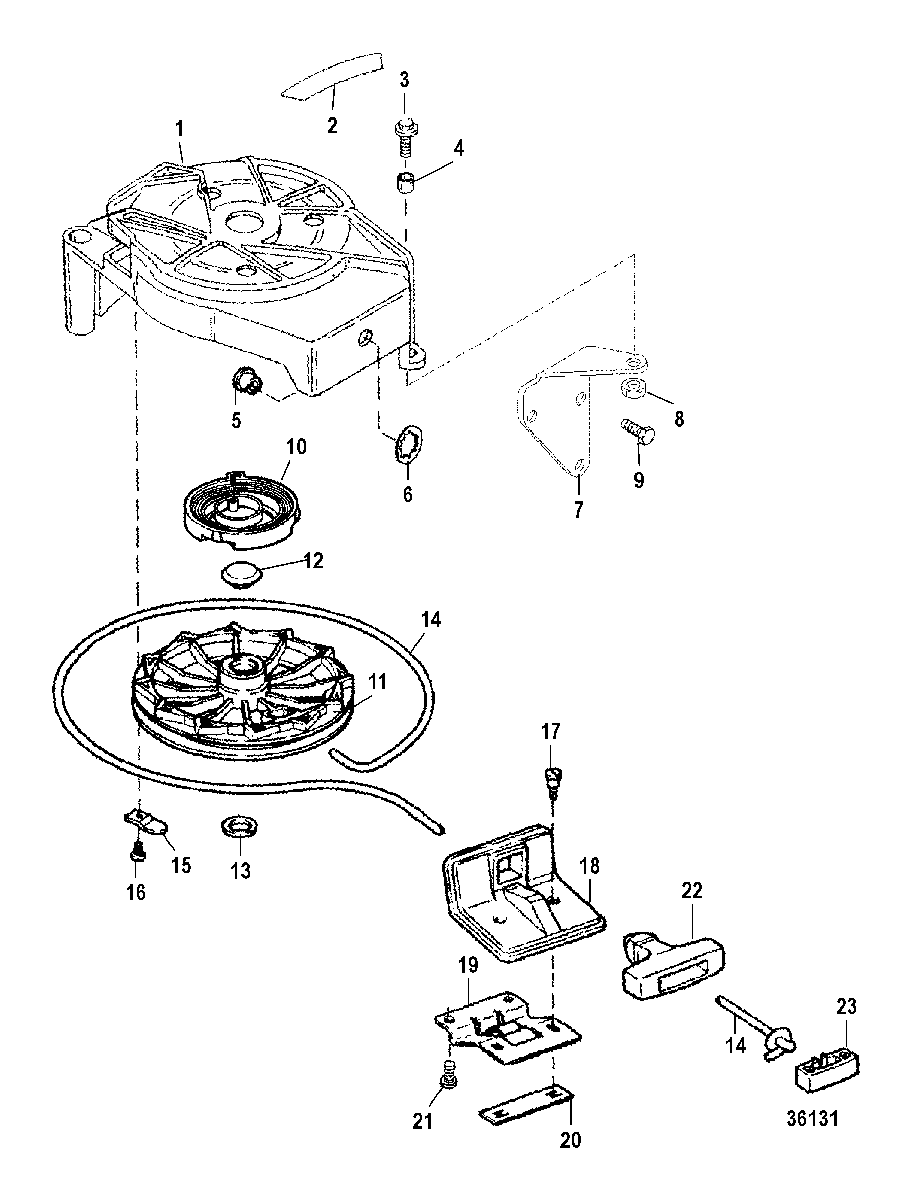

STARTER REWIND COMPONENTS для Mercury - 25 H.P. LIGHTNING (3 CYL.) (INTL. ONLY) 0E268781 THRU 0E287999

  • №
    Артикул
    Название
  • 1
    F6814081 HOUSING, Starter
    HOUSING, Starter
  • 2
    37-825149A1 DECAL KIT, Shift to Neutral
    DECAL KIT, Shift to Neutral
  • 3
    10-90192 SCREW, (.250-20 x .750) Stainless Steel
    SCREW, (.250-20 x .750) Stainless Steel
  • 4
    23-F681405T INSERT, Starter Housing
    INSERT, Starter Housing
  • 5
    F681428 INSERT, Starter Rope
    INSERT, Starter Rope
  • 6
    53-818853 RING, Retaining
    RING, Retaining
  • 7
    819245T1 BRACKET
    BRACKET
  • 8
    11-814101 NUT, (.250-20) Stainless Steel
    NUT, (.250-20) Stainless Steel
  • 9
    10-98254 SCREW, (.250-20 x .620)
    SCREW, (.250-20 x .620)
  • 10
    24-F681970 SPRING, Starter Rewind
    SPRING, Starter Rewind
  • 11
    42034A2 PULLEY ASSEMBLY, Starter Rewind
    PULLEY ASSEMBLY, Starter Rewind
  • 12
    19-817362 CAP
    CAP
  • 13
    26-124941 SEAL, Pulley Bearing
    SEAL, Pulley Bearing
  • 14
    50-12066T03 ROPE (64.00/67.00 IN.)
    ROPE (64.00/67.00 IN.)
  • 15
    F681592 RETAINER, Starter Pulley
    RETAINER, Starter Pulley
  • 16
    10-48408 SCREW, (#10-16 x .500)
    SCREW, (#10-16 x .500)
  • 17
    10-819625 SCREW
    SCREW
  • 18
    FA681630T SUPPORT ASSEMBLY, Handle
    SUPPORT ASSEMBLY, Handle
  • 19
    8302821 PLATE, Handle Support
    PLATE, Handle Support
  • 20
    F6818741 FASTENER, Handle Support Plate
    FASTENER, Handle Support Plate
  • 21
    10-F2210 SCREW, (.250-14 x .500)
    SCREW, (.250-14 x .500)
  • 22
    F681132 HANDLE, Rope
    HANDLE, Rope
  • 23
    F681817 RETAINER, Rope Handle
    RETAINER, Rope Handle
  • -
    800-819240A6 POWERHEAD ASSEMBLY
    POWERHEAD ASSEMBLY
