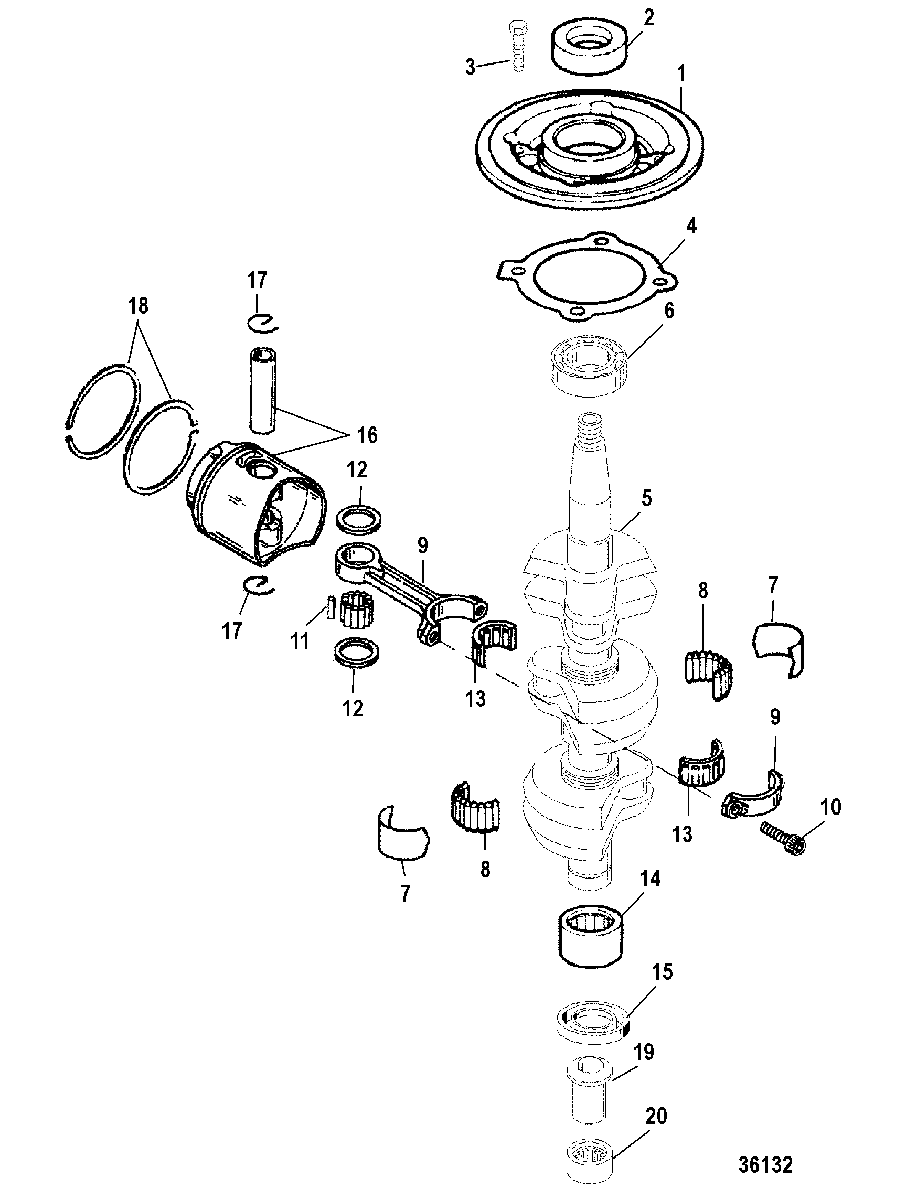

CRANKSHAFT AND PISTON для Mercury - 25 H.P. LIGHTNING (3 CYL.) (INTL. ONLY) 0E268781 THRU 0E287999

  • №
    Артикул
    Название
  • 1
    1100-817753A4 CAGE ASSEMBLY, Crankshaft
    CAGE ASSEMBLY, Crankshaft
  • 2
    26-66302 SEAL, Oil
    SEAL, Oil
  • 3
    10-F1914 SCREW, (.250-20 x .750)
    SCREW, (.250-20 x .750)
  • 4
    27-F286277 GASKET, Crankshaft Bearing Cage
    GASKET, Crankshaft Bearing Cage
  • 5
    400-819044A3 CRANKSHAFT ASSEMBLY
    CRANKSHAFT ASSEMBLY
  • 6
    30-F286028 BEARING, Ball
    BEARING, Ball
  • 7
    31-819239 LINER, Center Main Rollers
    LINER, Center Main Rollers
  • 8
    29-819238 ROLLERS (16 PER STRIP)
    ROLLERS (16 PER STRIP)
  • 9
    637-8477A2 CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 10
    10-823460 SCREW, (M5 x 16)
    SCREW, (M5 x 16)
  • 11
    29-42186 BEARING, Needle
    BEARING, Needle
  • 12
    12-8M0012297 BEARING, Thrust
    BEARING, Thrust
  • 13
    31-42076A1 BEARING ASSEMBLY, Roller
    BEARING ASSEMBLY, Roller
  • 14
    31-8191291 BEARING, Main
    BEARING, Main
  • 15
    26-819214 SEAL, Crankshaft Lower
    SEAL, Crankshaft Lower
  • 16
    784-9747A8 PISTON KIT (STANDARD)
    PISTON KIT (STANDARD)
  • 17
    40-422021 LOCK RING
    LOCK RING
  • 18
    39-18213A1 RING SET (2 RINGS) (STANDARD)
    RING SET (2 RINGS) (STANDARD)
  • 19
    26-819293 SEAL, Driveshaft Spline
    SEAL, Driveshaft Spline
  • 20
    8193101 RETAINER, Driveshaft Spline Seal
    RETAINER, Driveshaft Spline Seal
  • -
    27-809516A1 GASKET SET, Powerhead
    GASKET SET, Powerhead
  • -
    800-819240A6 POWERHEAD ASSEMBLY
    POWERHEAD ASSEMBLY
