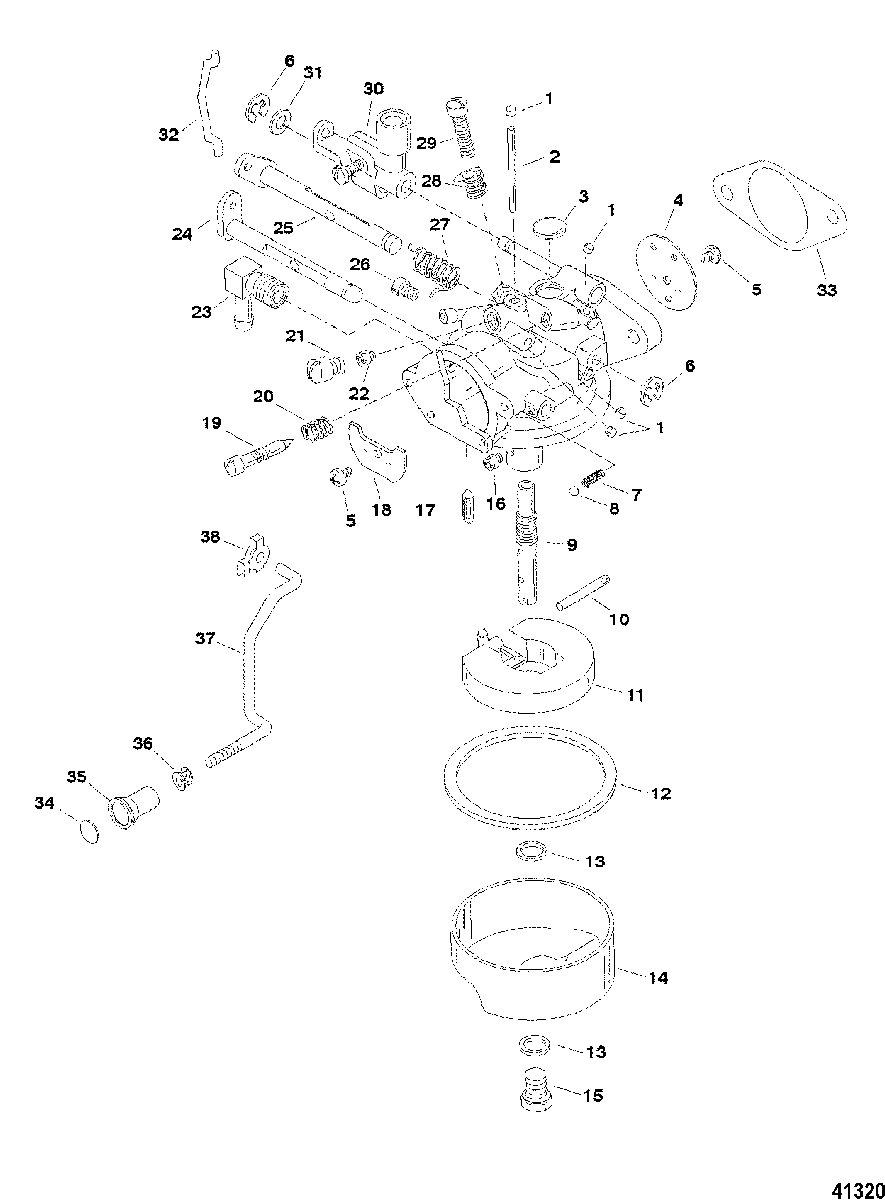

CARBURETOR для Mercury - 25 H.P. LIGHTNING (3 CYL.) (INTL. ONLY) 0E268781 THRU 0E287999

  • №
    Артикул
    Название
  • -
    1300-852551T1 CARBURETOR (FO-3C)
    CARBURETOR (FO-3C)
  • 1
    19-FO10588 PLUG
    PLUG
  • 2
    809447 TUBE
    TUBE
  • 3
    19-FO16128 PLUG
    PLUG
  • 4
    809442 SHUTTER, Throttle
    SHUTTER, Throttle
  • 5
    10-809441 SCREW, Shutters
    SCREW, Shutters
  • 6
    809446 E-RING, Throttle Linkage
    E-RING, Throttle Linkage
  • 7
    FO8805 SPRING, Choke Friction
    SPRING, Choke Friction
  • 8
    FO4784 BALL
    BALL
  • 9
    809624 NOZZLE, Main
    NOZZLE, Main
  • 10
    17-FO13944 PIN
    PIN
  • 11
    891730A01 FLOAT, Fuel Bowl
    FLOAT, Fuel Bowl
  • 12
    27-FO15623 GASKET
    GASKET
  • 13
    27-FO2510 GASKET, Fuel Bowl
    GASKET, Fuel Bowl
  • 14
    FO15366 BOWL, Fuel
    BOWL, Fuel
  • 15
    1399-5128 SCREW
    SCREW
  • 16
    809448 JET, Main (.058) (0 - 2500 FT.)
    JET, Main (.058) (0 - 2500 FT.)
  • 16
    1399-5213 JET, Main (.056) (2500 - 5000 FT.)
    JET, Main (.056) (2500 - 5000 FT.)
  • 16
    1399-5225 JET, Main (.054) (5000 - 7500 FT.)
    JET, Main (.054) (5000 - 7500 FT.)
  • 16
    1395-6359 JET, (.052) (7500 - 10000 FT.)
    JET, (.052) (7500 - 10000 FT.)
  • 17
    F10265 NEEDLE, Inlet
    (NOTE: DO NOT REMOVE INLET SEAT)
    NEEDLE, Inlet
    (NOTE: DO NOT REMOVE INLET SEAT)
  • 18
    F10344 SHUTTER, Choke
    SHUTTER, Choke
  • 19
    F10268 SCREW
    SCREW
  • 20
    24-27160 SPRING
    SPRING
  • 21
    F10275 SCREW
    SCREW
  • 22
    809625 JET (.046)-THROTTLE
    JET (.046)-THROTTLE
  • 23
    854005 ELBOW, Fuel
    ELBOW, Fuel
  • 24
    809440 SHAFT AND LEVER, Choke
    SHAFT AND LEVER, Choke
  • 25
    809439 SHAFT AND LEVER, Throttle
    SHAFT AND LEVER, Throttle
  • 26
    1399-5225 JET, Main (.054) (IDLE AIR BLEED)
    JET, Main (.054) (IDLE AIR BLEED)
  • 27
    24-F10350 SPRING, Throttle Shaft
    SPRING, Throttle Shaft
  • 28
    809445 SPRING, Idle Speed
    SPRING, Idle Speed
  • 29
    809444 SCREW, Idle Speed
    SCREW, Idle Speed
  • 30
    F10290 LINKAGE, Throttle
    LINKAGE, Throttle
  • 31
    F10242 WASHER
    WASHER
  • 32
    809443 WIRE, Throttle Shaft
    WIRE, Throttle Shaft
  • 33
    27-F715906 GASKET, Carburetor Mount
    GASKET, Carburetor Mount
  • 34
    F681677 INSERT, Choke Rod
    INSERT, Choke Rod
  • 35
    F286547 KNOB, Choke
    KNOB, Choke
  • 36
    23-F197319 BUSHING
    BUSHING
  • 37
    819154 ROD, Choke
    ROD, Choke
  • 38
    830569 RETAINER, Choke Rod
    RETAINER, Choke Rod
  • -
    FK10352 GASKET SET, Carburetor
    GASKET SET, Carburetor
  • -
    809449A1 REPAIR KIT, Carburetor
    REPAIR KIT, Carburetor
  • -
    27-809516A1 GASKET SET, Powerhead
    GASKET SET, Powerhead
  • -
    800-819240A6 POWERHEAD ASSEMBLY
    POWERHEAD ASSEMBLY
