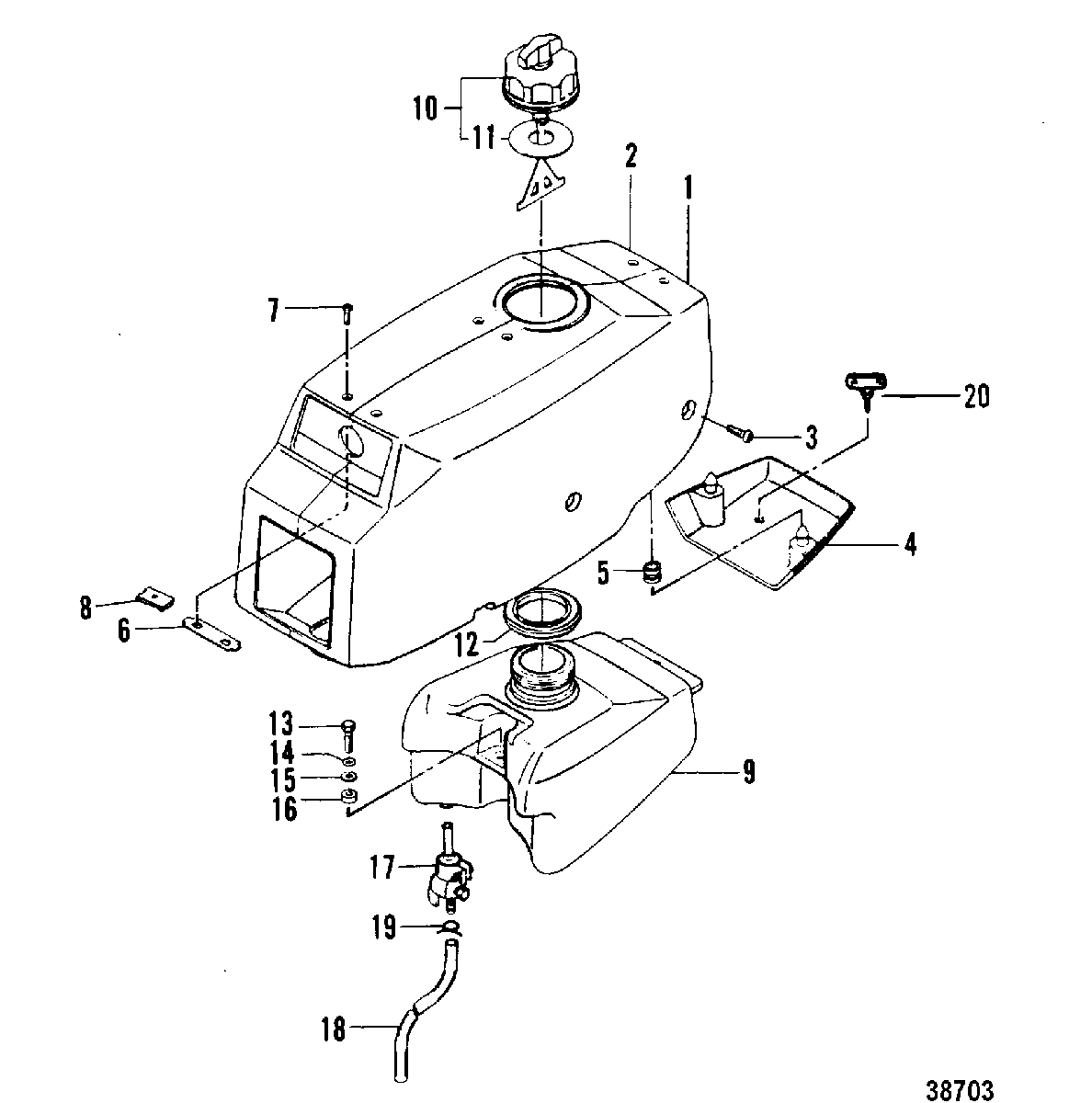

TOP COWL AND FUEL TANK для Mercury - 2.2M 8075603 & Up

  • №
    Артикул
    Название
  • 1
    2189-9161 TOP COWL ASSEMBLY, PORT
    TOP COWL ASSEMBLY, PORT
  • 2
    2189-9185 TOP COWL ASSEMBLY, STARBOARD
    TOP COWL ASSEMBLY, STARBOARD
  • 3
    10-16827 SCREW, TOP COWL
    SCREW, TOP COWL
  • 4
    95281 COVER, TOP COWL
    COVER, TOP COWL
  • 5
    25-95387 GROMMET
    GROMMET
  • 6
    95280 PLATE, TOP COWL
    PLATE, TOP COWL
  • 7
    10-8M0038337 BOLT, PLATE TO TOP COWL
    BOLT, PLATE TO TOP COWL
  • 8
    11-95385 NUT, PLATE SCREW
    NUT, PLATE SCREW
  • 9
    1200-8M0073609 TANK, Fuel
    TANK, Fuel
  • 10
    36-8M0126977 CAP ASSEMBLY, FUEL TANK
    CAP ASSEMBLY, FUEL TANK
  • 11
    27-8M0065762 GASKET, CAP
    GASKET, CAP
  • 12
    25-815109 SEAL, RUBBER, FUEL TANK
    SEAL, RUBBER, FUEL TANK
  • 13
    10-803858 SCREW, FUEL TANK
    SCREW, FUEL TANK
  • 14
    12-95320 WASHER, FUEL TANK SCREW
    WASHER, FUEL TANK SCREW
  • 15
    12-95392 WASHER, FUEL TANK SCREW
    WASHER, FUEL TANK SCREW
  • 16
    23-95390 SPACER, FUEL TANK SCREW
    SPACER, FUEL TANK SCREW
  • 17
    22-95393 VALVE, FUEL
    VALVE, FUEL
  • 18
    32-8M0057113 LINE, Fuel (250 mm)
    LINE, Fuel (250 mm)
  • 19
    54-95395 CLIP, Stainless Steel, FUEL LINE
    CLIP, Stainless Steel, FUEL LINE
  • 20
    25-95398 GROMMET, COVER
    GROMMET, COVER
