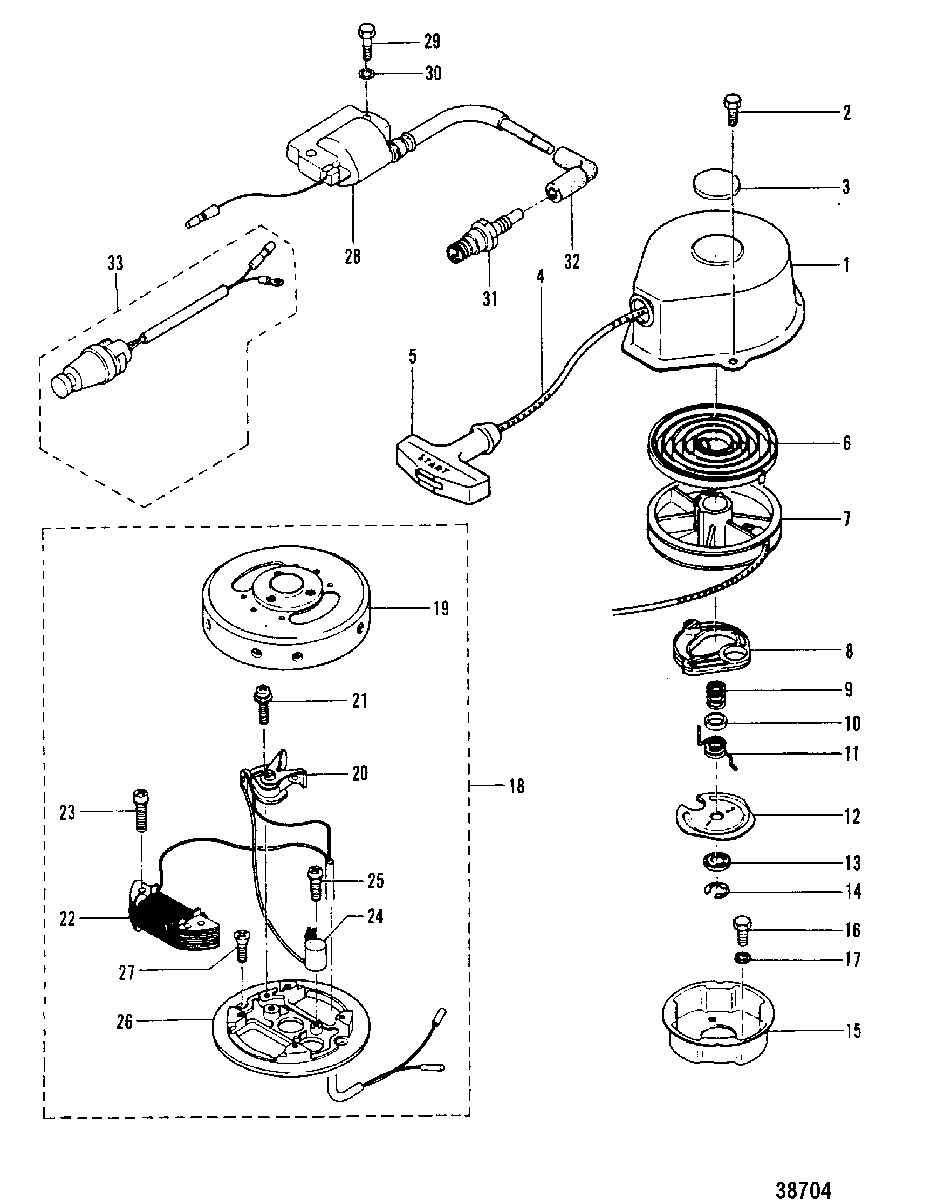

RECOIL STARTER AND IGNITION COMPONENTS для Mercury - 2.2M 8075603 & Up

  • №
    Артикул
    Название
  • 1
    95244 HOUSING, Starter
    HOUSING, Starter
  • 2
    10-95396 BOLT, STARTER HOUSING
    BOLT, STARTER HOUSING
  • 3
    95251 PLUG, STARTER HOUSING
    PLUG, STARTER HOUSING
  • 4
    50-12066Q10 ROPE
    ROPE
  • 5
    95249 HANDLE, Starter, STARTER ROPE
    HANDLE, Starter, STARTER ROPE
  • 6
    24-95284 SPRING, RECOIL
    SPRING, RECOIL
  • 7
    95245 SHEAVE, Starter
    SHEAVE, Starter
  • 8
    95246 RATCHET
    RATCHET
  • 9
    24-95315 SPRING, FRICTION
    SPRING, FRICTION
  • 10
    95247 COVER
    COVER
  • 11
    24-95316 SPRING, RETURN
    SPRING, RETURN
  • 12
    95248 FRICTION PLATE
    FRICTION PLATE
  • 13
    12-95317 THRUST WASHER
    THRUST WASHER
  • 14
    53-95318 E RING
    E RING
  • 15
    95250 PULLEY, STARTER
    PULLEY, STARTER
  • 16
    10-16828 SCREW, STARTER PULLEY
    SCREW, STARTER PULLEY
  • 17
    12-95320 WASHER, PULLEY SCREW
    WASHER, PULLEY SCREW
  • 18
    262-811595 FLYWHEEL MAGNETO ASSEMBLY
    FLYWHEEL MAGNETO ASSEMBLY
  • 19
    262-9184 FLYWHEEL
    FLYWHEEL
  • 20
    95237 BREAKER
    BREAKER
  • 21
    10-95311 SCREW, BREAKER
    SCREW, BREAKER
  • 22
    95241T COIL, Exciter
    COIL, Exciter
  • 23
    10-95313 SCREW, EXCITER COIL
    SCREW, EXCITER COIL
  • 24
    811598 CONDENSER
    CONDENSER
  • 25
    10-16821 SCREW, CONDENSER
    SCREW, CONDENSER
  • 26
    95239 BASE, MAGNETO
    BASE, MAGNETO
  • 27
    10-95310 SCREW, MAGNETO BASE
    SCREW, MAGNETO BASE
  • 28
    95242T COIL, Ignition
    COIL, Ignition
  • 29
    10-95314 SCREW, IGNITION COIL
    SCREW, IGNITION COIL
  • 30
    12-95320 WASHER, IGNITION COIL SCREW
    WASHER, IGNITION COIL SCREW
  • 31
    33-19796 SPARK PLUG (CHAMPION RL-87YC)
    SPARK PLUG (CHAMPION RL-87YC)
  • 32
    85-95282A1 CAP, SPARK PLUG
    CAP, SPARK PLUG
  • 33
    87-823037A04 SWITCH ASSEMBLY, Stop
    SWITCH ASSEMBLY, Stop
