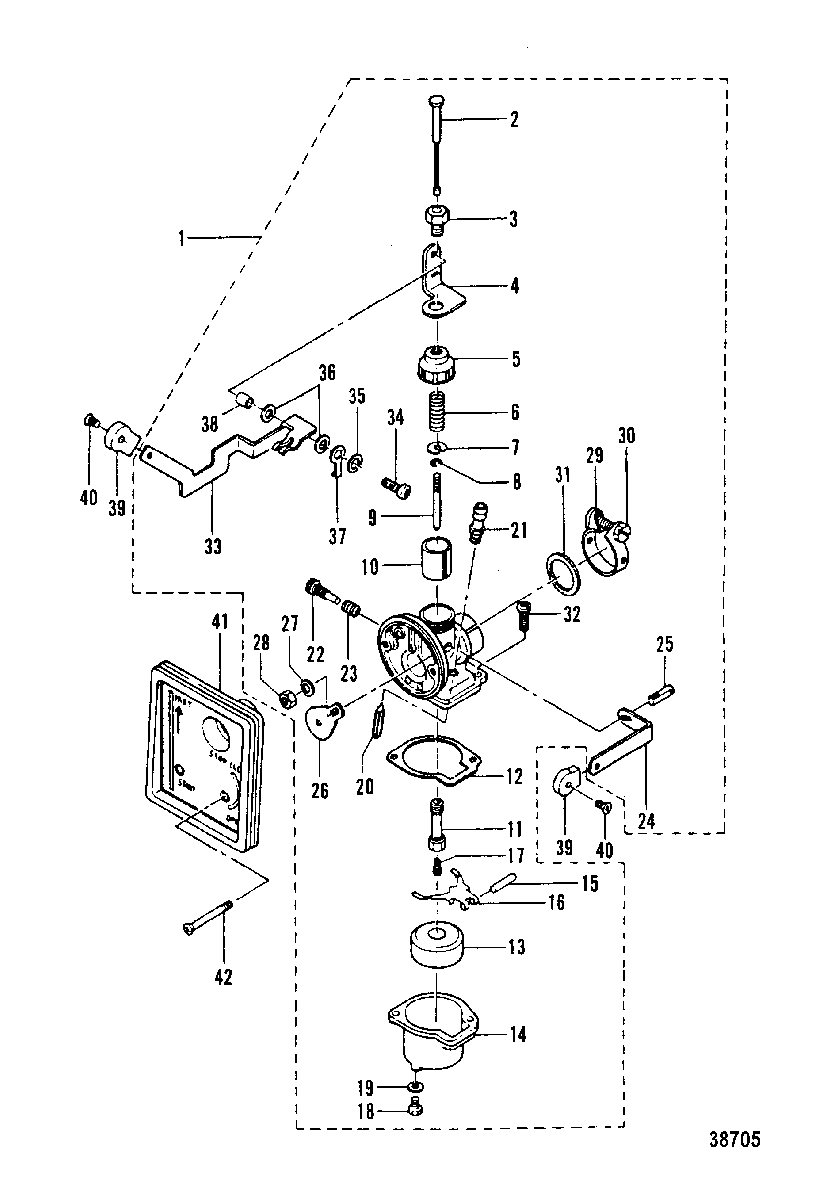

CARBURETOR для Mercury - 2.2M 8075603 & Up

  • №
    Артикул
    Название
  • 1
    3303-9156 CARBURETOR ASSEMBLY
    CARBURETOR ASSEMBLY
  • 2
    95252 WIRE, Throttle
    WIRE, Throttle
  • 3
    10-95321 BOLT, THROTTLE LEVER
    BOLT, THROTTLE LEVER
  • 4
    95253 BRACKET, THROTTLE LEVER
    BRACKET, THROTTLE LEVER
  • 5
    95254 CAP, CARBURETOR
    CAP, CARBURETOR
  • 6
    24-95322 SPRING, THROTTLE VALVE
    SPRING, THROTTLE VALVE
  • 7
    95255 PLATE
    PLATE
  • 8
    53-95323 E RING, JET NEEDLE
    E RING, JET NEEDLE
  • 9
    815126A1 JET NEEDLE
    JET NEEDLE
  • 10
    95257 VALVE, Throttle
    VALVE, Throttle
  • 11
    815126A1 NEEDLE JET
    NEEDLE JET
  • 12
    27-95324 GASKET, FLOAT BOWL
    GASKET, FLOAT BOWL
  • 13
    95259 FLOAT
    FLOAT
  • 14
    95260 FLOAT BOWL
    FLOAT BOWL
  • 15
    17-95327 PIN, Hinge, FLOAT
    PIN, Hinge, FLOAT
  • 16
    95263A1 HINGE, FLOAT
    HINGE, FLOAT
  • 17
    92510M MAIN JET (#96)
    MAIN JET (#96)
  • 18
    10-953251 SCREW, DRAIN
    SCREW, DRAIN
  • 19
    27-95326 GASKET, DRAIN SCREW
    GASKET, DRAIN SCREW
  • 20
    95263A1 VALVE, Needle
    VALVE, Needle
  • 21
    95263A1 SEAT, NEEDLE VALVE
    SEAT, NEEDLE VALVE
  • 22
    10-95328 SCREW, STOP
    SCREW, STOP
  • 23
    24-95329 SPRING, STOP SCREW
    SPRING, STOP SCREW
  • 24
    95266 LEVER, Shutter
    LEVER, Shutter
  • 25
    10-95331 SCREW, SHUTTER LEVER
    SCREW, SHUTTER LEVER
  • 26
    95265 PLATE, Choke
    PLATE, Choke
  • 27
    13-400256 WASHER, CHOKE PLATE
    WASHER, CHOKE PLATE
  • 28
    11-95330 NUT, CHOKE PLATE
    NUT, CHOKE PLATE
  • 29
    54-95332 CLAMP, CLAMP, CARBURETOR
    CLAMP, CLAMP, CARBURETOR
  • 30
    10-95333 SCREW, CLAMP
    SCREW, CLAMP
  • 31
    25-811601 GASKET, CARBURETOR
    GASKET, CARBURETOR
  • 32
    10-95334 SCREW, FLOAT BOWL
    SCREW, FLOAT BOWL
  • 33
    95268 LEVER, Throttle
    LEVER, Throttle
  • 34
    10-95335 SCREW, THROTTLE LEVER
    SCREW, THROTTLE LEVER
  • 35
    13-95238 LOCKWASHER, LEVER SCREW
    LOCKWASHER, LEVER SCREW
  • 36
    27-95336 GASKET, LEVER SCREW
    GASKET, LEVER SCREW
  • 37
    23-952867 BRACKET
    BRACKET
  • 38
    952672 COLLAR, LEVER
    COLLAR, LEVER
  • 39
    95269 KNOB, THROTTLE AND CHOKE LEVER
    KNOB, THROTTLE AND CHOKE LEVER
  • 40
    10-95338 SCREW, KNOB
    SCREW, KNOB
  • 41
    95270 COVER, CARBURETOR
    COVER, CARBURETOR
  • 42
    10-95339 SCREW, CARBURETOR COVER
    SCREW, CARBURETOR COVER
