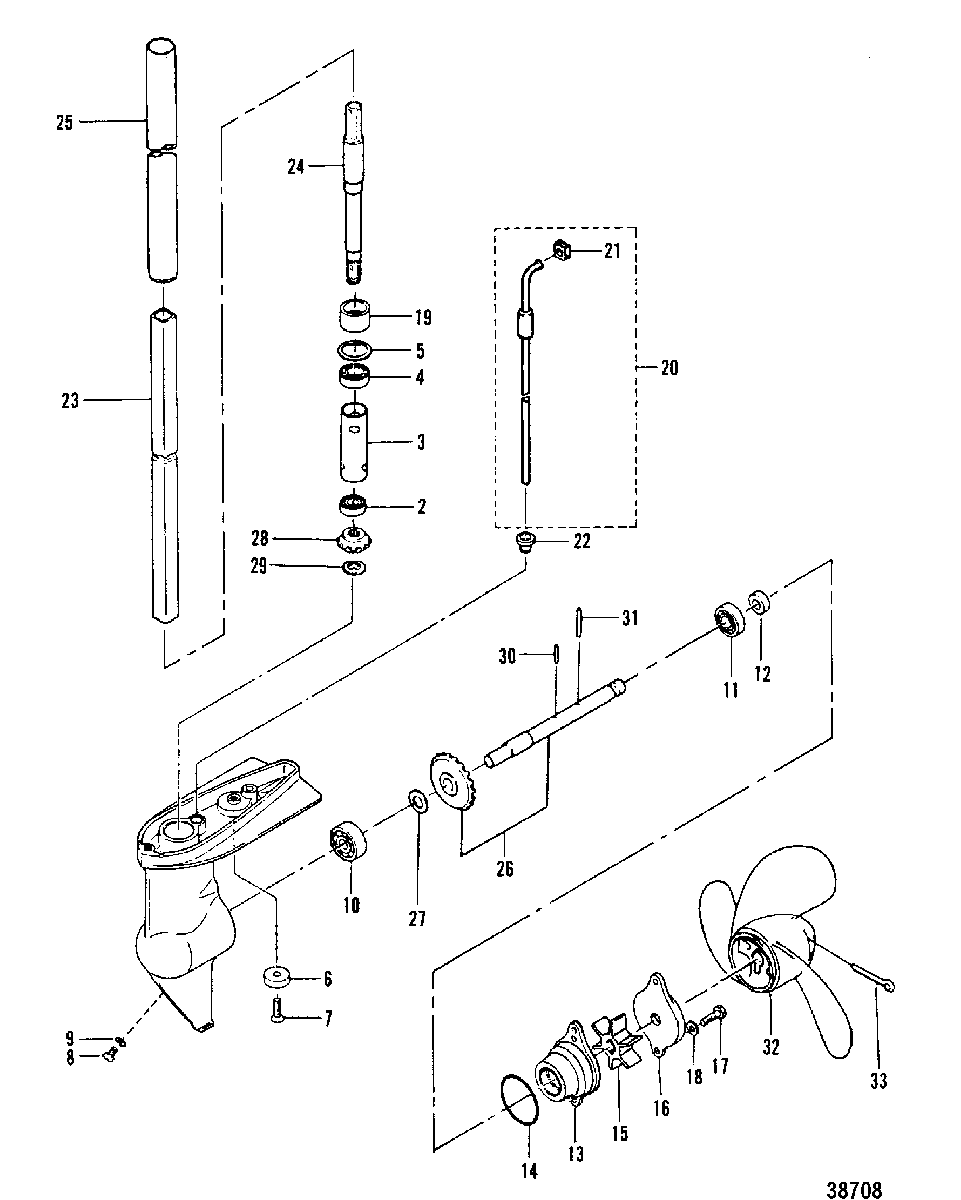

GEAR HOUSING ASSEMBLY COMPLETE для Mercury - 2.2M 8075603 & Up

  • №
    Артикул
    Название
  • 1
    1668-825122T1 GEAR HOUSING ASSEMBLY
    GEAR HOUSING ASSEMBLY
  • 2
    30-95342 BEARING, Ball, DRIVESHAFT (LOWER)
    BEARING, Ball, DRIVESHAFT (LOWER)
  • 3
    23-95343 SPACER
    SPACER
  • 4
    30-95344 BEARING, Ball, DRIVESHAFT (UPPER)
    BEARING, Ball, DRIVESHAFT (UPPER)
  • 5
    53-95345 RING, Snap, BALL BEARING
    RING, Snap, BALL BEARING
  • 6
    97-823913Q ANODE
    ANODE
  • 7
    10-16832 SCREW, ANODE
    SCREW, ANODE
  • 8
    22-953683 PLUG, OIL
    PLUG, OIL
  • 9
    8M0082880 GASKET, OIL PLUG
    GASKET, OIL PLUG
  • 10
    30-95347 BEARING, PROPELLER SHAFT
    BEARING, PROPELLER SHAFT
  • 11
    30-95344 BEARING, Ball, PROPELLER SHAFT
    BEARING, Ball, PROPELLER SHAFT
  • 12
    26-95348 SEAL, Oil, PROPELLER SHAFT
    SEAL, Oil, PROPELLER SHAFT
  • 13
    46-952871 PUMP, Water
    PUMP, Water
  • 14
    25-95288 O-RING, WATER PUMP
    O-RING, WATER PUMP
  • 15
    47-952892 IMPELLER
    IMPELLER
  • 16
    825114 COVER, GEAR HOUSING
    COVER, GEAR HOUSING
  • 17
    95302 SCREW, COVER
    SCREW, COVER
  • 18
    12-16826 WASHER, COVER SCREW
    WASHER, COVER SCREW
  • 19
    26-95350 SEAL, Oil, DRIVESHAFT
    SEAL, Oil, DRIVESHAFT
  • 20
    32-95359 TUBE ASSEMBLY, Water
    TUBE ASSEMBLY, Water
  • 21
    25-953601 GROMMET, WATER TUBE (UPPER)
    GROMMET, WATER TUBE (UPPER)
  • 22
    23-95361 BUSHING, WATERTUBE (LOWER)
    BUSHING, WATERTUBE (LOWER)
  • 23
    45-95290 DRIVESHAFT (UPPER)
    DRIVESHAFT (UPPER)
  • 24
    45-95369 DRIVESHAFT (LOWER)
    DRIVESHAFT (LOWER)
  • 25
    95277 PIPE, DRIVESHAFT
    PIPE, DRIVESHAFT
  • 26
    44-95291A1 PROPELLER SHAFT (WITH BEVEL GEAR)
    PROPELLER SHAFT (WITH BEVEL GEAR)
  • 27
    15-811647A1 SHIM, BEVEL GEAR
    SHIM, BEVEL GEAR
  • 28
    43-95293 GEAR, Pinion
    GEAR, Pinion
  • 29
    53-815066 RING, Snap, PINION GEAR
    RING, Snap, PINION GEAR
  • 30
    28-95371 KEY, IMPELLER
    KEY, IMPELLER
  • 31
    17-815111Q02 SHEAR PIN, PROPELLER
    SHEAR PIN, PROPELLER
  • 32
    48-815083A01 PROPELLER
    PROPELLER
  • 33
    18-95295 COTTER PIN, PROPELLER
    COTTER PIN, PROPELLER
