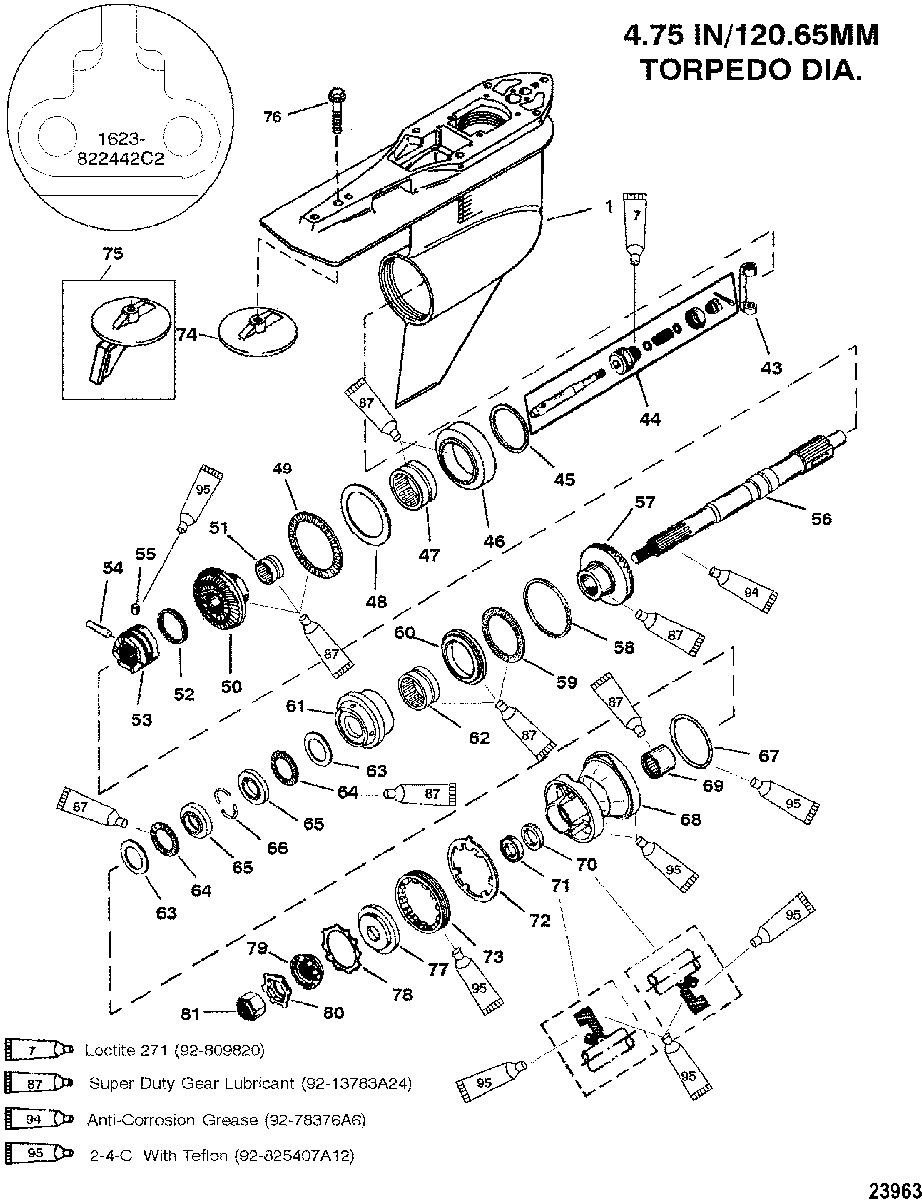

G./HSG, PROP-C/R-S/N-0G437999 & BELOW-1623-822442C2 CASTING для Mercury - 225 SEAPRO (3.0L CARB) 0G245605 THRU 0G760299
-
№АртикулНазвание
-
11623-822442A25 GEAR HOUSING ASSEMBLY, Basic - BlackGEAR HOUSING ASSEMBLY, Basic - Black
-
11623-822442A26 GEAR HOUSING ASSEMBLY, Basic - GrayGEAR HOUSING ASSEMBLY, Basic - Gray
-
43823903 SHIFT CRANKSHIFT CRANK
-
44818349T1 SPOOL KITSPOOL KIT
-
4515-47397A1 SHIM SETSHIM SET
-
46815362T1 ADAPTOR ASSEMBLY, Bearing
(1623-822442C2 CASTING)ADAPTOR ASSEMBLY, Bearing
(1623-822442C2 CASTING) -
46828830A2 ADAPTOR ASSEMBLY, Bearing
(1623-822442C3 CASTING)ADAPTOR ASSEMBLY, Bearing
(1623-822442C3 CASTING) -
4731-814653T BEARING ASSEMBLY, Needle RollersBEARING ASSEMBLY, Needle Rollers
-
4812-815481 THRUST WASHERTHRUST WASHER
-
4931-815480 BEARING, ThrustBEARING, Thrust
-
5043-826288T1 GEAR ASSEMBLY, Reverse
(1.75:1 GEAR RATIO - 12/21)GEAR ASSEMBLY, Reverse
(1.75:1 GEAR RATIO - 12/21) -
5043-824700T1 GEAR ASSEMBLY, Reverse
(1.64:1 GEAR RATIO - 17/28)GEAR ASSEMBLY, Reverse
(1.64:1 GEAR RATIO - 17/28) -
50NSS NOT SOLD SEPARATE
(1.62:1 GEAR RATIO - 13/21)NOT SOLD SEPARATE
(1.62:1 GEAR RATIO - 13/21) -
5131-815482 BEARING, RollerBEARING, Roller
-
5224-30893 SPRINGSPRING
-
5352-853594T SLIDING CLUTCHSLIDING CLUTCH
-
5417-8M0100263 PIN, CrossPIN, Cross
-
5517-78909 PIN, DetentPIN, Detent
-
5644-8M0140448 PROPELLER SHAFTPROPELLER SHAFT
-
5743-826287A1 GEAR ASSEMBLY, Forward (INCLUDES PINION)
(1.75:1 GEAR RATIO - 12/21)GEAR ASSEMBLY, Forward (INCLUDES PINION)
(1.75:1 GEAR RATIO - 12/21) -
5743-828289A3 GEAR ASSEMBLY, Forward (INCLUDES PINION)
(NOTE: THIS COMPLETE GEAR SET IS A 1.62:1 GEAR RATIO - 13/21 REPLACING A 1.64:1 GEAR RATIO - 17/28)GEAR ASSEMBLY, Forward (INCLUDES PINION)
(NOTE: THIS COMPLETE GEAR SET IS A 1.62:1 GEAR RATIO - 13/21 REPLACING A 1.64:1 GEAR RATIO - 17/28) -
5823-1761514 SPACER SHIM , (.206)SPACER SHIM , (.206)
-
5823-1761515 SPACER SHIM , (.208)SPACER SHIM , (.208)
-
5823-1761516 SPACER SHIM, (.210)SPACER SHIM, (.210)
-
5823-1761517 SPACER SHIM, (.212)SPACER SHIM, (.212)
-
5823-1761518 SPACER SHIM, (.214)SPACER SHIM, (.214)
-
5823-1761519 SPACER SHIM, (.216)SPACER SHIM, (.216)
-
5823-1761520 SPACER SHIM, (.218)SPACER SHIM, (.218)
-
5823-1761521 SPACER SHIM, (.220)SPACER SHIM, (.220)
-
5823-1761522 SPACER SHIM, (.222)SPACER SHIM, (.222)
-
5823-1761523 SPACER SHIM, (.224)SPACER SHIM, (.224)
-
5823-1761524 SPACER SHIM, (.226)SPACER SHIM, (.226)
-
5823-1761525 SPACER SHIM, (.228)SPACER SHIM, (.228)
-
5823-1761526 SPACER SHIM, (.230)SPACER SHIM, (.230)
-
5931-15841 BEARING, RollerBEARING, Roller
-
6012-17616 THRUST RINGTHRUST RING
-
61818292A1 ADAPTOR ASSEMBLY, BearingADAPTOR ASSEMBLY, Bearing
-
6231-814653T BEARING ASSEMBLY, Needle RollersBEARING ASSEMBLY, Needle Rollers
-
6312-18448 THRUST WASHERTHRUST WASHER
-
6431-15842 BEARING, ThrustBEARING, Thrust
-
658182911 RACE, ThrustRACE, Thrust
-
66814605 KEEPERKEEPER
-
6725-31534 O-RINGO-RING
-
68818290T1 CARRIER ASSEMBLY, BearingCARRIER ASSEMBLY, Bearing
-
6931-30956T BEARING, NeedleBEARING, Needle
-
7026-14077 SEAL, Oil (INSIDE)SEAL, Oil (INSIDE)
-
7126-76868 SEAL (OUTSIDE)SEAL (OUTSIDE)
-
7214-18323 TAB WASHERTAB WASHER
-
738M2000347 RETAINERRETAINER
-
7497-76214Q5 ANODE KIT
(These replacement parts are not included with complete gear housing replacement)ANODE KIT
(These replacement parts are not included with complete gear housing replacement) -
7597-822777Q1 TRIM TAB
(Anodic)(These replacement parts are not included with complete gear housing replacement)GEAR THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH HOUSING REPLACEMENTTRIM TAB
(Anodic)(These replacement parts are not included with complete gear housing replacement)GEAR THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH HOUSING REPLACEMENT -
758227773 TRIM TAB
(Black Aluminum)(These replacement parts are not included with complete gear housing replacement)TRIM TAB
(Black Aluminum)(These replacement parts are not included with complete gear housing replacement) -
7610-806327 SCREW, (.437-14 x 1.750)
(These replacement parts are not included with complete gear housing replacement)SCREW, (.437-14 x 1.750)
(These replacement parts are not included with complete gear housing replacement) -
7712-835467Q01 THRUST HUB
(These replacement parts are not included with complete gear housing replacement)THRUST HUB
(These replacement parts are not included with complete gear housing replacement) -
7813-423511 LOCKWASHER, Toothed
(These replacement parts are not included with complete gear housing replacement)LOCKWASHER, Toothed
(These replacement parts are not included with complete gear housing replacement) -
7912-31211Q03 WASHER, Splined
(These replacement parts are not included with complete gear housing replacement)WASHER, Splined
(These replacement parts are not included with complete gear housing replacement) -
8014-816629Q TAB WASHER
(These replacement parts are not included with complete gear housing replacement)TAB WASHER
(These replacement parts are not included with complete gear housing replacement) -
8111-52707Q1 PROP NUT KIT, (.750-16)
(These replacement parts are not included with complete gear housing replacement)PROP NUT KIT, (.750-16)
(These replacement parts are not included with complete gear housing replacement) -
-26-816575A5 SEAL KIT, Gear HousingSEAL KIT, Gear Housing
