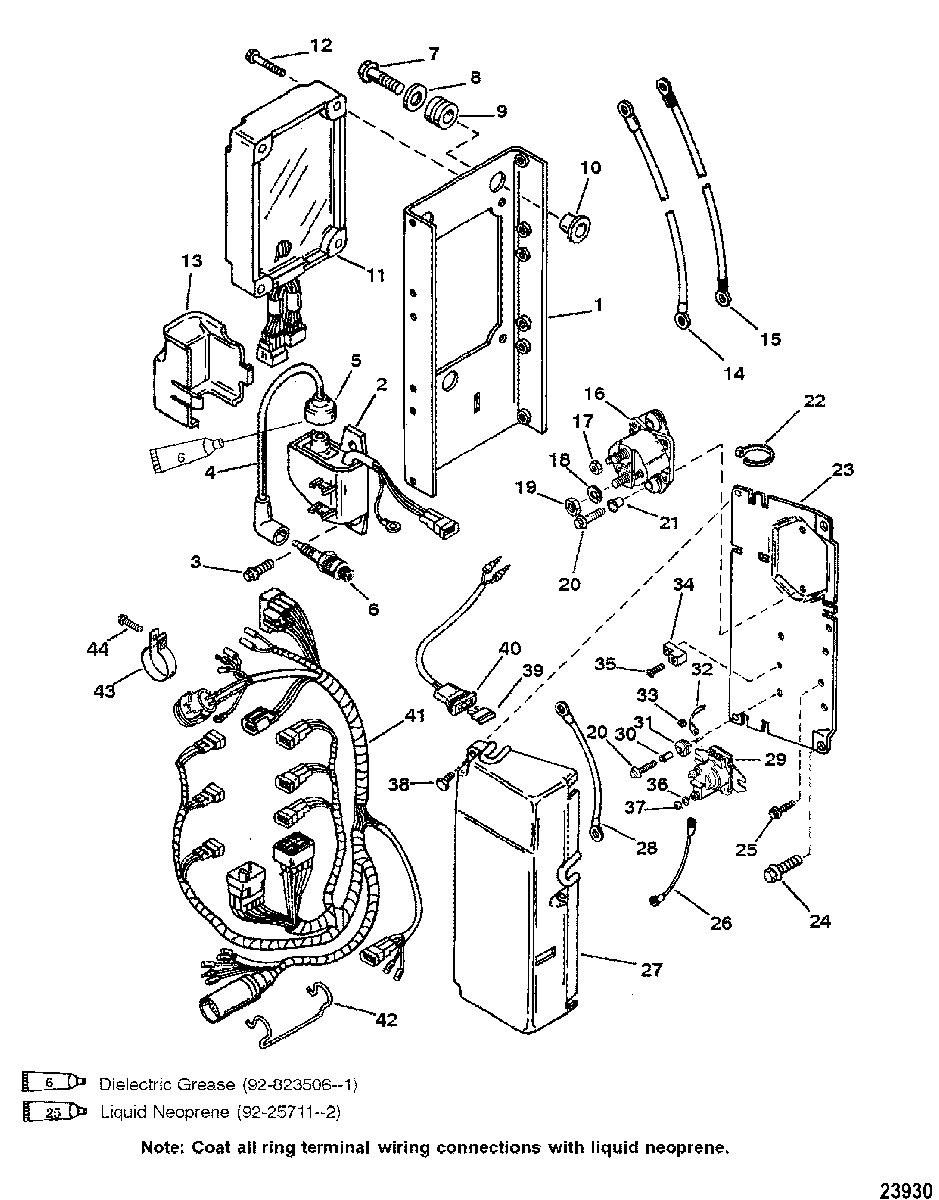

ELECTRICAL(S/N:0G129221 & BELOW NON SEAPRO/MARATHON) для Mercury - 225 SEAPRO (3.0L CARB) 0G245605 THRU 0G760299
-
№АртикулНазвание
-
18211861 PLATE, Electrical MountingPLATE, Electrical Mounting
-
2827509A12 CDM ASSEMBLYCDM ASSEMBLY
-
310-82129114 SCREW, (M6 x 14)SCREW, (M6 x 14)
-
484-821945A56 CABLE ASSEMBLY, Hi TensionCABLE ASSEMBLY, Hi Tension
-
585-63709A1 BOOT/TERMINAL KITBOOT/TERMINAL KIT
-
633-816837Q SPARK PLUG (BPZ8H-N-10)SPARK PLUG (BPZ8H-N-10)
-
710-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
812-56720 WASHER, (.330 x .750 x .060) Stainless SteelWASHER, (.330 x .750 x .060) Stainless Steel
-
925-88033 GROMMETGROMMET
-
1023-19064 BUSHINGBUSHING
-
11824866A1 ECU, Engine Control UnitECU, Engine Control Unit
-
1210-82129140 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
13823882 COVERCOVER
-
1484-88439A3 CABLE ASSEMBLY, Positive - BatteryCABLE ASSEMBLY, Positive - Battery
-
1584-88439A4 CABLE ASSEMBLY, Battery - NegativeCABLE ASSEMBLY, Battery - Negative
-
1689-817109A2 SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals)SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals)
-
1711-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
1813-53166 LOCKWASHER, (.312)LOCKWASHER, (.312)
-
1911-68292 NUT, (.312-18)NUT, (.312-18)
-
2010-82129125 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
2123-818968 BUSHINGBUSHING
-
2254-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
238212281 PLATE, Solenoid MountingPLATE, Solenoid Mounting
-
2410-82155025 SCREW, (M8 x 25) Stainless SteelSCREW, (M8 x 25) Stainless Steel
-
2510-82129110 SCREW, (M6 x 10)SCREW, (M6 x 10)
-
2684-87379A46 CABLE ASSEMBLY, (5.750 Inches) (RED)CABLE ASSEMBLY, (5.750 Inches) (RED)
-
278216091 COVERCOVER
-
2884-93388A8 CABLE ASSEMBLY, BlackCABLE ASSEMBLY, Black
-
2989-818997T1 SOLENOID ASSEMBLYSOLENOID ASSEMBLY
-
3023-818968 BUSHINGBUSHING
-
3125-818967 GROMMETGROMMET
-
3284-88807A16 CABLE ASSEMBLY, (4.00 Inches) BlackCABLE ASSEMBLY, (4.00 Inches) Black
-
3311-26419 NUT, (#8-32) BrassNUT, (#8-32) Brass
-
3486-45915 TERMINAL BLOCKTERMINAL BLOCK
-
3510-48408 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
3613-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
3711-94330 NUT, (.250-20) BrassNUT, (.250-20) Brass
-
3810-82239320 SCREW, (M5 x 20) (M5 X 0.8)SCREW, (M5 x 20) (M5 X 0.8)
-
3988-812619 FUSE, Yellow - 20 AmpereFUSE, Yellow - 20 Ampere
-
4088-19637 SOCKET, FuseSOCKET, Fuse
-
4184-821967T3 HARNESS ASSEMBLY, Engine Wiring
(SEE SERVICE BULLETIN 94-8)HARNESS ASSEMBLY, Engine Wiring
(SEE SERVICE BULLETIN 94-8) -
4292753 RETAINERRETAINER
-
4354-826188 CLAMPCLAMP
-
4410-82104520 SCREW, (M5 x 20)SCREW, (M5 x 20)
