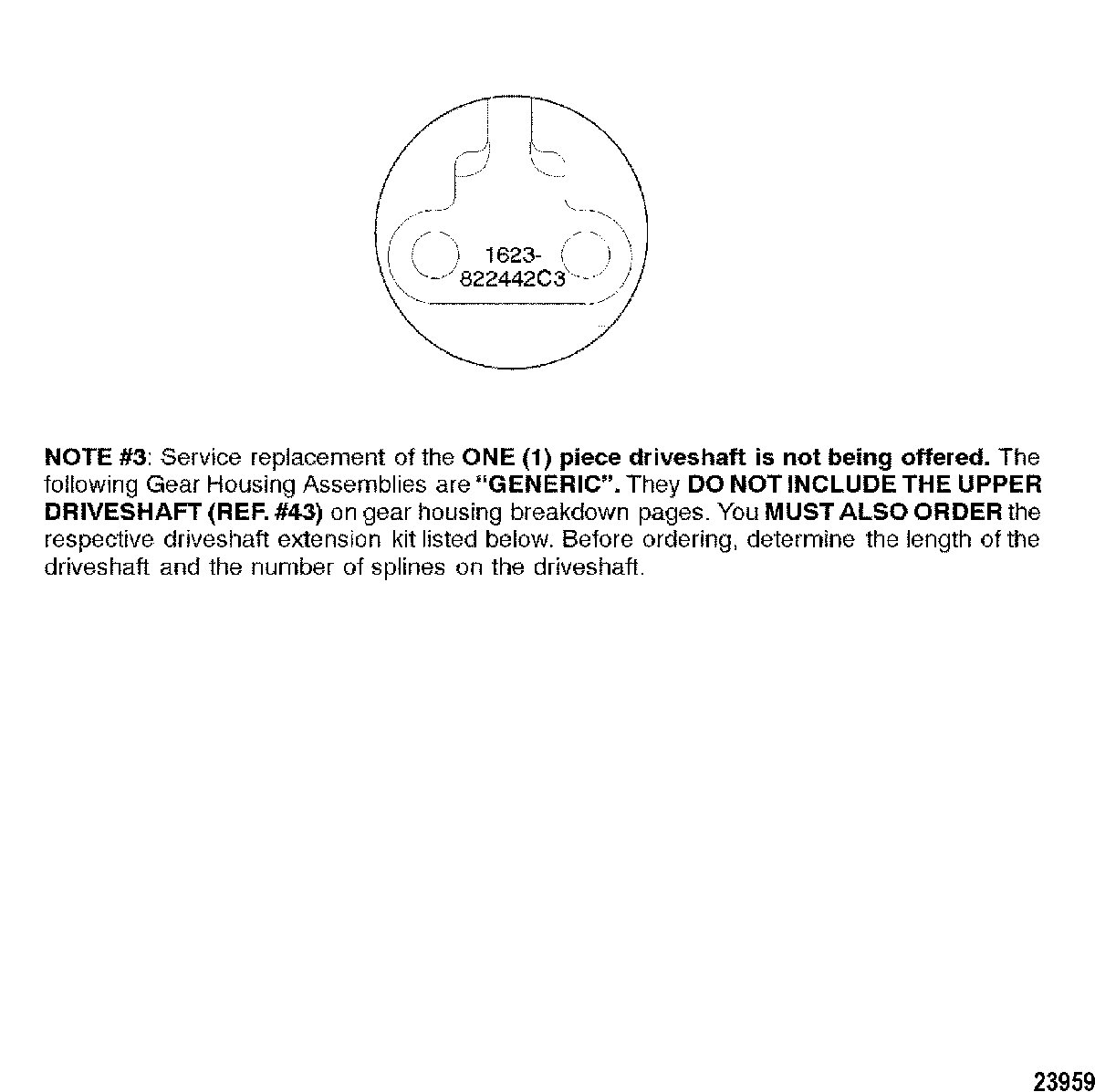

GEAR HOUSING CHART(S/N-0G438000 & UP) для Mercury - 225 SEAPRO (3.0L CARB) 0G245605 THRU 0G760299
-
№АртикулНазвание
-
-1623-822442T77 GEAR HOUSING ASSEMBLY
(BLACK) STANDARD ROTATION 1.75:1 GEAR RATIOGEAR HOUSING ASSEMBLY
(BLACK) STANDARD ROTATION 1.75:1 GEAR RATIO -
-1623-822442T78 GEAR HOUSING ASSEMBLY
(GRAY) STANDARD ROTATION 1.75:1 GEAR RATIOGEAR HOUSING ASSEMBLY
(GRAY) STANDARD ROTATION 1.75:1 GEAR RATIO -
-1623-822442T80 GEAR HOUSING ASSEMBLY
(WHITE) STANDARD ROTATION 1.75:1 GEAR RATIOGEAR HOUSING ASSEMBLY
(WHITE) STANDARD ROTATION 1.75:1 GEAR RATIO -
-1623-857113T2 GEAR HOUSING ASSEMBLY
(BLACK) COUNTER ROTATION 1.75:1 GEAR RATIOGEAR HOUSING ASSEMBLY
(BLACK) COUNTER ROTATION 1.75:1 GEAR RATIO -
-1623-822442T82 GEAR HOUSING ASSEMBLY
(GRAY) COUNTER ROTATION 1.75:1 GEAR RATIOGEAR HOUSING ASSEMBLY
(GRAY) COUNTER ROTATION 1.75:1 GEAR RATIO -
-1623-822442T85 GEAR HOUSING ASSEMBLY
(WHITE) COUNTER ROTATION 1.75:1 GEAR RATIOGEAR HOUSING ASSEMBLY
(WHITE) COUNTER ROTATION 1.75:1 GEAR RATIO -
-1623-822442T95 GEAR HOUSING ASSEMBLY
(BLACK) HIGH ALTITUDE 1.87:1 GEAR RATIOGEAR HOUSING ASSEMBLY
(BLACK) HIGH ALTITUDE 1.87:1 GEAR RATIO -
-1623-822442T96 GEAR HOUSING ASSEMBLY
(GRAY) HIGH ALTITUDE 1.87:1 GEAR RATIOGEAR HOUSING ASSEMBLY
(GRAY) HIGH ALTITUDE 1.87:1 GEAR RATIO -
-45-824114A1 EXTENSION KIT, Driveshaft
(LONG-20 IN.) 8 SPLINESEXTENSION KIT, Driveshaft
(LONG-20 IN.) 8 SPLINES -
-45-823901A1 EXTENSION KIT, Driveshaft
(X-LONG-25 IN.) 8 SPLINESEXTENSION KIT, Driveshaft
(X-LONG-25 IN.) 8 SPLINES -
-45-824115A1 EXTENSION KIT, Driveshaft
(XX-LONG-30 IN.) 8 SPLINESEXTENSION KIT, Driveshaft
(XX-LONG-30 IN.) 8 SPLINES -
-45-827754A1 EXTENSION KIT, Driveshaft
(LONG-20 IN.) 13 SPLINESEXTENSION KIT, Driveshaft
(LONG-20 IN.) 13 SPLINES -
-45-827755A1 EXTENSION KIT, Driveshaft
(X-LONG-25 IN.) 13 SPLINESEXTENSION KIT, Driveshaft
(X-LONG-25 IN.) 13 SPLINES -
-45-826353A1 EXTENSION KIT, Driveshaft
(XX-LONG-30 IN.) 13 SPLINESEXTENSION KIT, Driveshaft
(XX-LONG-30 IN.) 13 SPLINES
