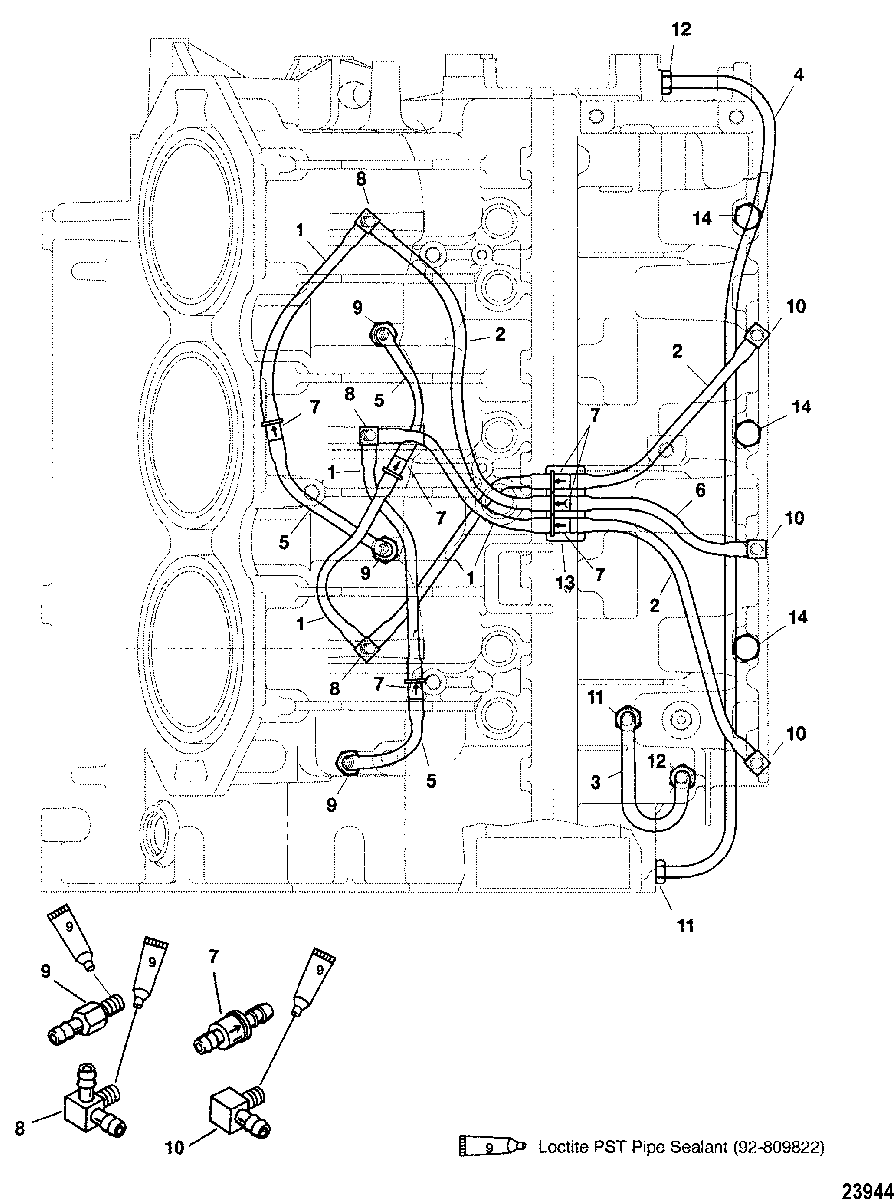

BLEED SYSTEM(STARBOARD) (S/N-0G437999 & BELOW) для Mercury - 225 SEAPRO (3.0L CARB) 0G245605 THRU 0G760299
-
№АртикулНазвание
-
132-892024122 TUBING, (20.00 Feet Bulk) (6 IN.)TUBING, (20.00 Feet Bulk) (6 IN.)
-
232-892024122 TUBING, (20.00 Feet Bulk) (8-1/2 IN.)TUBING, (20.00 Feet Bulk) (8-1/2 IN.)
-
332-892024122 TUBING, (20.00 Feet Bulk) (4 IN.)(REF. #31 ON "CYLINDER BLOCK AND END CAP")TUBING, (20.00 Feet Bulk) (4 IN.)(REF. #31 ON "CYLINDER BLOCK AND END CAP")
-
432-892024122 TUBING, (20.00 Feet Bulk) (22-1/2 IN.)(REF. #28 ON "CYLINDER BLOCK AND END CAP")TUBING, (20.00 Feet Bulk) (22-1/2 IN.)(REF. #28 ON "CYLINDER BLOCK AND END CAP")
-
532-892024122 TUBING, (20.00 Feet Bulk) (3 IN.)TUBING, (20.00 Feet Bulk) (3 IN.)
-
632-892024122 TUBING, (20.00 Feet Bulk) (4-1/2 IN.)TUBING, (20.00 Feet Bulk) (4-1/2 IN.)
-
721-149125 CHECK VALVECHECK VALVE
-
822-8243561 FITTING (REF. #34 ON "CYLINDER BLOCK AND END CAP")FITTING (REF. #34 ON "CYLINDER BLOCK AND END CAP")
-
922-8245021 CONNECTOR (REF. #8 ON "CYLINDER BLOCK AND END CAP")CONNECTOR (REF. #8 ON "CYLINDER BLOCK AND END CAP")
-
1022-768431 FITTING (REF. #11 ON "CYLINDER BLOCK AND END CAP")FITTING (REF. #11 ON "CYLINDER BLOCK AND END CAP")
-
1121-426585 CHECK VALVE (REF. #14 ON "CYLINDER BLOCK AND END CAP")CHECK VALVE (REF. #14 ON "CYLINDER BLOCK AND END CAP")
-
1221-8159234 CHECK VALVE (REF. #16 ON "CYLINDER BLOCK AND END CAP")CHECK VALVE (REF. #16 ON "CYLINDER BLOCK AND END CAP")
-
13821556 RETAINER, Check Valve (REF. #32 ON "CYLINDER BLOCK AND END CAP")RETAINER, Check Valve (REF. #32 ON "CYLINDER BLOCK AND END CAP")
-
1422-8272011 PIPE PLUGPIPE PLUG
-
-823291A94 POWERHEAD ASSEMBLY
(8 TOOTH SPLINES) SN# 0G129221 & BelowPOWERHEAD ASSEMBLY
(8 TOOTH SPLINES) SN# 0G129221 & Below -
-809794R97 POWERHEAD ASSEMBLY
(13 TOOTH SPLINES) SN# 0G129222 & UpPOWERHEAD ASSEMBLY
(13 TOOTH SPLINES) SN# 0G129222 & Up -
-809793A00 POWERHEAD ASSEMBLY
(SEAPRO/MARATHON)POWERHEAD ASSEMBLY
(SEAPRO/MARATHON)
