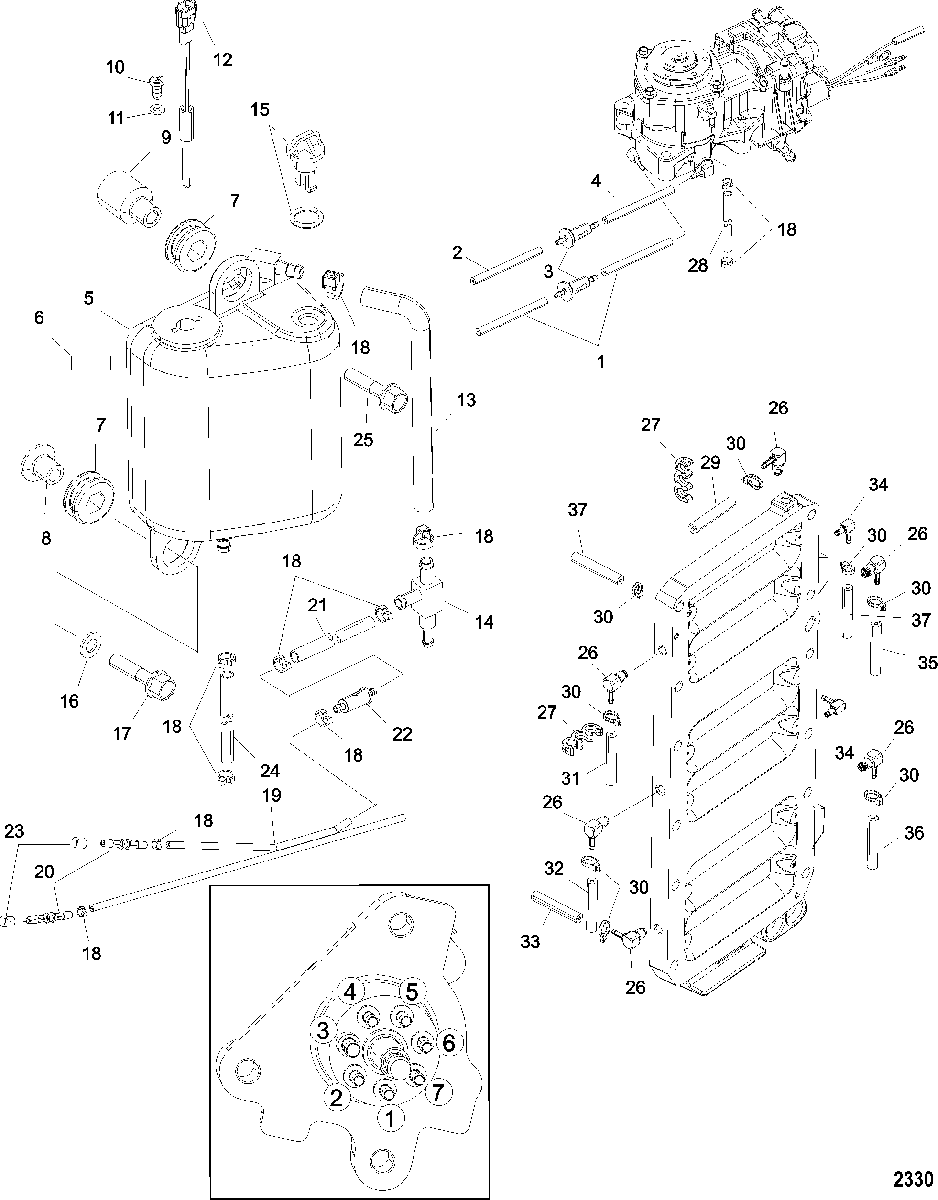

Oiling System 250 для Mercury - 225 (DFI) 3.0L 1B504989 & Up

  • №
    Артикул
    Название
  • 1
    32-8M0054152 TUBING, (38.00 Inches Bulk), Cut to 11.50 Inches
    TUBING, (38.00 Inches Bulk), Cut to 11.50 Inches
  • 2
    32-8M0054152 TUBING, (38.00 Inches Bulk), Cut to 5 Inches
    TUBING, (38.00 Inches Bulk), Cut to 5 Inches
  • 3
    35-8M0042285 FILTER, Fuel
    FILTER, Fuel
  • 4
    32-8M0054152 TUBING, (38.00 Inches Bulk), Cut to 9 Inches
    TUBING, (38.00 Inches Bulk), Cut to 9 Inches
  • 5
    1200-8M0064075 TANK, Oil
    TANK, Oil
  • 6
    NSS NOT SOLD SEPARATE, Decal-Reservoir
    NOT SOLD SEPARATE, Decal-Reservoir
  • 7
    25-855362001 GROMMET
    GROMMET
  • 8
    23-855364 BUSHING
    BUSHING
  • 9
    23-883050 SPACER
    SPACER
  • 10
    10-58376 SCREW, (.164-18 x .375)
    SCREW, (.164-18 x .375)
  • 11
    12-72761 WASHER, (.203 x .562 x .060) Stainless Steel
    WASHER, (.203 x .562 x .060) Stainless Steel
  • 12
    87-856156T04 SWITCH
    SWITCH
  • 13
    32-885553 HOSE
    HOSE
  • 14
    22-424254 FITTING
    FITTING
  • 15
    19-887609 PLUG
    PLUG
  • 16
    12-4002318 WASHER
    WASHER
  • 17
    10-81893435 SCREW, (M8 x 35)
    SCREW, (M8 x 35)
  • 18
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 19
    32-8752891 HOSE
    HOSE
  • 20
    22-858955 CONNECTOR
    CONNECTOR
  • 21
    32-875283 HOSE, (2.00 Inches)
    HOSE, (2.00 Inches)
  • 22
    35-875284T01 FILTER, Oil - In Line
    FILTER, Oil - In Line
  • 23
    NSS NOT SOLD SEPARATE, Plug
    NOT SOLD SEPARATE, Plug
  • 24
    32-892830053 HOSE, (24.00 Inches Braided), Cut to 22 Inches
    HOSE, (24.00 Inches Braided), Cut to 22 Inches
  • 25
    10-81893460 SCREW, (M8 x 60)
    SCREW, (M8 x 60)
  • 26
    21-858870 CHECK VALVE
    CHECK VALVE
  • 27
    859230T RETAINER
    RETAINER
  • 28
    32-8M0054213 HOSE, (40.00 Inches Bulk), Cut to 34 Inches
    HOSE, (40.00 Inches Bulk), Cut to 34 Inches
  • 29
    32-8M0054152 TUBING, (38.00 Inches Bulk), Cut to 19.50 Inches
    TUBING, (38.00 Inches Bulk), Cut to 19.50 Inches
  • 30
    56762 TIE STRAP, (4.00 Inches)
    TIE STRAP, (4.00 Inches)
  • 31
    32-8M0054152 TUBING, (38.00 Inches Bulk), Cut to 11 Inches
    TUBING, (38.00 Inches Bulk), Cut to 11 Inches
  • 32
    32-8M0054152 TUBING, (38.00 Inches Bulk), Cut to 6 Inches
    TUBING, (38.00 Inches Bulk), Cut to 6 Inches
  • 33
    32-8M0054152 TUBING, (38.00 Inches Bulk), Cut to 4 Inches
    TUBING, (38.00 Inches Bulk), Cut to 4 Inches
  • 34
    22-883988 ELBOW
    ELBOW
  • 35
    32-8M0054152 TUBING, (38.00 Inches Bulk), Cut to 22 Inches
    TUBING, (38.00 Inches Bulk), Cut to 22 Inches
  • 36
    32-8M0054152 TUBING, (38.00 Inches Bulk), Cut to 16.50 Inches
    TUBING, (38.00 Inches Bulk), Cut to 16.50 Inches
  • 37
    32-8M0054152 TUBING, (38.00 Inches Bulk), Cut to 7 Inches
    TUBING, (38.00 Inches Bulk), Cut to 7 Inches
