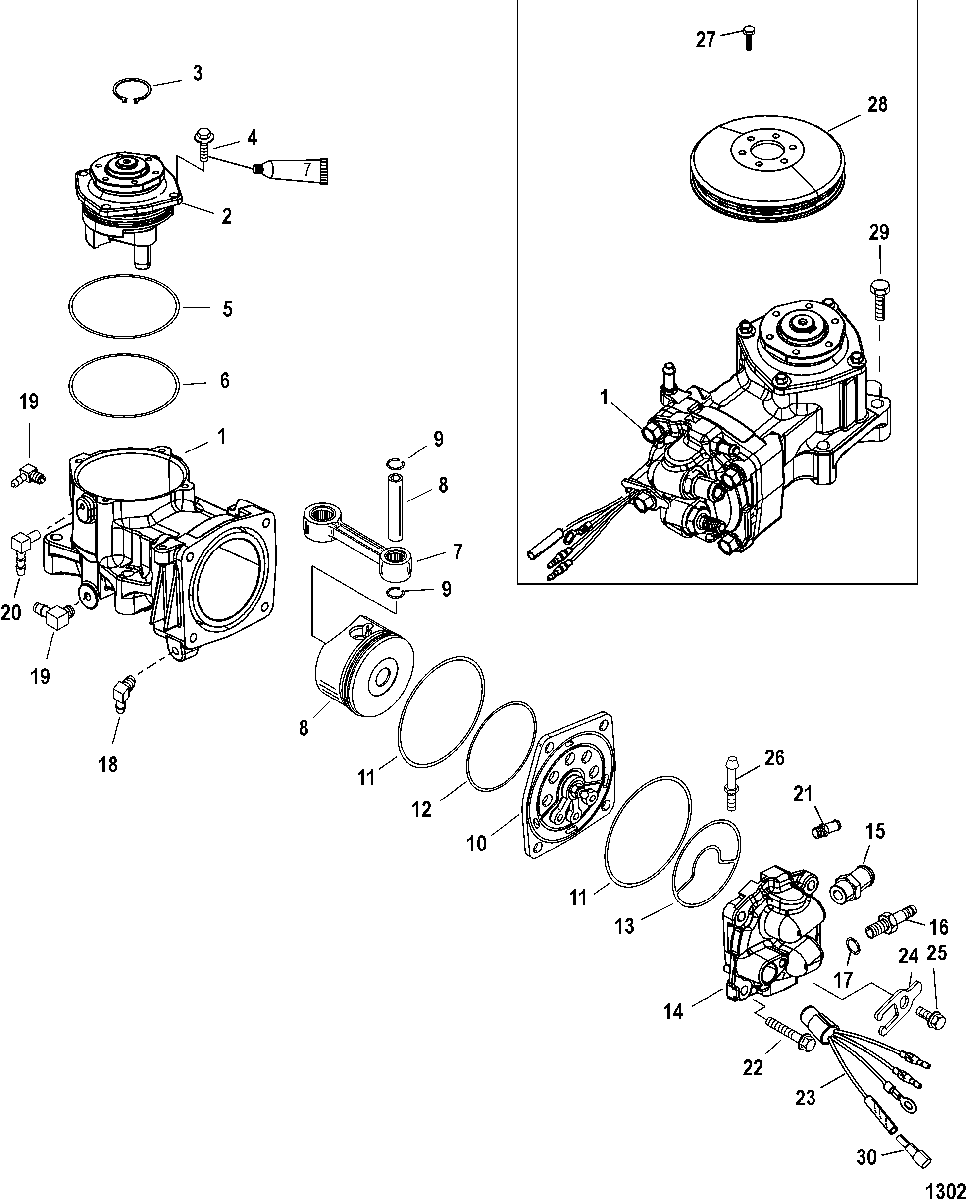

Air Compressor Comp. 200/225/200 Pro XS, 1B885131 and below для Mercury - 225 (DFI) 3.0L 1B504989 & Up

  • №
    Артикул
    Название
  • 1
    8M0060052 COMPRESSOR ASSEMBLY, Air
    Unpainted
    COMPRESSOR ASSEMBLY, Air
    Unpainted
  • 2
    1100-8M0050792 END CAP ASSEMBLY
    END CAP ASSEMBLY
  • 3
    NSS NOT SOLD SEPARATE, Snap Ring
    NOT SOLD SEPARATE, Snap Ring
  • 4
    10-85593920 SCREW, (M6 x 20)
    SCREW, (M6 x 20)
  • 5
    25-67206001 O-RING
    O-RING
  • 6
    25-67206001 O-RING
    O-RING
  • 7
    653-833146T06 CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 8
    NSS NOT SOLD SEPARATE, Piston assembly
    NOT SOLD SEPARATE, Piston assembly
  • 9
    53-8348101 RING, Lock
    RING, Lock
  • 10
    835088A10 REED PLATE ASSEMBLY
    REED PLATE ASSEMBLY
  • 11
    25-67207 O-RING, (3.489 x .070)
    O-RING, (3.489 x .070)
  • 12
    25-832804 O-RING, (2.739 x .070)
    O-RING, (2.739 x .070)
  • 13
    26-828225 SEAL
    SEAL
  • 14
    8M0073889 HEAD KIT, Compressor
    HEAD KIT, Compressor
  • 15
    22-8812711 FITTING
    FITTING
  • 16
    22-856744 FITTING
    FITTING
  • 17
    25-831985 O-RING, (.468 x .078)
    O-RING, (.468 x .078)
  • 18
    22-996642 FITTING, Elbow 90 Degree (.125-27 x .250) Nylon
    FITTING, Elbow 90 Degree (.125-27 x .250) Nylon
  • 19
    21-428641 FITTING, Check Valve
    FITTING, Check Valve
  • 20
    22-151331 FITTING
    FITTING
  • 21
    22-16604 FITTING, Straight (.125-27)
    FITTING, Straight (.125-27)
  • 22
    10-82127335 SCREW, (M8 x 35 MM)
    SCREW, (M8 x 35 MM)
  • 23
    13536A14 SENSOR ASSEMBLY, Temperature
    SENSOR ASSEMBLY, Temperature
  • 24
    137151 RETAINER
    RETAINER
  • 25
    10-81893414 SCREW, (M8 x 14)
    SCREW, (M8 x 14)
  • 26
    8215832 PIN, Special (1.5 Inches)
    PIN, Special (1.5 Inches)
  • 27
    10-85593912 SCREW, (M6 x 12)
    SCREW, (M6 x 12)
  • 28
    8328233 PULLEY
    PULLEY
  • 29
    10-8M0045380 SCREW, (M8 x 50)
    SCREW, (M8 x 50)
  • 30
    13541 PLUG, Male
    PLUG, Male
  • -
    25-832804A03 O-RING KIT
    O-RING KIT
