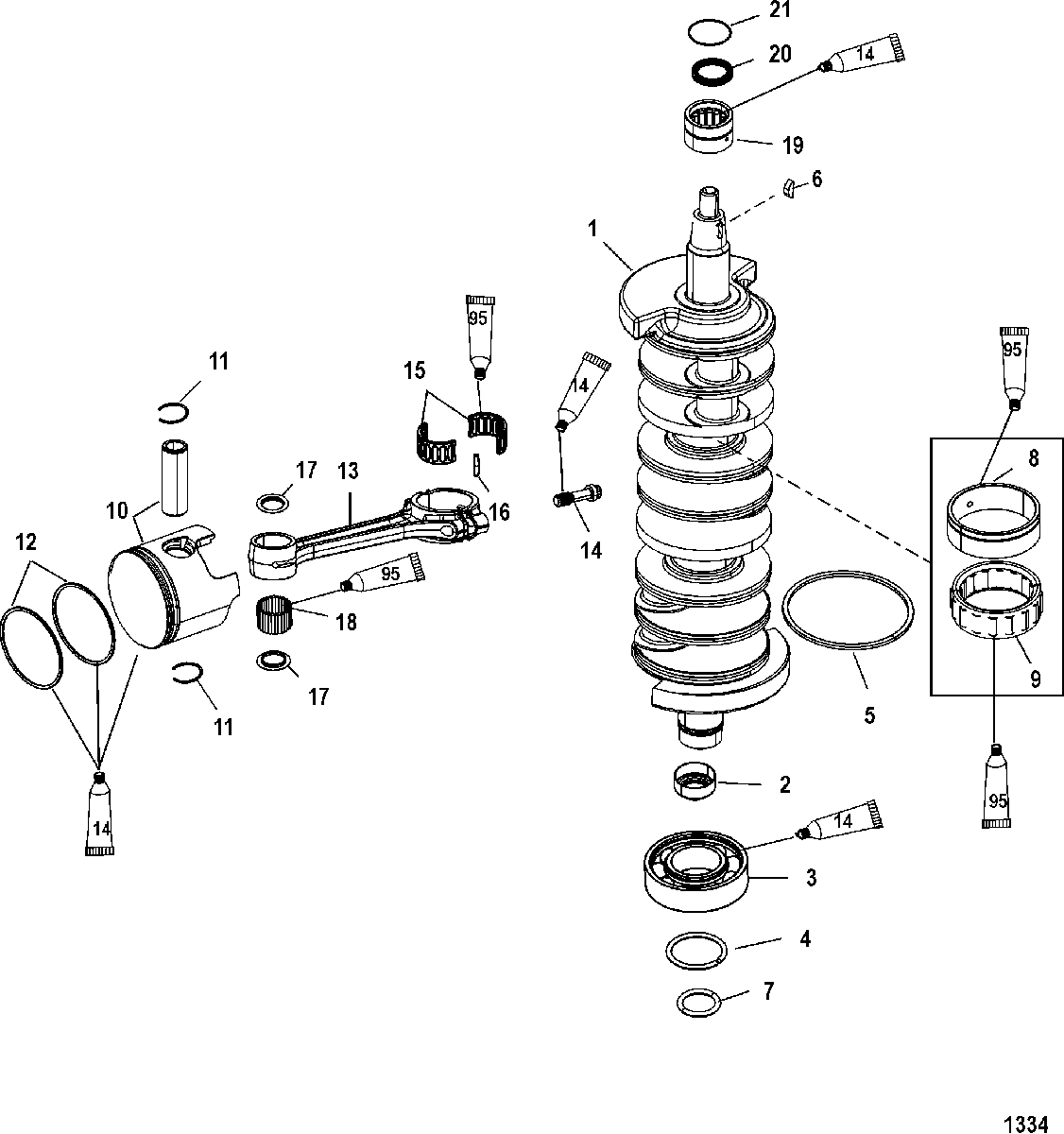

Crankshaft, Pistons and Connecting Rods, 200/225/200 Pro XS для Mercury - 225 (DFI) 3.0L 1B504989 & Up

  • №
    Артикул
    Название
  • 1
    482-9784A11 CRANKSHAFT ASSEMBLY
    CRANKSHAFT ASSEMBLY
  • 2
    830882 WEAR SLEEVE
    WEAR SLEEVE
  • 3
    30-67923T BEARING, Ball, Lower
    BEARING, Ball, Lower
  • 4
    53-67446 RING
    RING
  • 5
    39-843198T01 RING, Seal
    RING, Seal
  • 6
    28-91800 KEY, Woodruff
    KEY, Woodruff
  • 7
    25-35126 O-RING, (.859 x .139)
    O-RING, (.859 x .139)
  • 8
    31-88270A02 BEARING/RACE KIT
    BEARING/RACE KIT
  • 9
    NSS NOT SOLD SEPARATE, Needle Roller
    NOT SOLD SEPARATE, Needle Roller
  • 10
    2720-881055T10 PISTON ASSEMBLY, Standard - Starboard
    PISTON ASSEMBLY, Standard - Starboard
  • 10
    2720-889640A02 PISTON ASSEMBLY
    Starboard - .015 Oversize
    PISTON ASSEMBLY
    Starboard - .015 Oversize
  • 10
    2720-889642A02 PISTON ASSEMBLY
    Starboard - .030 Oversize
    PISTON ASSEMBLY
    Starboard - .030 Oversize
  • 10
    2720-881054T10 PISTON ASSEMBLY, Standard - Port
    PISTON ASSEMBLY, Standard - Port
  • 10
    2720-889639A02 PISTON ASSEMBLY
    Port - .015 Oversize
    PISTON ASSEMBLY
    Port - .015 Oversize
  • 10
    2720-889641A02 PISTON ASSEMBLY
    Port - .030 Oversize
    PISTON ASSEMBLY
    Port - .030 Oversize
  • 11
    40-841202 RING
    RING
  • 12
    39-827179A12 RING SET, Piston
    Standard
    RING SET, Piston
    Standard
  • 12
    39-875252A12 RING SET, Piston
    .015 Oversize
    RING SET, Piston
    .015 Oversize
  • 12
    39-875257A12 RING SET, Piston
    .030 Oversize
    RING SET, Piston
    .030 Oversize
  • 13
    600-8M0125869 CONNECTING ROD ASSEMBLY
    200/225 DFI
    CONNECTING ROD ASSEMBLY
    200/225 DFI
  • 13
    647-879148T74 CONNECTING ROD ASSEMBLY
    200 ProXS
    CONNECTING ROD ASSEMBLY
    200 ProXS
  • 14
    10-94320 SCREW, (.375-24 x 1.250)
    SCREW, (.375-24 x 1.250)
  • 15
    31-844338A01 BEARING ASSEMBLY
    BEARING ASSEMBLY
  • 16
    NSS NOT SOLD SEPARATE, Needle Roller Bearing
    NOT SOLD SEPARATE, Needle Roller Bearing
  • 17
    12-88263 THRUST WASHER
    THRUST WASHER
  • 18
    29-88258001 BEARING, Needle
    BEARING, Needle
  • 19
    31-816773A2 BEARING ASSEMBLY, Upper
    BEARING ASSEMBLY, Upper
  • 20
    26-859093 SEAL
    SEAL
  • 21
    25-823683 O-RING, (1.989 x .070)
    O-RING, (1.989 x .070)
  • -
    27-832934A00 GASKET SET, Powerhead
    GASKET SET, Powerhead
  • -
    854198A07 POWERHEAD ASSEMBLY
    200/200 Pro XS
    POWERHEAD ASSEMBLY
    200/200 Pro XS
  • -
    877869A07 POWERHEAD ASSEMBLY
    225
    POWERHEAD ASSEMBLY
    225
