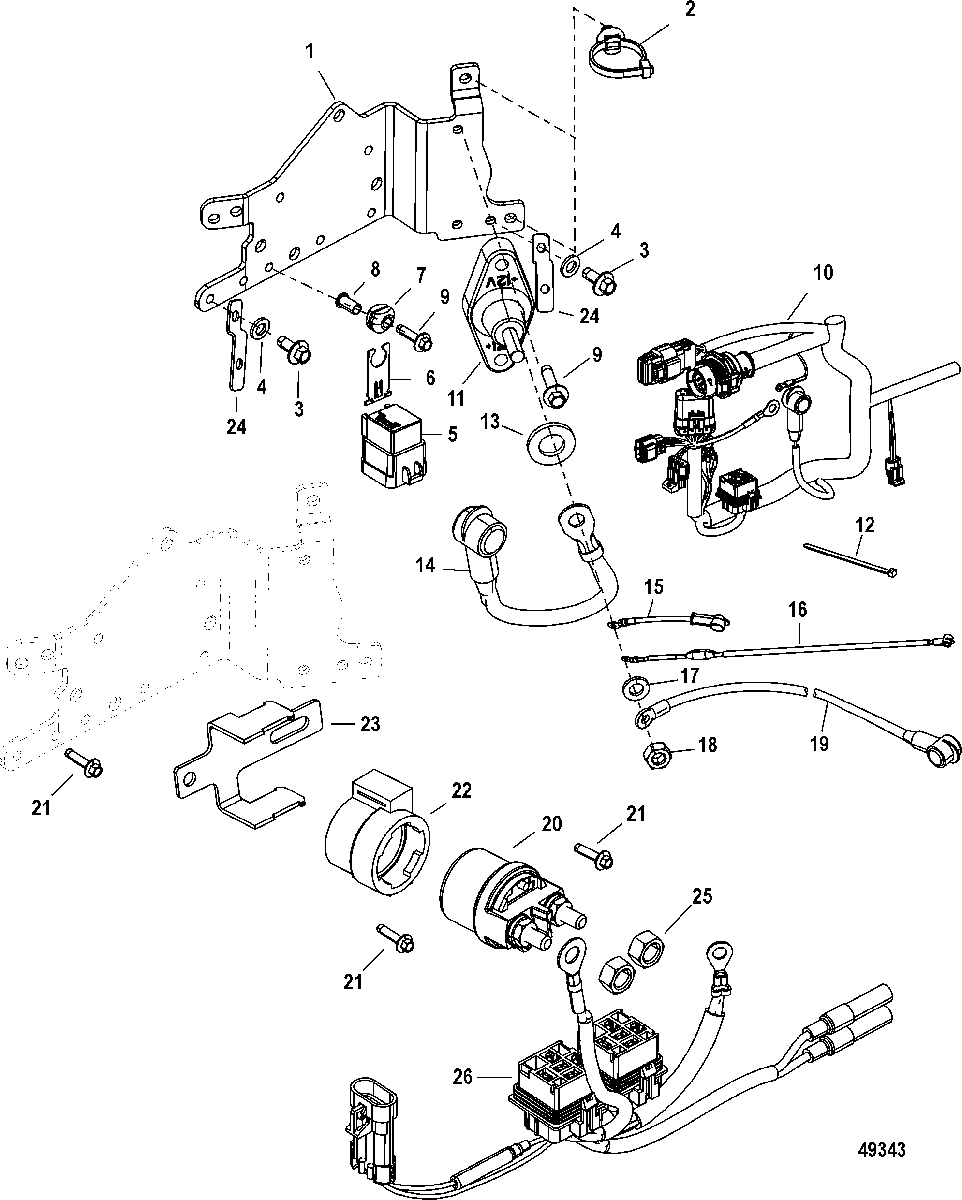

Electrical Plate Components, SN# 1B884208 and up для Mercury - 225 (DFI) 3.0L 1B504989 & Up

  • №
    Артикул
    Название
  • -
    NSS NOT SOLD SEPARATE, Electrical Plate Assembly-Complete
    NOT SOLD SEPARATE, Electrical Plate Assembly-Complete
  • 1
    899071T01 PLATE
    PLATE
  • 2
    54-899145 CLIP, Tie Strap
    CLIP, Tie Strap
  • 3
    10-82129114 SCREW, (M6 x 14)
    SCREW, (M6 x 14)
  • 4
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 5
    882751A1 RELAY ASSEMBLY
    RELAY ASSEMBLY
  • 6
    828102 BRACKET
    BRACKET
  • 7
    25-818967 GROMMET
    GROMMET
  • 8
    23-818968 BUSHING
    BUSHING
  • 9
    10-82129125 SCREW, (M6 x 25 MM)
    SCREW, (M6 x 25 MM)
  • 10
    84-8M0065142 HARNESS ASSEMBLY, Engine
    HARNESS ASSEMBLY, Engine
  • -
    88-832969T20 FUSE, Mini - Yellow - 20 Ampere
    FUSE, Mini - Yellow - 20 Ampere
  • -
    88-8329692 FUSE, Mini - Gray - 2 Ampere
    FUSE, Mini - Gray - 2 Ampere
  • -
    88-832969T05 FUSE, Mini - Tan - 5 Ampere
    FUSE, Mini - Tan - 5 Ampere
  • -
    879346A49 HARNESS REPAIR KIT, Direct Injector
    HARNESS REPAIR KIT, Direct Injector
  • -
    879346A50 HARNESS REPAIR KIT, Fuel Injector
    HARNESS REPAIR KIT, Fuel Injector
  • -
    84-881262A2 HARNESS ASSEMBLY, Alternator
    HARNESS ASSEMBLY, Alternator
  • -
    879346A41 HARNESS ASSEMBLY, Throttle Position Sensor
    HARNESS ASSEMBLY, Throttle Position Sensor
  • 11
    85-875302A1 HOT STUD ASSEMBLY
    HOT STUD ASSEMBLY
  • 12
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 13
    12-85172 WASHER
    WASHER
  • 14
    84-8M0030525 CABLE ASSEMBLY, Black
    CABLE ASSEMBLY, Black
  • 15
    84-93388A17 CABLE ASSEMBLY, (8.50 Inches)
    CABLE ASSEMBLY, (8.50 Inches)
  • 16
    84-878231A6 HARNESS ASSEMBLY, Fuse - 100 Ampere
    HARNESS ASSEMBLY, Fuse - 100 Ampere
  • 17
    13-26993 LOCKWASHER, (.312)
    LOCKWASHER, (.312)
  • 18
    11-400213 NUT, (M8) Stainless Steel
    NUT, (M8) Stainless Steel
  • 19
    84-88439A46 CABLE ASSEMBLY, Battery - Positive
    CABLE ASSEMBLY, Battery - Positive
  • 20
    89-8M0098898 SOLENOID, Starter
    SOLENOID, Starter
  • 21
    10-82129110 SCREW, (M6 x 10)
    SCREW, (M6 x 10)
  • 22
    8M0010250 BRACKET
    BRACKET
  • 23
    8M0024801 BRACKET, Solenoid
    BRACKET, Solenoid
  • 24
    858953 BRACKET
    BRACKET
  • 25
    11-401386 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 26
    84-8M0065143 HARNESS ASSEMBLY, Trim
    HARNESS ASSEMBLY, Trim
