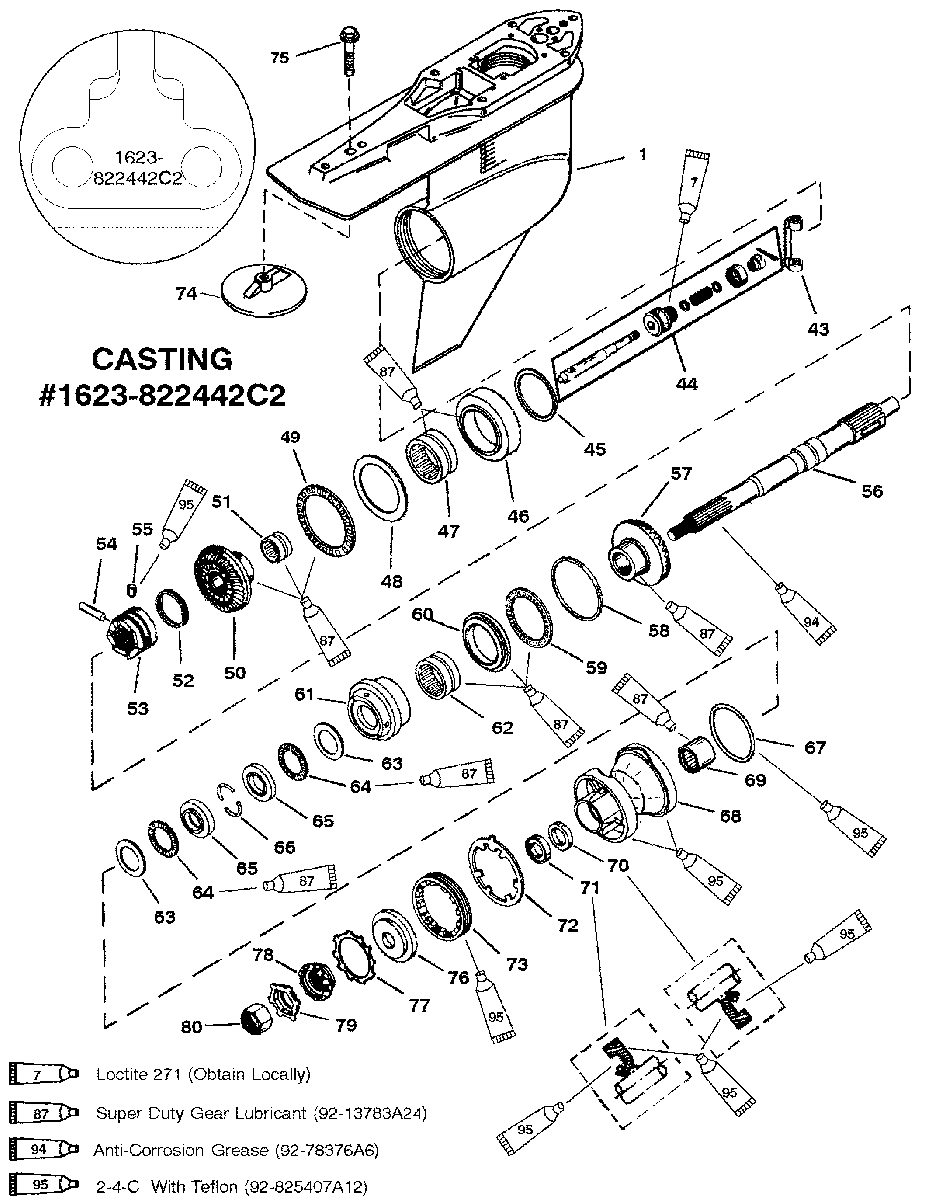

GEAR HSG(PROP SHAFT)COUNTER ROTATION(G437999 & BELOW) для Mercury - 200 (DFI) 0G386496 THRU 0G589999

  • №
    Артикул
    Название
  • 1
    1623-822442A25 GEAR HOUSING
    (BASIC-BLACK) WHEN STOCK IS DEPLETED, ORDER 1623-822442A83 (BLACK) OR 1623-822442A84 (GRAY) AND 828830A1 REVERSE GEAR BEARING ADAPTOR
    GEAR HOUSING
    (BASIC-BLACK) WHEN STOCK IS DEPLETED, ORDER 1623-822442A83 (BLACK) OR 1623-822442A84 (GRAY) AND 828830A1 REVERSE GEAR BEARING ADAPTOR
  • 1
    1623-822442A26 GEAR HOUSING
    (BASIC-GRAY) WHEN STOCK IS DEPLETED, ORDER 1623-822442A83 (BLACK) OR 1623-822442A84 (GRAY) AND 828830A1 REVERSE GEAR BEARING ADAPTOR
    GEAR HOUSING
    (BASIC-GRAY) WHEN STOCK IS DEPLETED, ORDER 1623-822442A83 (BLACK) OR 1623-822442A84 (GRAY) AND 828830A1 REVERSE GEAR BEARING ADAPTOR
  • 59
    31-15841 ROLLER BEARING
    ROLLER BEARING
  • 60
    12-17616 THRUST RING
    THRUST RING
  • 61
    818292A1 BEARING ADAPTOR ASSEMBLY
    BEARING ADAPTOR ASSEMBLY
  • 62
    31-814653T ROLLER BEARING
    ROLLER BEARING
  • 63
    12-18448 THRUST WASHER
    THRUST WASHER
  • 64
    31-15842 THRUST BEARING
    THRUST BEARING
  • 65
    8182911 THRUST RACE
    THRUST RACE
  • 66
    814605 KEEPER
    KEEPER
  • 67
    25-31534 O RING
    O RING
  • 68
    818290T1 BEARING CARRIER ASSEMBLY
    BEARING CARRIER ASSEMBLY
  • 69
    31-30956T ROLLER BEARING
    ROLLER BEARING
  • 70
    26-14077 OIL SEAL (INSIDE)
    OIL SEAL (INSIDE)
  • 71
    26-76868 OIL SEAL (OUTSIDE)
    OIL SEAL (OUTSIDE)
  • 72
    14-18323 TAB WASHER
    TAB WASHER
  • 73
    8M2000347 COVER
    COVER
  • 74
    97-76214Q5 ANODIC PLATE
    THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR REPLACEMENT
    ANODIC PLATE
    THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR REPLACEMENT
  • 75
    10-806327 SCREW
    THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR REPLACEMENT
    SCREW
    THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR REPLACEMENT
  • 76
    12-835467Q01 THRUST HUB
    THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR REPLACEMENT
    THRUST HUB
    THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR REPLACEMENT
  • 77
    13-423511 LOCKWASHER
    THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR REPLACEMENT
    LOCKWASHER
    THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR REPLACEMENT
  • 78
    12-31211Q03 WASHER
    THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR REPLACEMENT
    WASHER
    THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR REPLACEMENT
  • 79
    14-816629Q TAB WASHER
    THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR REPLACEMENT
    TAB WASHER
    THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR REPLACEMENT
  • 80
    11-52707Q1 PROPELLER NUT
    THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR REPLACEMENT
    PROPELLER NUT
    THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR REPLACEMENT
  • -
    26-816575A5 G/H SEAL KIT
    G/H SEAL KIT
