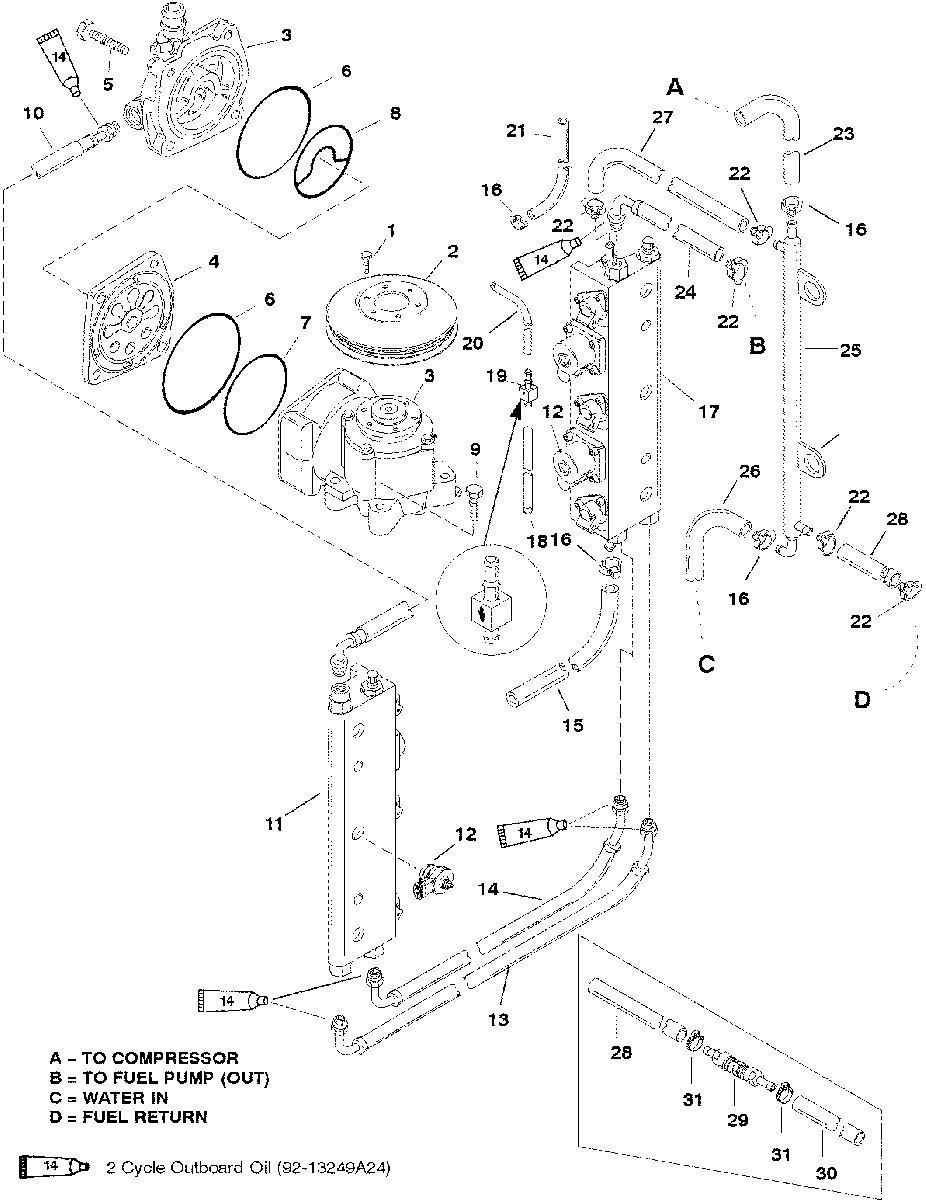

FUEL RAILS для Mercury - 200 (DFI) 0G386496 THRU 0G589999

  • №
    Артикул
    Название
  • 1
    10-82130012 SCREW
    SCREW
  • 2
    828223 PULLEY
    PULLEY
  • 3
    828123A5 AIR COMPRESSOR
    AIR COMPRESSOR
  • 4
    828293A3 REED PLATE KIT
    REED PLATE KIT
  • 5
    10-81893435 SCREW (M8 X 35)
    SCREW (M8 X 35)
  • 6
    25-67207 O RING
    O RING
  • 7
    25-832804 O RING
    O RING
  • 8
    26-828225 SEAL
    SEAL
  • 9
    10-81893450 SCREW
    SCREW
  • 10
    32-830018A1 HOSE
    HOSE
  • 11
    828126T2 FUEL RAIL
    (STARBOARD) (INCLUDES TRACKER VALVE)
    FUEL RAIL
    (STARBOARD) (INCLUDES TRACKER VALVE)
  • 12
    828812T INJECTOR
    (DIRECT)
    INJECTOR
    (DIRECT)
  • -
    26-804875 SEAL KIT
    SEAL KIT
  • 13
    32-830020 HOSE
    HOSE
  • 14
    32-831859 HOSE
    HOSE
  • 15
    32-1350385 TUBING (8 IN.)
    TUBING (8 IN.)
  • 16
    54-816311T STA-STRA
    STA-STRA
  • 17
    828125T2 FUEL RAIL
    (PORT)(INCLUDES REGULATORS)
    FUEL RAIL
    (PORT)(INCLUDES REGULATORS)
  • 18
    32-8M0108355 TUBING (11 IN.)
    TUBING (11 IN.)
  • 19
    21-826810 CHECK VALVE
    CHECK VALVE
  • 20
    32-8M0108349 TUBING (2-1/2 IN.)
    TUBING (2-1/2 IN.)
  • 21
    32-9912688 TUBING (8 IN.)
    TUBING (8 IN.)
  • 22
    54-850241 CLAMP
    CLAMP
  • 23
    32-834757 HOSE
    HOSE
  • 24
    32-830019 HOSE
    HOSE
  • 25
    833126 FUEL COOLER
    FUEL COOLER
  • 26
    32-833159 HOSE
    HOSE
  • 27
    32-833160 HOSE (MOLDED)
    MOLDED HOSES HAVE BEEN REPLACED WITH CHECK VALVE DESIGN LISTED BELOW
    HOSE (MOLDED)
    MOLDED HOSES HAVE BEEN REPLACED WITH CHECK VALVE DESIGN LISTED BELOW
  • 28
    32-83476463 HOSE (MOLDED)
    MOLDED HOSES HAVE BEEN REPLACED WITH CHECK VALVE DESIGN LISTED BELOW
    HOSE (MOLDED)
    MOLDED HOSES HAVE BEEN REPLACED WITH CHECK VALVE DESIGN LISTED BELOW
  • 27
    32-1350385 TUBING (8 IN.)
    CHECK VALVE DESIGN
    TUBING (8 IN.)
    CHECK VALVE DESIGN
  • 28
    32-1350385 TUBING (19 IN.)
    CHECK VALVE DESIGN
    TUBING (19 IN.)
    CHECK VALVE DESIGN
  • 29
    21-851974A1 CHECK VALVE
    CHECK VALVE DESIGN
    CHECK VALVE
    CHECK VALVE DESIGN
  • 30
    32-1350385 TUBING (8 IN.)
    CHECK VALVE DESIGN
    TUBING (8 IN.)
    CHECK VALVE DESIGN
  • 31
    54-13791 CLAMP
    CHECK VALVE DESIGN
    CLAMP
    CHECK VALVE DESIGN
