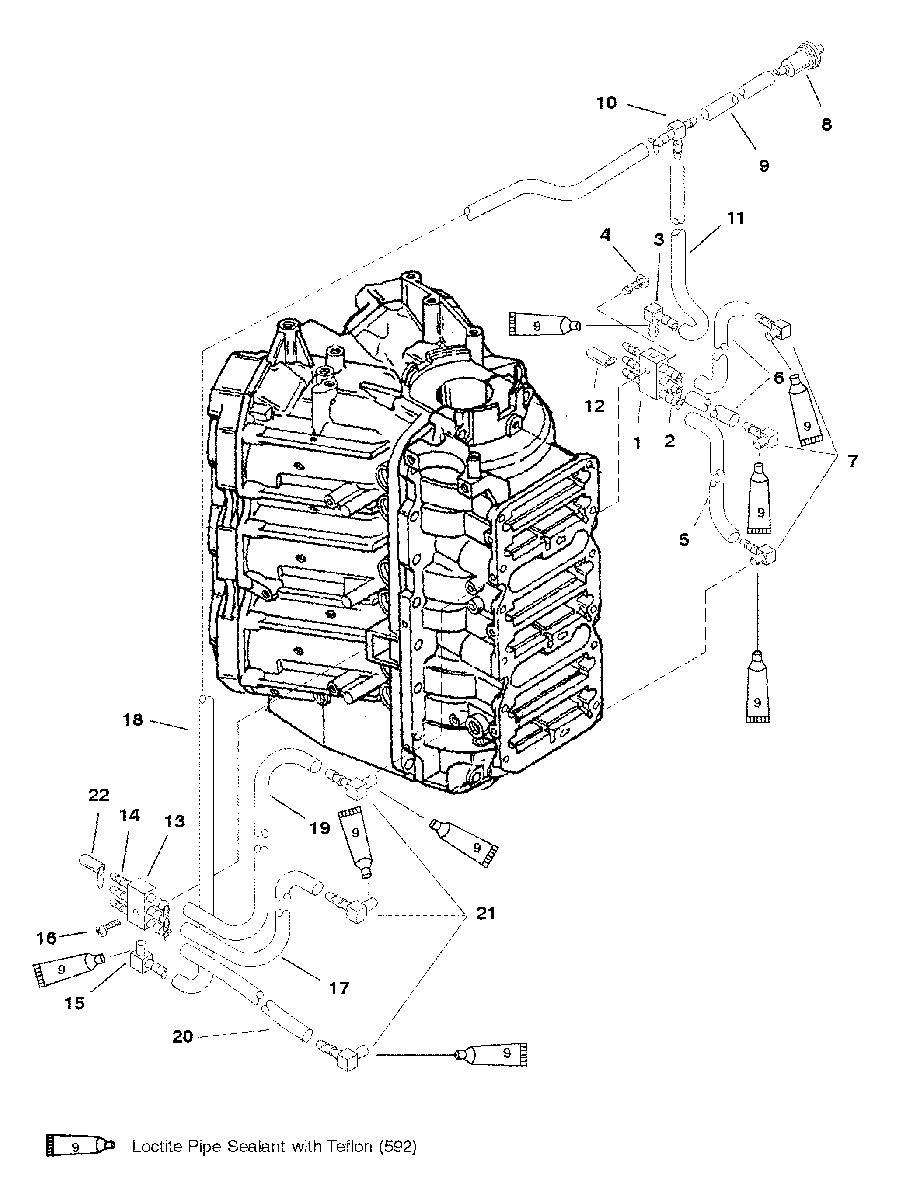

BLEED SYSTEM для Mercury - 200 (DFI) 0G386496 THRU 0G589999

  • №
    Артикул
    Название
  • 1
    827210A1 MANIFOLD-BLEED SYSTEM
    PORT
    MANIFOLD-BLEED SYSTEM
    PORT
  • 2
    21-426233 CHECK VALVE
    PORT
    CHECK VALVE
    PORT
  • 3
    22-15133 ELBOW
    PORT
    ELBOW
    PORT
  • 4
    10-92051 SCREW (10-16 X 3/4 IN.)
    PORT
    SCREW (10-16 X 3/4 IN.)
    PORT
  • 5
    32-892024122 TUBING (9 IN.)
    PORT
    TUBING (9 IN.)
    PORT
  • 6
    32-892024122 TUBING (5-1/4 IN.)
    PORT
    TUBING (5-1/4 IN.)
    PORT
  • 7
    22-768431 FITTING
    (SHOWN AS REF. 10 ON "CYLIDER BLOCK AND END CAP" ) PORT
    FITTING
    (SHOWN AS REF. 10 ON "CYLIDER BLOCK AND END CAP" ) PORT
  • 8
    35-8M0042285 FUEL FILTER
    PORT
    FUEL FILTER
    PORT
  • 9
    32-9912688 TUBING (2-3/4 IN.)
    PORT
    TUBING (2-3/4 IN.)
    PORT
  • 10
    22-827200 FITTING-TEE
    PORT
    FITTING-TEE
    PORT
  • 11
    32-892024122 TUBING (9-1/2 IN.)
    PORT
    TUBING (9-1/2 IN.)
    PORT
  • 12
    22-15026 CAP
    PORT
    CAP
    PORT
  • 13
    827210A1 MANIFOLD-BLEED SYSTEM
    STARBOARD
    MANIFOLD-BLEED SYSTEM
    STARBOARD
  • 14
    21-426233 CHECK VALVE
    STARBOARD
    CHECK VALVE
    STARBOARD
  • 15
    22-15133 ELBOW
    STARBOARD
    ELBOW
    STARBOARD
  • 16
    10-92051 SCREW (10-16 X 3/4 IN.)
    STARBOARD
    SCREW (10-16 X 3/4 IN.)
    STARBOARD
  • 17
    32-892024122 TUBING (5-1/4 IN.)
    STARBOARD
    TUBING (5-1/4 IN.)
    STARBOARD
  • 18
    32-892024122 TUBING (20-1/2 IN.)
    STARBOARD
    TUBING (20-1/2 IN.)
    STARBOARD
  • 19
    32-892024122 TUBING (7 IN.)
    STARBOARD
    TUBING (7 IN.)
    STARBOARD
  • 20
    32-892024122 TUBING (8-1/2 IN.)
    STARBOARD
    TUBING (8-1/2 IN.)
    STARBOARD
  • 21
    22-768431 FITTING
    (SHOWN AS REF. 10 ON "CYLIDER BLOCK AND END CAP" ) STARBOARD
    FITTING
    (SHOWN AS REF. 10 ON "CYLIDER BLOCK AND END CAP" ) STARBOARD
  • 22
    22-15026 CAP
    STARBOARD
    CAP
    STARBOARD
