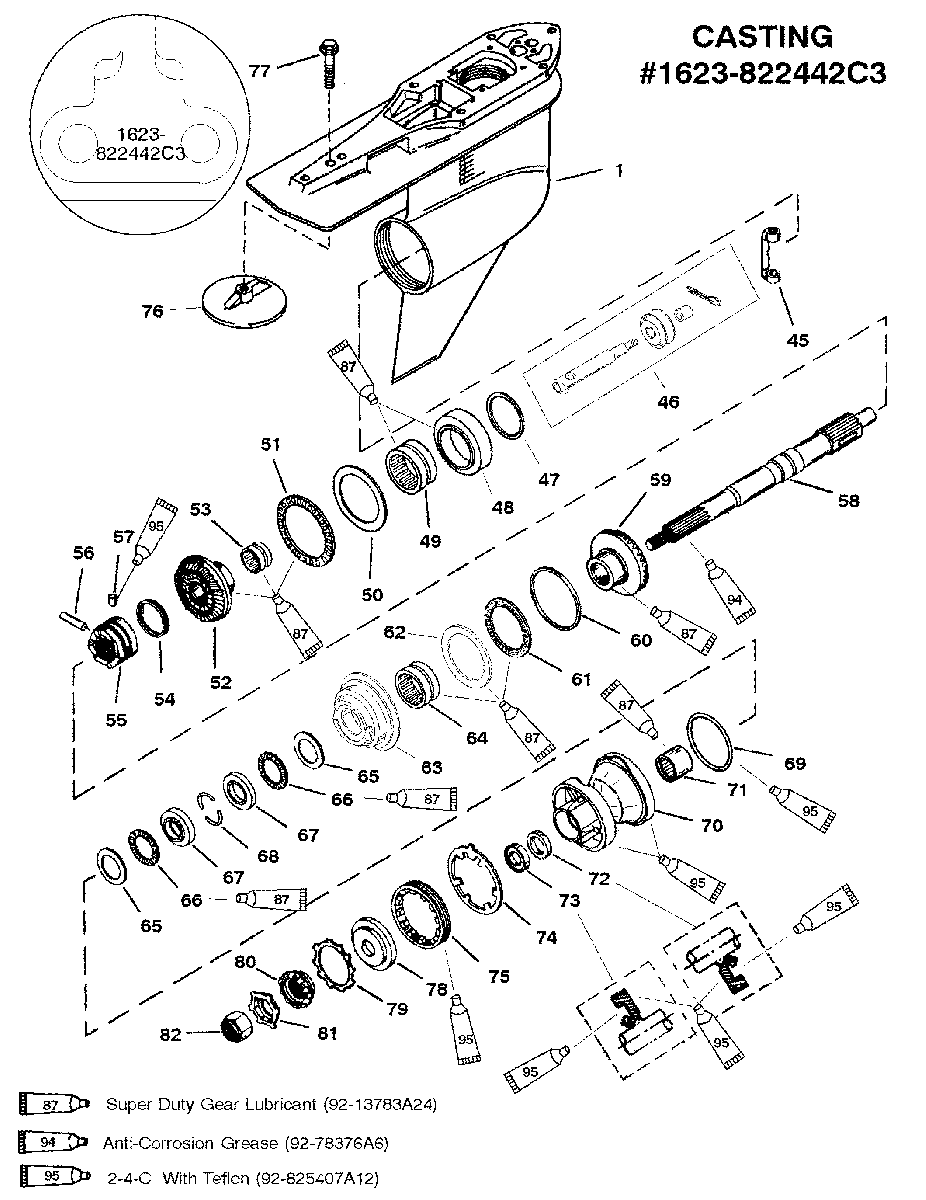

GEAR HSG(PROP SHAFT)COUNTER ROTATION(0G438000 & UP) для Mercury - 200 (DFI) 0G386496 THRU 0G589999
-
№АртикулНазвание
-
11623-822442T77 GEAR HOUSING
(BASIC-BLACK)GEAR HOUSING
(BASIC-BLACK) -
11623-822442T84 GEAR HOUSING
(BASIC-GRAY)GEAR HOUSING
(BASIC-GRAY) -
11623-822442T79 GEAR HOUSING
(BASIC-WHITE)GEAR HOUSING
(BASIC-WHITE) -
6131-815480 ROLLER BEARINGROLLER BEARING
-
6212-815481 THRUST RINGTHRUST RING
-
63828831A3 BEARING ADAPTOR ASSEMBLYBEARING ADAPTOR ASSEMBLY
-
6431-814653T ROLLER BEARINGROLLER BEARING
-
6512-18448 THRUST WASHERTHRUST WASHER
-
6631-15842 THRUST BEARINGTHRUST BEARING
-
678182911 THRUST RACETHRUST RACE
-
68814605 KEEPERKEEPER
-
6925-31534 O RINGO RING
-
70818290T8 BEARING CARRIER ASSEMBLYBEARING CARRIER ASSEMBLY
-
7131-30956T ROLLER BEARINGROLLER BEARING
-
7226-14077 OIL SEAL (INSIDE)OIL SEAL (INSIDE)
-
7326-76868 OIL SEAL (OUTSIDE)OIL SEAL (OUTSIDE)
-
7414-18323 TAB WASHERTAB WASHER
-
758M2000347 COVERCOVER
-
7697-76214Q5 ANODIC PLATE
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR REPLACEMENTANODIC PLATE
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR REPLACEMENT -
7710-806327 SCREW
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR REPLACEMENTSCREW
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR REPLACEMENT -
7812-835467Q01 THRUST HUB
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR REPLACEMENTTHRUST HUB
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR REPLACEMENT -
7913-423511 LOCKWASHER
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR REPLACEMENTLOCKWASHER
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR REPLACEMENT -
8012-31211Q03 WASHER
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR REPLACEMENTWASHER
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR REPLACEMENT -
8114-816629Q TAB WASHER
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR REPLACEMENTTAB WASHER
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR REPLACEMENT -
8211-52707Q1 PROPELLER NUT
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR REPLACEMENTPROPELLER NUT
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR REPLACEMENT -
-26-816575A4 G/H SEAL KITG/H SEAL KIT
