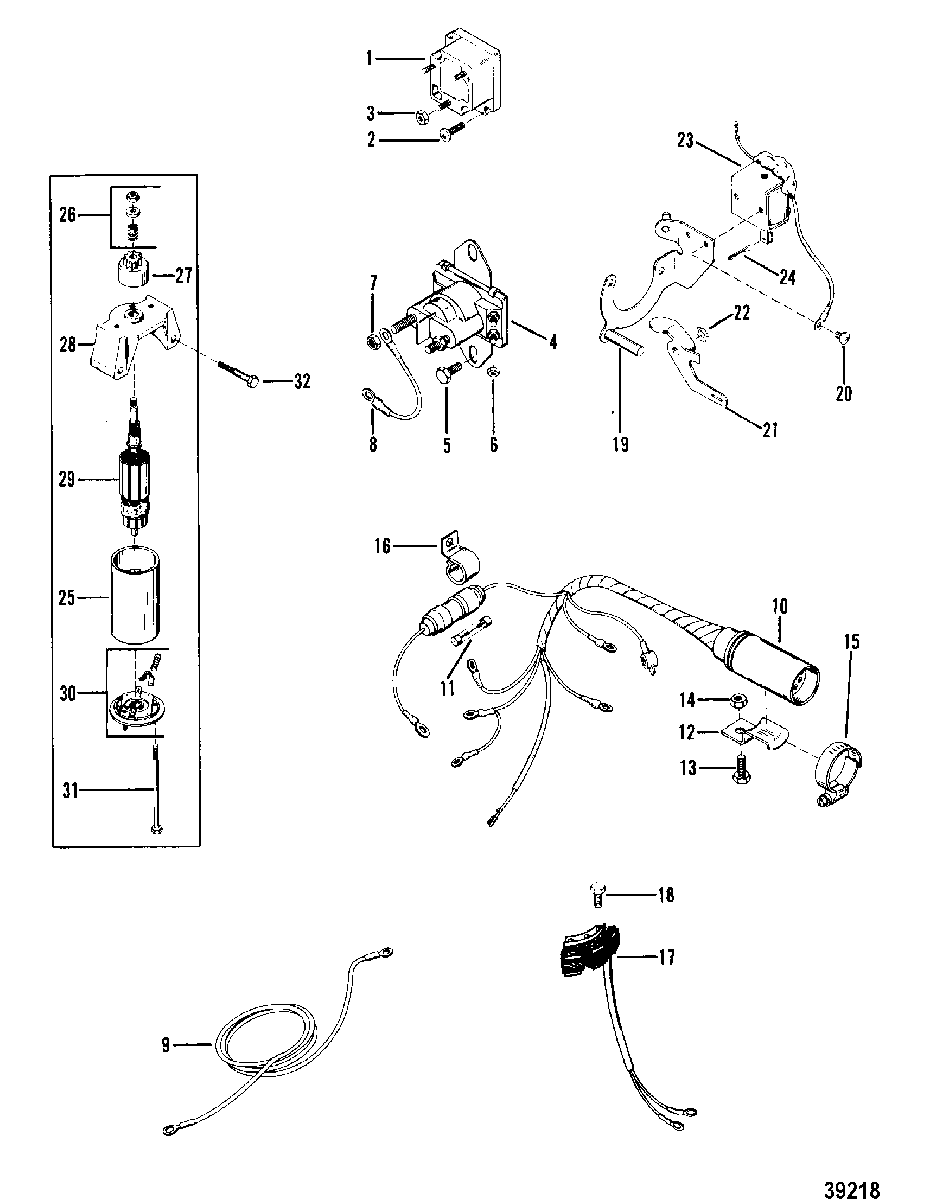

ELECTRIC COMPONENTS(ELECTRIC) для Mercury - 18 8071973 & Up
-
№АртикулНазвание
-
18M0058226 RECTIFIER ASSEMBLYRECTIFIER ASSEMBLY
-
210-48409 SCREW, (#10-16 x .625) Stainless Steel, RECTIFIER TO CYLINDER BLOCKSCREW, (#10-16 x .625) Stainless Steel, RECTIFIER TO CYLINDER BLOCK
-
311-45076 NUT, (#10-32) Brass, RECTIFIER TERMINALSNUT, (#10-32) Brass, RECTIFIER TERMINALS
-
489-96054T SOLENOID, StarterSOLENOID, Starter
-
510-4000327 SCREW, (M6 x 14)SCREW, (M6 x 14)
-
611-26419 NUT, (#8-32) Brass, STARTER SOLENOID TERMINAL (10-32)NUT, (#8-32) Brass, STARTER SOLENOID TERMINAL (10-32)
-
711-64015 NUT, (.250-20), STARTER SOLENOID TERMINAL (1/4-20)NUT, (.250-20), STARTER SOLENOID TERMINAL (1/4-20)
-
884-88809A5 WIRE ASSEMBLY, YELLOWWIRE ASSEMBLY, YELLOW
-
984-88439A27 CABLE ASSEMBLY, Battery, REDCABLE ASSEMBLY, Battery, RED
-
984-88439A28 CABLE ASSEMBLY, Battery, BLACKCABLE ASSEMBLY, Battery, BLACK
-
1084-92436A5 HARNESS ASSEMBLY, ENGINEHARNESS ASSEMBLY, ENGINE
-
1188-95085 FUSEFUSE
-
1292439 BRACKET, WIRING HARNESSBRACKET, WIRING HARNESS
-
1310-4000327 SCREW, (M6 x 14), BRACKETSCREW, (M6 x 14), BRACKET
-
1411-400212 NUT, (M6) Stainless Steel, BRACKET SCREWNUT, (M6) Stainless Steel, BRACKET SCREW
-
1554-815504310 CLAMP, WIRING HARNESSCLAMP, WIRING HARNESS
-
1654-55098 J CLIP, WIRING HARNESSJ CLIP, WIRING HARNESS
-
1786704A10 STATOR ASSEMBLY, AUXILIARYSTATOR ASSEMBLY, AUXILIARY
-
1810-4000123 SCREW, (M5 x 30), STATOR ATTACHINGSCREW, (M5 x 30), STATOR ATTACHING
-
1994301A1 PLATE ASSEMBLY, CHOKE KNOBPLATE ASSEMBLY, CHOKE KNOB
-
2010-95088 SCREW, PLATE TO SOLENOIDSCREW, PLATE TO SOLENOID
-
2195020 LEVER, CHOKELEVER, CHOKE
-
2253-95019 RING, Retaining, CHOKE LEVER TO PLATERING, Retaining, CHOKE LEVER TO PLATE
-
2389-94973A3 SOLENOID ASSEMBLYSOLENOID ASSEMBLY
-
2418-210711 COTTER PIN, CHOKE LEVER TO SOLENOIDCOTTER PIN, CHOKE LEVER TO SOLENOID
-
2550-8M0033984 STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
2696561 DRIVE KITDRIVE KIT
-
2796562 DRIVEDRIVE
-
2896563T END CAPEND CAP
-
2996565 ARMATUREARMATURE
-
3096564T END CAP, COMMUTATOR W/SPRINGS AND BRUSHESEND CAP, COMMUTATOR W/SPRINGS AND BRUSHES
-
3110-96566 THRU BOLTTHRU BOLT
-
3210-4000358 SCREW, (M8 x 50), STARTER MOTOR ATTACHINGSCREW, (M8 x 50), STARTER MOTOR ATTACHING
Все узлы модели:
- CARBURETOR ASSEMBLY
- CLAMP BRACKET ASSEMBLY
- COWLS
- CRANKSHAFT, PISTONS AND FLYWHEEL
- CYLINDER BLOCK AND COVER
- DRIVESHAFT HOUSING ASSEMBLY
- • ELECTRIC COMPONENTS(ELECTRIC)
- ELECTRICAL COMPONENTS(BELGIUM ENGINES)
- FUEL FILTER ASSEMBLY
- GEAR HOUSING(DRIVESHAFT)
- GEAR HOUSING(PROPELLER SHAFT)
- IGNITION COMPONENTS
- MISCELLANEOUS PARTS/ACCESSORIES
- STARTER ASSEMBLY, MANUAL
- STEERING HANDLE ASSEMBLY(MANUAL)
- SWIVEL BRACKET ASSEMBLY
- THROTTLE AND SHIFT LINKAGE(ELECTRIC)
- THROTTLE AND SHIFT LINKAGE(MANUAL)
