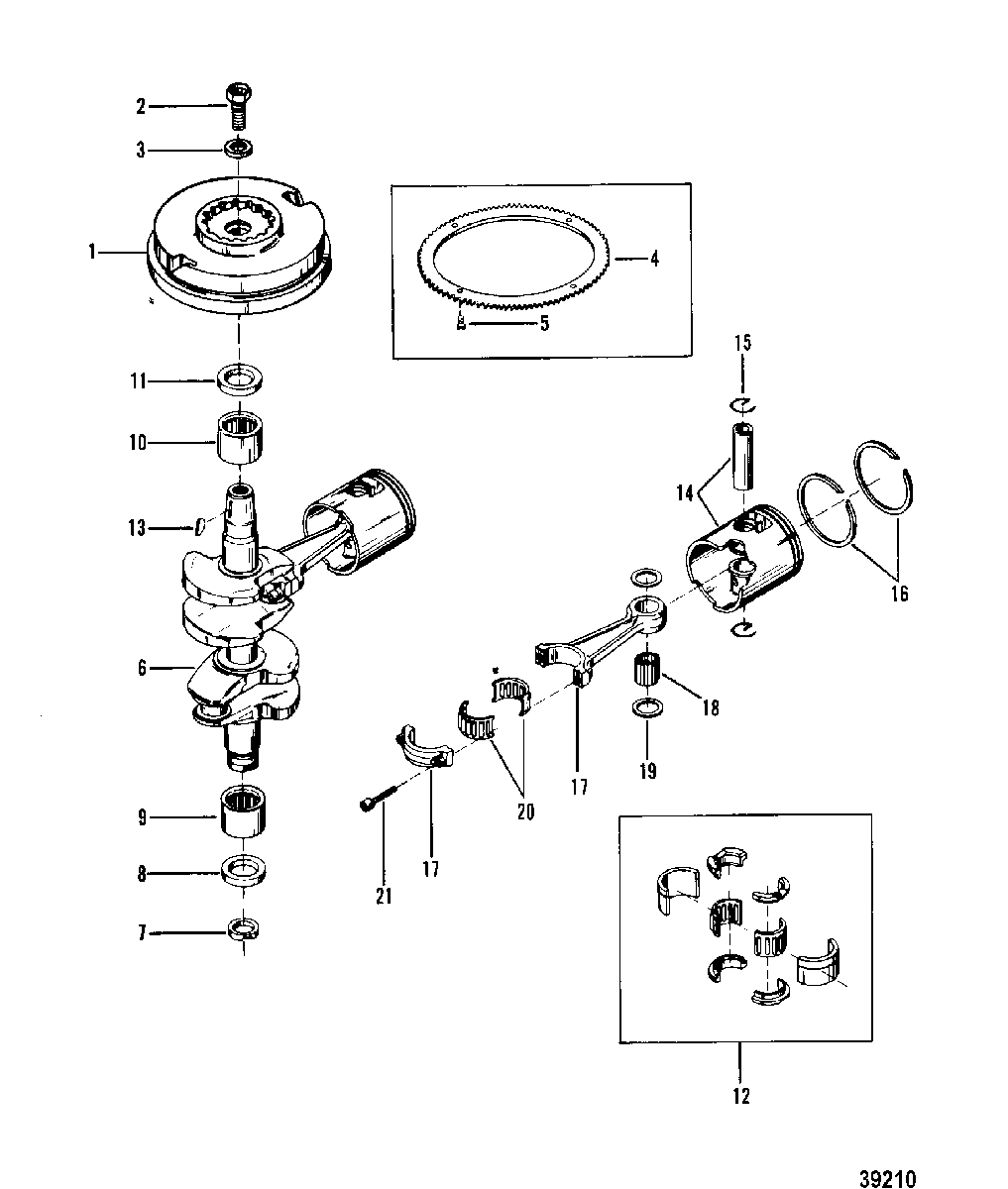

CRANKSHAFT, PISTONS AND FLYWHEEL для Mercury - 18 8071973 & Up

  • №
    Артикул
    Название
  • 1
    258-859232T15 FLYWHEEL ASSEMBLY
    FLYWHEEL ASSEMBLY
  • 2
    10-97359A1 SCREW ASSEMBLY, FLYWHEEL TO CRANKSHAFT
    SCREW ASSEMBLY, FLYWHEEL TO CRANKSHAFT
  • 3
    12-86496 WASHER, FLYWHEEL SCREW
    WASHER, FLYWHEEL SCREW
  • 4
    43-99301 RING GEAR, FLYWHEEL
    Electric SN# USA-6043400/Australia-8073792/Belgium-9340115/Canada-7185897 & Below
    RING GEAR, FLYWHEEL
    Electric SN# USA-6043400/Australia-8073792/Belgium-9340115/Canada-7185897 & Below
  • 4
    43-99301 RING GEAR, FLYWHEEL
    Electric SN# USA-6043401/Belgium-9340116/Canada-7185898 & Up
    RING GEAR, FLYWHEEL
    Electric SN# USA-6043401/Belgium-9340116/Canada-7185898 & Up
  • 5
    10-88190313 SCREW, (M5 x 13), RING GEAR TO FLYWHEEL
    Electric
    SCREW, (M5 x 13), RING GEAR TO FLYWHEEL
    Electric
  • 6
    464-8978T2 CRANKSHAFT ASSEMBLY
    CRANKSHAFT ASSEMBLY
  • 7
    85981 SEAL, Crankshaft
    SEAL, Crankshaft
  • 8
    26-85107 SEAL, Oil
    SEAL, Oil
  • 9
    31-85113T BEARING, Roller, CRANKSHAFT - LOWER
    BEARING, Roller, CRANKSHAFT - LOWER
  • 10
    31-85114T BEARING, Roller - Upper, CRANKSHAFT
    BEARING, Roller - Upper, CRANKSHAFT
  • 11
    26-859741 SEAL, Oil, CRANKSHAFT - UPPER
    SEAL, Oil, CRANKSHAFT - UPPER
  • 12
    8M0113968 BEARING ASSEMBLY, CENTER MAIN
    BEARING ASSEMBLY, CENTER MAIN
  • 13
    28-20094 KEY, Woodruff, FLYWHEEL DRIVE
    KEY, Woodruff, FLYWHEEL DRIVE
  • 14
    872-9533T38 PISTON ASSEMBLY
    PISTON ASSEMBLY
  • 15
    40-828119 LOCK RING, PISTON PIN
    LOCK RING, PISTON PIN
  • 16
    39-8M0096518 RING SET, Piston
    RING SET, Piston
  • 17
    630-8329A2 CONNECTING ROD ASSEMBLY
    SN# USA-6239752/Belgium-9378115/Canada-7200762 & Below
    CONNECTING ROD ASSEMBLY
    SN# USA-6239752/Belgium-9378115/Canada-7200762 & Below
  • 17
    630-8835A4 CONNECTING ROD ASSEMBLY
    SN# USA-6239753/Belgium-9378116/Canada-7200763 & Up
    CONNECTING ROD ASSEMBLY
    SN# USA-6239753/Belgium-9378116/Canada-7200763 & Up
  • 18
    29-20063 BEARING, Needle, PISTON END
    SN# USA-6239752/Belgium-9378115/Canada-7200762 & Below
    BEARING, Needle, PISTON END
    SN# USA-6239752/Belgium-9378115/Canada-7200762 & Below
  • 18
    29-98295 BEARING, Needle, PISTON END
    SN# USA-6239753/Belgium-9378116/Canada-7200763 & Up
    BEARING, Needle, PISTON END
    SN# USA-6239753/Belgium-9378116/Canada-7200763 & Up
  • 19
    12-85175 WASHER, LOCATING - NEEDLE BEARING
    SN# USA-6239752/Belgium-9378115/Canada-7200762 & Below
    WASHER, LOCATING - NEEDLE BEARING
    SN# USA-6239752/Belgium-9378115/Canada-7200762 & Below
  • 19
    12-8M0012294 WASHER, LOCATING - NEEDLE BEARING
    SN# USA-6239753/Belgium-9378116/Canada-7200763 & Up
    WASHER, LOCATING - NEEDLE BEARING
    SN# USA-6239753/Belgium-9378116/Canada-7200763 & Up
  • 20
    31-879877A1 BEARING ASSEMBLY, Roller
    BEARING ASSEMBLY, Roller
  • 21
    10-4008225 SCREW, CONNECTING ROD (25MM)
    SN# USA-6239752/Belgium-9378115/Canada-7200762 & Below
    SCREW, CONNECTING ROD (25MM)
    SN# USA-6239752/Belgium-9378115/Canada-7200762 & Below
  • 21
    10-4008225 SCREW, (M6 x 25), CONNECTING ROD
    SN# USA-6239753/Belgium-9378116/Canada-7200763 & Up
    SCREW, (M6 x 25), CONNECTING ROD
    SN# USA-6239753/Belgium-9378116/Canada-7200763 & Up
  • 22
    27-85168A80 GASKET SET
    GASKET SET
  • -
    879732T89 POWERHEAD ASSEMBLY
    POWERHEAD ASSEMBLY
