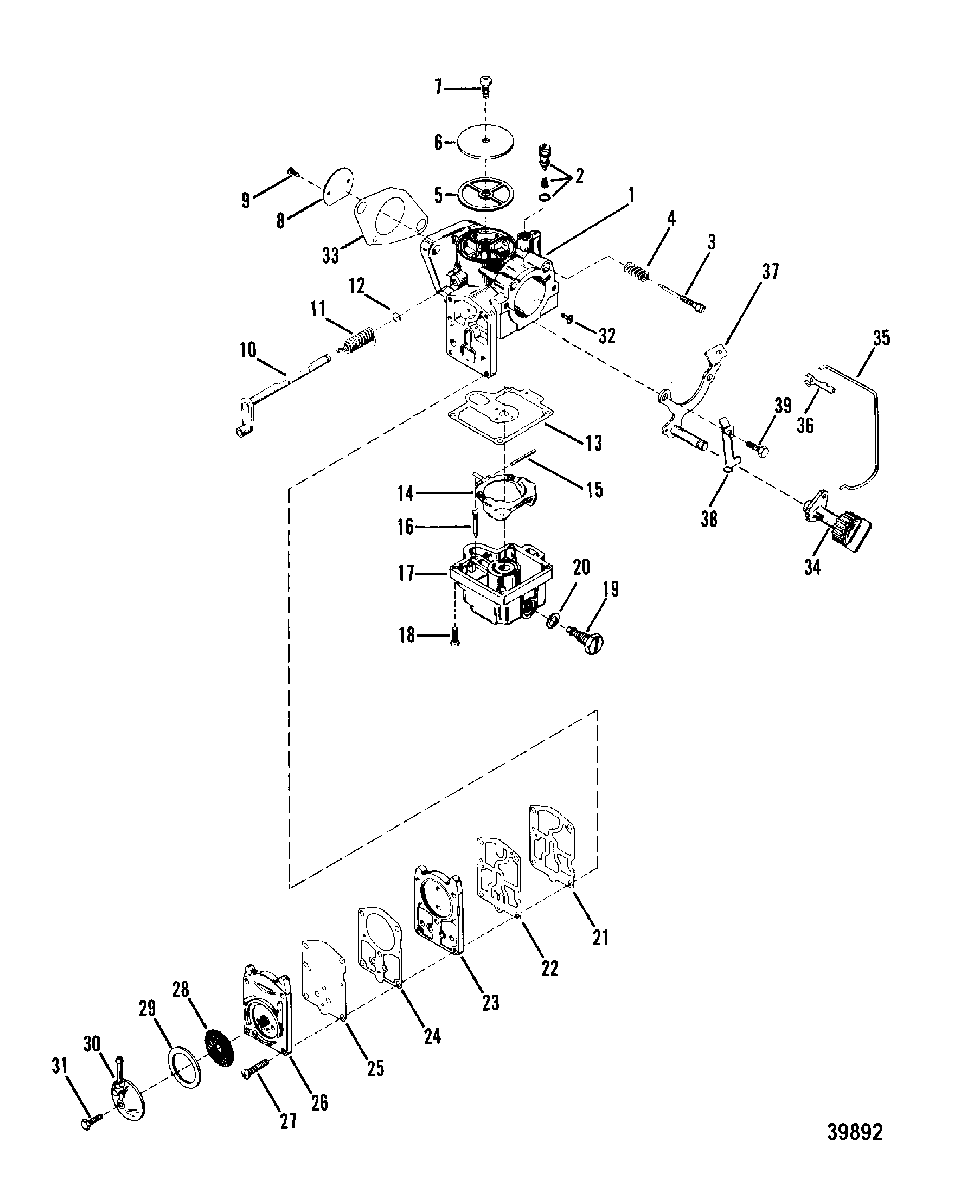

CARBURETOR ASSEMBLY для Mercury - 18 8071973 & Up
-
№АртикулНазвание
-
11390-8676A13 CARBURETOR ASSEMBLYCARBURETOR ASSEMBLY
-
21399-8138 VALVE, EnrichmentVALVE, Enrichment
-
31399-1713 SCREW, IDLESCREW, IDLE
-
4NSS NOT SOLD SEPARATE, Spring-idle screwNOT SOLD SEPARATE, Spring-idle screw
-
5NSS NOT SOLD SEPARATE, Gasket, metering coverNOT SOLD SEPARATE, Gasket, metering cover
-
61399-8145 COVER, METERINGCOVER, METERING
-
71399-8146 SCREW, METERING COVERSCREW, METERING COVER
-
81399-8322 SHUTTER, ThrottleSHUTTER, Throttle
-
9NSS NOT SOLD SEPARATE, Screw, throttle shutterNOT SOLD SEPARATE, Screw, throttle shutter
-
101399-8321 SHAFT, ThrottleSHAFT, Throttle
-
11NSS NOT SOLD SEPARATE, Spring, return - throttle shaftNOT SOLD SEPARATE, Spring, return - throttle shaft
-
12NSS NOT SOLD SEPARATE, E-Ring, throttle shaftNOT SOLD SEPARATE, E-Ring, throttle shaft
-
13NSS NOT SOLD SEPARATE, Gasket, fuel bowlNOT SOLD SEPARATE, Gasket, fuel bowl
-
141390-8676A13 FLOATFLOAT
-
15NSS NOT SOLD SEPARATE, Float PinNOT SOLD SEPARATE, Float Pin
-
161399-8143 NEEDLE AND SEAT, InletNEEDLE AND SEAT, Inlet
-
171399-8140 BOWL, FuelBOWL, Fuel
-
181399-8141 SCREW, FUEL BOWLSCREW, FUEL BOWL
-
191399-8323 JET, Main (.052)JET, Main (.052)
-
191399-8325 JET, Main (.046)JET, Main (.046)
-
1916608048 JET, Main (.048)JET, Main (.048)
-
1916608050 JET, Main (.050)JET, Main (.050)
-
20NSS NOT SOLD SEPARATE, Gasket, main jetNOT SOLD SEPARATE, Gasket, main jet
-
21NSS NOT SOLD SEPARATE, Gasket, fuel pump diaphragmNOT SOLD SEPARATE, Gasket, fuel pump diaphragm
-
22NSS NOT SOLD SEPARATE, Diaphragm, fuel pumpNOT SOLD SEPARATE, Diaphragm, fuel pump
-
231399-8142 BODY, FUEL PUMPBODY, FUEL PUMP
-
24NSS NOT SOLD SEPARATE, Gasket, fuel pump diaphragmNOT SOLD SEPARATE, Gasket, fuel pump diaphragm
-
25NSS NOT SOLD SEPARATE, Diaphragm, fuel pumpNOT SOLD SEPARATE, Diaphragm, fuel pump
-
261399-8147 BODY, STRAINERBODY, STRAINER
-
271399-8148 SCREW, STRAINER BODYSCREW, STRAINER BODY
-
281399-5758 SCREEN, STRAINERSCREEN, STRAINER
-
291399-5207 GASKET, STRAINER COVERGASKET, STRAINER COVER
-
3099941 COVER, STRAINERCOVER, STRAINER
-
311399-8150 SCREW, STRAINER COVERSCREW, STRAINER COVER
-
321395-7335 JET, (.098), BACK-DRAG
USED WITH BC2B CARBURETORJET, (.098), BACK-DRAG
USED WITH BC2B CARBURETOR -
321395-8423 JET, (.094), BACK-DRAG
USED WITH BC2B CARBURETORJET, (.094), BACK-DRAG
USED WITH BC2B CARBURETOR -
321399-6249 JET, Main (.096), BACK-DRAG
USED WITH BC2B CARBURETORJET, Main (.096), BACK-DRAG
USED WITH BC2B CARBURETOR -
3327-88004 GASKET, CARBURETORGASKET, CARBURETOR
-
3498183A1 KNOB ASSEMBLY, ChokeKNOB ASSEMBLY, Choke
-
3589762 ROD, ChokeROD, Choke
-
3654-89668 CLIP, CHOKE RODCLIP, CHOKE ROD
-
3789402A1 PLATE ASSEMBLY, CHOKE KNOB
MANUALPLATE ASSEMBLY, CHOKE KNOB
MANUAL -
3794301A1 PLATE ASSEMBLY, CHOKE KNOB
ELECTRICPLATE ASSEMBLY, CHOKE KNOB
ELECTRIC -
3892333 LINK, CHOKE DETENTLINK, CHOKE DETENT
-
3910-400018 SCREW, (M5 x 12)SCREW, (M5 x 12)
-
-1399-8153 REPAIR KIT, CarburetorREPAIR KIT, Carburetor
-
-1399-8154 GASKET KIT, CarburetorGASKET KIT, Carburetor
-
-27-85168A80 GASKET SETGASKET SET
