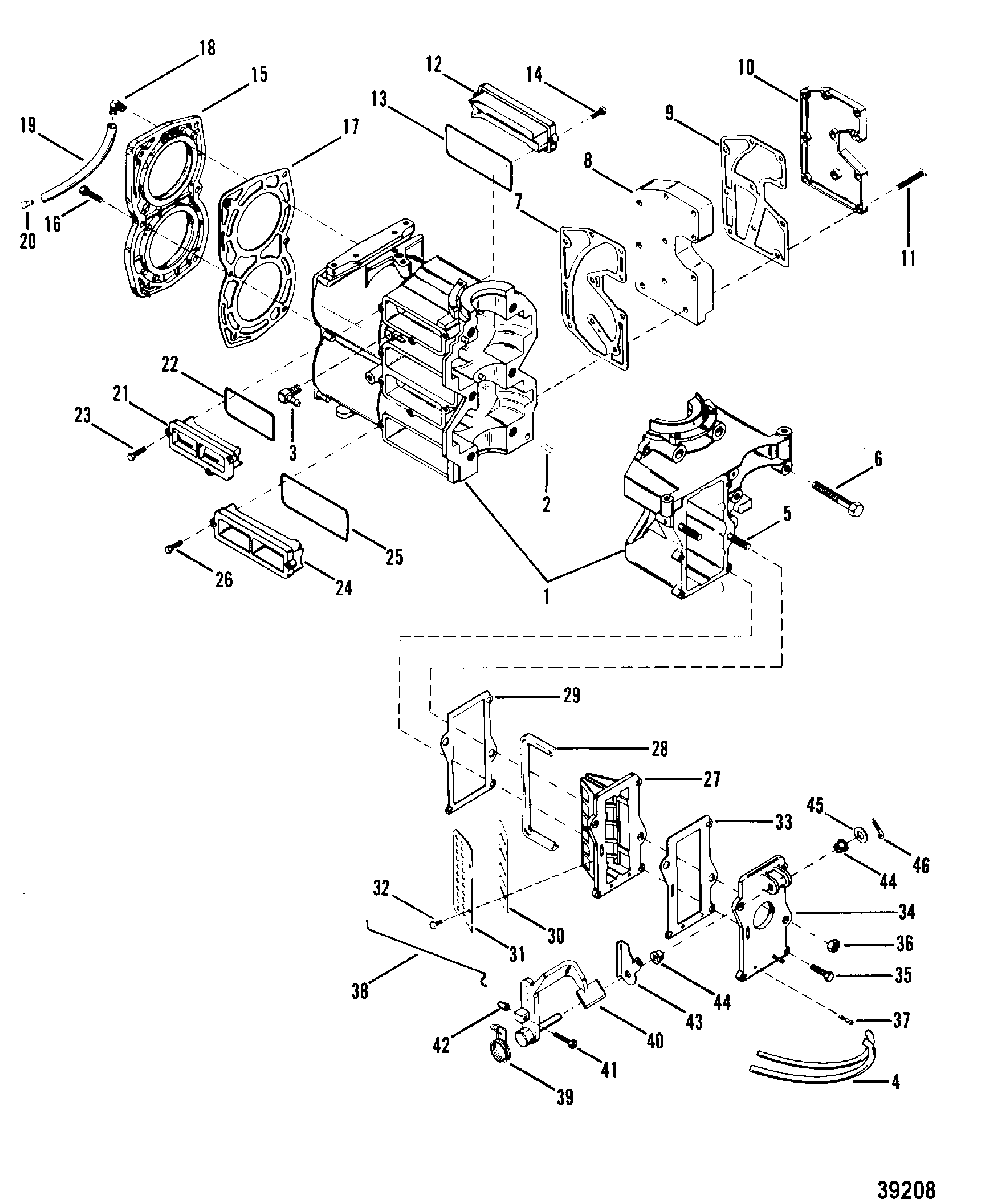

CYLINDER BLOCK AND COVER для Mercury - 18 8071973 & Up
-
№АртикулНазвание
-
1872-9533T38 CYLINDER BLOCK ASSEMBLY
SN# USA-6043400/Australia-8073792/Belgium-9340115/Canada-7185897 & BelowCYLINDER BLOCK ASSEMBLY
SN# USA-6043400/Australia-8073792/Belgium-9340115/Canada-7185897 & Below -
1872-9533T38 CYLINDER BLOCK ASSEMBLY
SN# USA-6043401/Belgium-9340116/Canada-7185898 & UpCYLINDER BLOCK ASSEMBLY
SN# USA-6043401/Belgium-9340116/Canada-7185898 & Up -
217-85171 PIN, Dowel, CYLINDER BLOCKPIN, Dowel, CYLINDER BLOCK
-
322-15133 ELBOW, BLEED HOSE (45)ELBOW, BLEED HOSE (45)
-
432-892024122 HOSE, BLEED (12-1/4")HOSE, BLEED (12-1/4")
-
516-429173 STUD, CARBURETORSTUD, CARBURETOR
-
610-40001209 SCREW, (M10 x 60)SCREW, (M10 x 60)
-
727-892158 GASKET, EXHAUST MANIFOLDGASKET, EXHAUST MANIFOLD
-
892329 MANIFOLD, ExhaustMANIFOLD, Exhaust
-
927-414991 GASKET, EXHAUST COVERGASKET, EXHAUST COVER
-
1092330T COVER, EXHAUSTCOVER, EXHAUST
-
1110-4000333 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
12144071 COVER, TRANSFER PORTCOVER, TRANSFER PORT
-
1325-822370 O-RING, TRANSFER PORT COVERO-RING, TRANSFER PORT COVER
-
1410-40057107 SCREW, (M5 x 16)SCREW, (M5 x 16)
-
151028-8283A1 COVER, CYLINDER BLOCK
USE WITH 25MM SCREWSCOVER, CYLINDER BLOCK
USE WITH 25MM SCREWS -
151028-8283A1 COVER ASEMBLY, CYLINDER BLOCK
USE WITH 30MM SCREWSCOVER ASEMBLY, CYLINDER BLOCK
USE WITH 30MM SCREWS -
1610-4000331 SCREW, (M6 x 30), COVER ATTACHING
USE WITH 30MM SCREWSSCREW, (M6 x 30), COVER ATTACHING
USE WITH 30MM SCREWS -
1610-4000330 SCREW, (M6 x 25), COVER ATTACHING
USE WITH 25MM SCREWSSCREW, (M6 x 25), COVER ATTACHING
USE WITH 25MM SCREWS -
1727-86389 GASKET, CYLINDER BLOCK COVERGASKET, CYLINDER BLOCK COVER
-
1822-996642 ELBOW, TELL TALE HOSEELBOW, TELL TALE HOSE
-
1932-8M0108355 HOSE, TELL TAL (8")HOSE, TELL TAL (8")
-
2022-94848 FITTING, TELL TALE HOSE - BOTTOM COWLFITTING, TELL TALE HOSE - BOTTOM COWL
-
2114406 COVER, TRANSFER PORTCOVER, TRANSFER PORT
-
2225-86391 O-RING, TRANSFER PORT COVERO-RING, TRANSFER PORT COVER
-
2310-40057107 SCREW, (M5 x 16)SCREW, (M5 x 16)
-
2492350 COVER, TRANSFER PORTCOVER, TRANSFER PORT
-
2525-33465 O-RING, TRANSFER PORT COVERO-RING, TRANSFER PORT COVER
-
2610-40057107 SCREW, (M5 x 16)SCREW, (M5 x 16)
-
2714112T REED BLOCKREED BLOCK
-
2885977002 SEAL, Rubber, REED BLOCKSEAL, Rubber, REED BLOCK
-
2927-414172 GASKET, REED BLOCKGASKET, REED BLOCK
-
3034-816806 REEDREED
-
3134-897931 STOP, ReedSTOP, Reed
-
3210-4005785 SCREW, (M4 x 10), REED ATTACHINGSCREW, (M4 x 10), REED ATTACHING
-
3327-414181 GASKET, ADAPTOR PLATEGASKET, ADAPTOR PLATE
-
3490785 PLATE, ADAPTOR - CARBURETORPLATE, ADAPTOR - CARBURETOR
-
3510-40019108 SCREW, (M5 x 20), PLATE TO REED BLOCKSCREW, (M5 x 20), PLATE TO REED BLOCK
-
3611-400213 NUT, (M8) Stainless Steel, CARBURETOR STUDNUT, (M8) Stainless Steel, CARBURETOR STUD
-
3722-56759 FITTING, Barbed, ADAPTOR PLATE - BLEED HOSEFITTING, Barbed, ADAPTOR PLATE - BLEED HOSE
-
3893879 IDLE WIREIDLE WIRE
-
3924-97176 SPRING, CHOKESPRING, CHOKE
-
4042545 LEVER, CHOKE/FAST IDLELEVER, CHOKE/FAST IDLE
-
4110-91073 SCREW, ADJUSTING - LEVER
USED WITH REF. #42SCREW, ADJUSTING - LEVER
USED WITH REF. #42 -
4110-91073 SCREW, ADJUSTING - LEVER
NOT USED WITH REF. #42SCREW, ADJUSTING - LEVER
NOT USED WITH REF. #42 -
4248039 CAP, ADJUSTING SCREW
USED WITH REF. #42CAP, ADJUSTING SCREW
USED WITH REF. #42 -
4343220A1 PLATE, DRIVER
USED WITH REF. #42PLATE, DRIVER
USED WITH REF. #42 -
4343220A1 PLATE ASSEMBLY, DRIVER
NOT USED WITH REF. #42PLATE ASSEMBLY, DRIVER
NOT USED WITH REF. #42 -
4423-26856 BUSHING, CHOKE/FAST IDLE LEVERBUSHING, CHOKE/FAST IDLE LEVER
-
4512-28463 WASHER, CHOKE/FAST IDLE LEVERWASHER, CHOKE/FAST IDLE LEVER
-
4618-93500 COTTER PIN, CHOKE/FAST IDLE LEVERCOTTER PIN, CHOKE/FAST IDLE LEVER
-
-27-85168A80 GASKET SETGASKET SET
