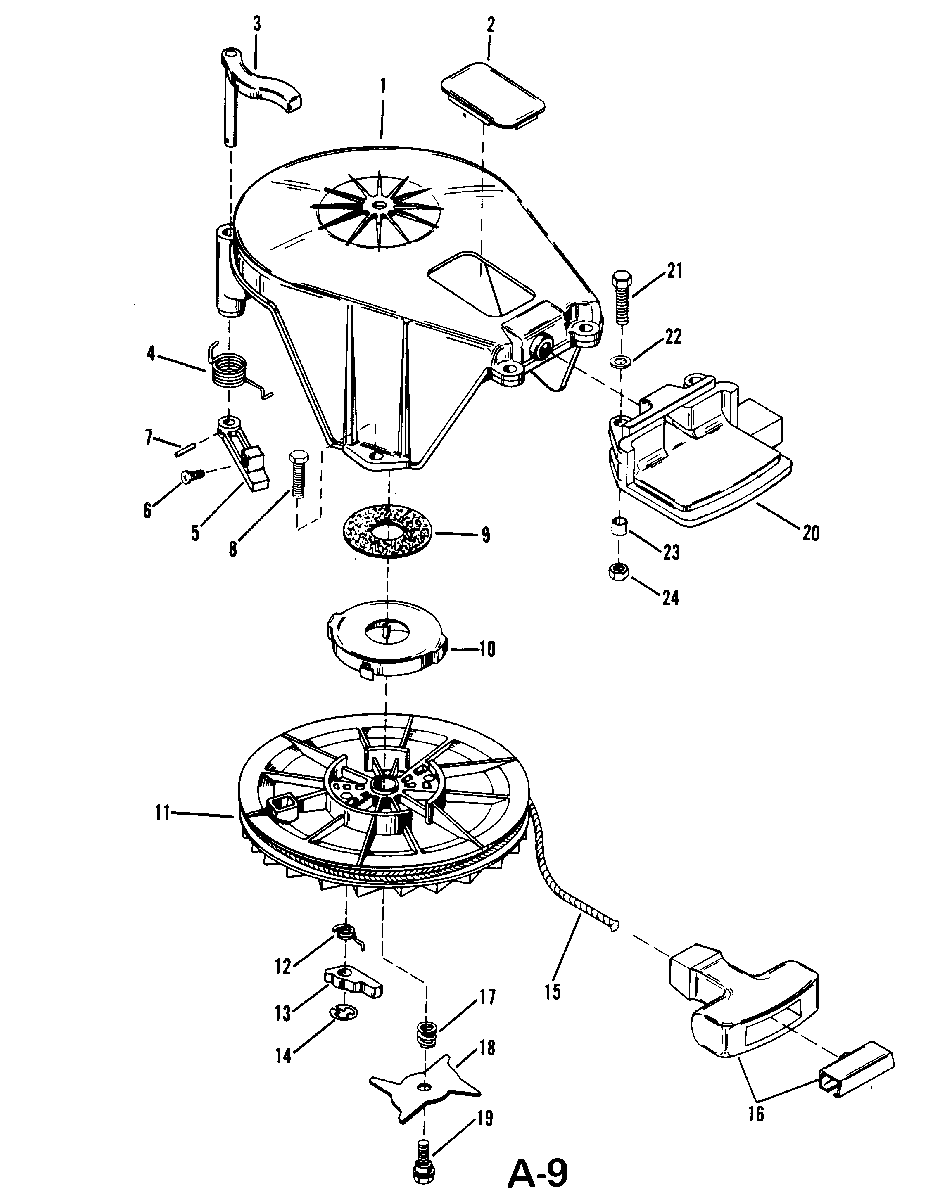

STARTER ASSEMBLY (MANUAL) для Mercury - 18 7207858 THRU 7209532
-
№АртикулНазвание
-
186689A5 HOUSING, STARTERHOUSING, STARTER
-
286971 COVER, STARTER HOUSINGCOVER, STARTER HOUSING
-
3858925 LEVER, LOCK (UPPER)LEVER, LOCK (UPPER)
-
424-12734 SPRING, UPPER LOCK LEVERSPRING, UPPER LOCK LEVER
-
593876T02 LEVER, LOCK (LOWER)LEVER, LOCK (LOWER)
-
610-61802 SCREW, LOWER LOCK LEVERSCREW, LOWER LOCK LEVER
-
717-38489 ROLL PIN, LOCK LEVERROLL PIN, LOCK LEVER
-
810-4000329 SCREW, STARTER HOUSING ATTACHING (20MM)SCREW, STARTER HOUSING ATTACHING (20MM)
-
810-4000183 SCREW, STARTER HOUSING ATTACHING (35MM)SCREW, STARTER HOUSING ATTACHING (35MM)
-
9833161T PAD, FELTPAD, FELT
-
1024-86857T01 SPRING, STARTERSPRING, STARTER
-
1150-825269T01 SHEAVE, STARTERSHEAVE, STARTER
-
1224-86851T02 SPRING, CAMSPRING, CAM
-
13868501 CAMCAM
-
1453-86849T01 RETAINING RING, CAMRETAINING RING, CAM
-
1550-12066Q10 ROPE, STARTERROPE, STARTER
-
1685174A1 HANDLE ASSEMBLY, STARTER ROPEHANDLE ASSEMBLY, STARTER ROPE
-
1724-868523 SPRING, CAMSPRING, CAM
-
1886853T01 CAMCAM
-
1910-826253 SCREW, CAM TO STARTER SHEAVESCREW, CAM TO STARTER SHEAVE
-
20426264 SUPPORT, STARTER HANDLESUPPORT, STARTER HANDLE
-
2110-40019111 SCREW, SUPPORT TO STARTER HOUSING (35MM)SCREW, SUPPORT TO STARTER HOUSING (35MM)
-
2212-4002313 WASHER, SUPPORT SCREWWASHER, SUPPORT SCREW
-
2323-309772 SPACER, SUPPORT SCREWSPACER, SUPPORT SCREW
-
2411-401385 NUT, SUPPORT SCREWNUT, SUPPORT SCREW
