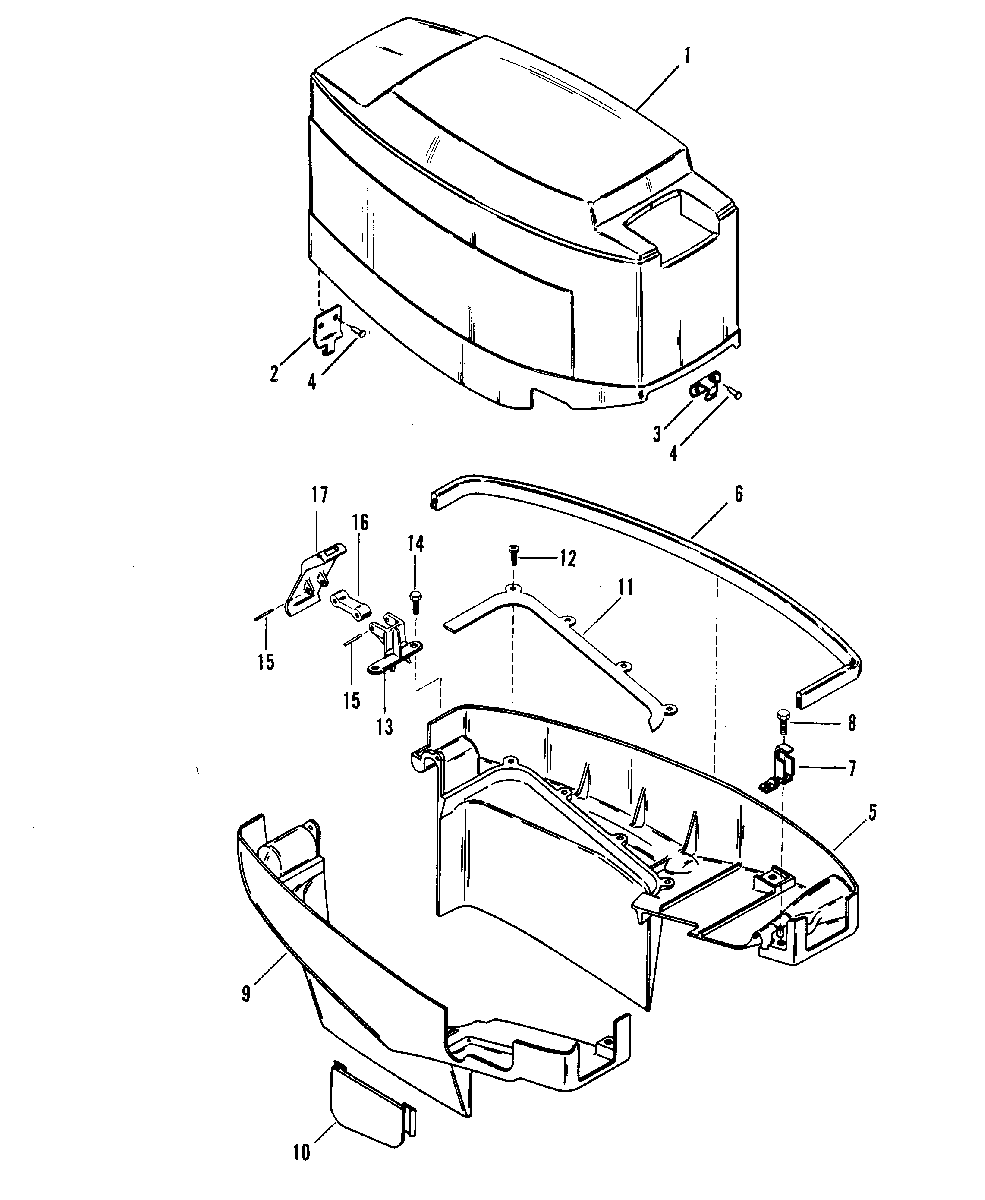

COWLS (HINGE ATTACHED W/2 SCREWS) для Mercury - 18 7207858 THRU 7209532
-
№АртикулНазвание
-
12190-9163A22 TOP COWL ASSEMBLYTOP COWL ASSEMBLY
-
243515 HINGE, COWL LATCHHINGE, COWL LATCH
-
343555 BRACKET, TOP COWLBRACKET, TOP COWL
-
410-400018 SCREW, HINGE TO TOP COWLSCREW, HINGE TO TOP COWL
-
52176-9107A2 BOTTOM COWL ASSEMBLY, PORTBOTTOM COWL ASSEMBLY, PORT
-
642274 SEAL, BOTTOM COWLSEAL, BOTTOM COWL
-
743514 LATCH, BOTTOM COWLLATCH, BOTTOM COWL
-
810-400018 SCREW, LATCH TO BOTTOM COWLSCREW, LATCH TO BOTTOM COWL
-
92176-9108A1 BOTTOM COWL ASSEMBLY, STARBOARDBOTTOM COWL ASSEMBLY, STARBOARD
-
1025-41604 GROMMET, BOTTOM COWLGROMMET, BOTTOM COWL
-
1115865 PLATE, BOTTOM COWLPLATE, BOTTOM COWL
-
1210-95700 SCREW, PLATE TO BOTTOM COWL (1/2")SCREW, PLATE TO BOTTOM COWL (1/2")
-
1343554A5 BRACKET, COWL LATCHBRACKET, COWL LATCH
-
1410-400018 SCREW, BRACKET TO BOTTOM COWL (12MM)SCREW, BRACKET TO BOTTOM COWL (12MM)
-
1517-25870 ROLL PIN, LINKROLL PIN, LINK
-
1643554A5 LINK, COWL LATCHLINK, COWL LATCH
-
1743554A5 LATCH, COWL - REARLATCH, COWL - REAR
-
--37-43170A84 DECAL SET (MERC 18)DECAL SET (MERC 18)
-
--37-13239A86 DECAL SET (MERC 25)DECAL SET (MERC 25)
