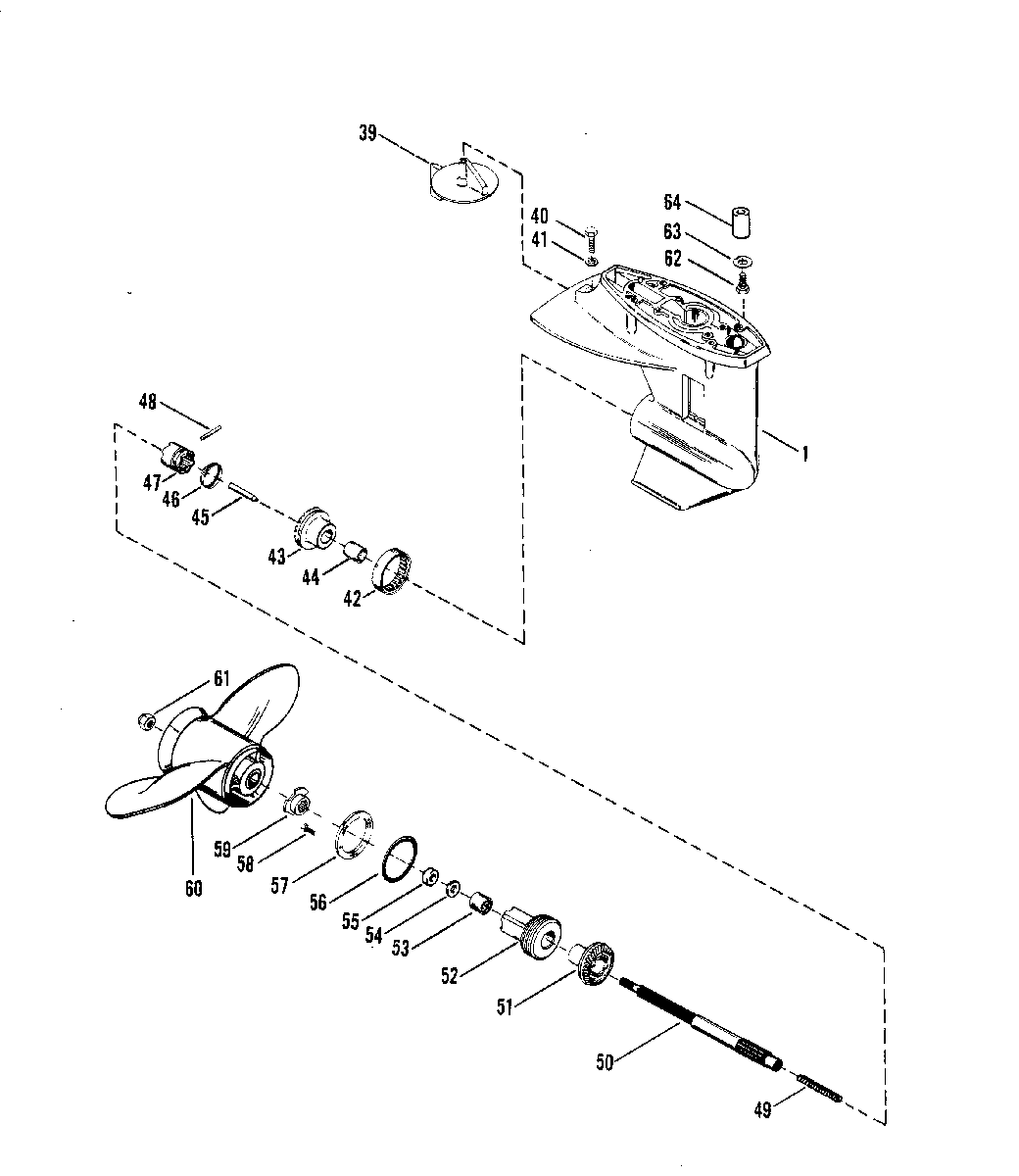

GEAR HOUSING (Prop Shaft) (Screw Inserted from Top) для Mercury - 18 7207858 THRU 7209532

  • №
    Артикул
    Название
  • -
    1665-8669T13 GEAR HOUSING ASSEMBLY, COMPLETE
    SHORT SHAFT
    GEAR HOUSING ASSEMBLY, COMPLETE
    SHORT SHAFT
  • -
    1665-8669T14 GEAR HOUSING ASSEMBLY, COMPLETE
    LONG SHAFT
    GEAR HOUSING ASSEMBLY, COMPLETE
    LONG SHAFT
  • 1
    1600-8M0083538 GEAR HOUSING ASSEMBLY
    GEAR HOUSING ASSEMBLY
  • 39
    97-98432Q6 TRIM TAB
    TRIM TAB
  • 40
    10-4000355 SCREW, TRIM TAB (35MM)
    SCREW, TRIM TAB (35MM)
  • 41
    12-8M0042642 WASHER, TRIM TAB SCREW
    WASHER, TRIM TAB SCREW
  • 42
    31-8M0103470 ROLLER BEARING ASSEMBLY, TAPERED
    ROLLER BEARING ASSEMBLY, TAPERED
  • 43
    43-44213T1 FORWARD GEAR
    FORWARD GEAR
  • 44
    23-85557 BUSHING, FORWARD GEAR
    BUSHING, FORWARD GEAR
  • 45
    85094 CAM FOLLOWER
    CAM FOLLOWER
  • 46
    24-38114 SPRING, RETAINING - CROSS PIN
    SPRING, RETAINING - CROSS PIN
  • 47
    52-41040T CLUTCH, SLIDING
    CLUTCH, SLIDING
  • 48
    17-8M0020999 CROSS PPIN, CLUTCH TO PROPELLER SHAFT
    CROSS PPIN, CLUTCH TO PROPELLER SHAFT
  • 49
    24-88680 SPRING, COMPRESSION - PROPELLER SHAFT
    SPRING, COMPRESSION - PROPELLER SHAFT
  • 50
    44-8166231 PROPELLER SHAFT
    PROPELLER SHAFT
  • 51
    43-99542T REVERSE GEAR
    REVERSE GEAR
  • 52
    99906T1 BEARING CARRIER ASSEMBLY
    BEARING CARRIER ASSEMBLY
  • 53
    31-21739 ROLLER BEARING
    ROLLER BEARING
  • 54
    26-41132 OIL SEAL, BEARING CARRIER (INNER)
    OIL SEAL, BEARING CARRIER (INNER)
  • 55
    26-41131 OIL SEAL, BEARING CARRIER (OUTER)
    OIL SEAL, BEARING CARRIER (OUTER)
  • 56
    25-85549 "O" RING, BEARING CARRIER
    "O" RING, BEARING CARRIER
  • 57
    87293 PLATE, GEAR HOUSING
    PLATE, GEAR HOUSING
  • 58
    10-90883 SCREW, COVER TO GEAR HOUSING (16MM)
    SCREW, COVER TO GEAR HOUSING (16MM)
  • 59
    858498 THRUST HUB ASSEMBLY, PROPELLER
    THRUST HUB ASSEMBLY, PROPELLER
  • 60
    48-19640A40 PROPELLER ASSEMBLY
    PROPELLER ASSEMBLY
  • 61
    11-88228 PROPELLER NUT
    PROPELLER NUT
  • 62
    10-4000378 SCREW, GEAR HOUSING (25MM)
    SCREW, GEAR HOUSING (25MM)
  • 63
    12-43328 WASHER, GEAR HOUSING SCREW
    WASHER, GEAR HOUSING SCREW
  • 64
    23-41589 SPACER, GEAR HOUSING SCREW
    SPACER, GEAR HOUSING SCREW
  • --
    26-85090A1 SEAL REPAIR KIT
    CONTENTS INDICATED BY FOOTNOTE 12.
    SEAL REPAIR KIT
    CONTENTS INDICATED BY FOOTNOTE 12.
  • --
    27-41499A88 GASKET SET
    CONTENTS INDICATED BY FOOTNOTE 15.
    GASKET SET
    CONTENTS INDICATED BY FOOTNOTE 15.
