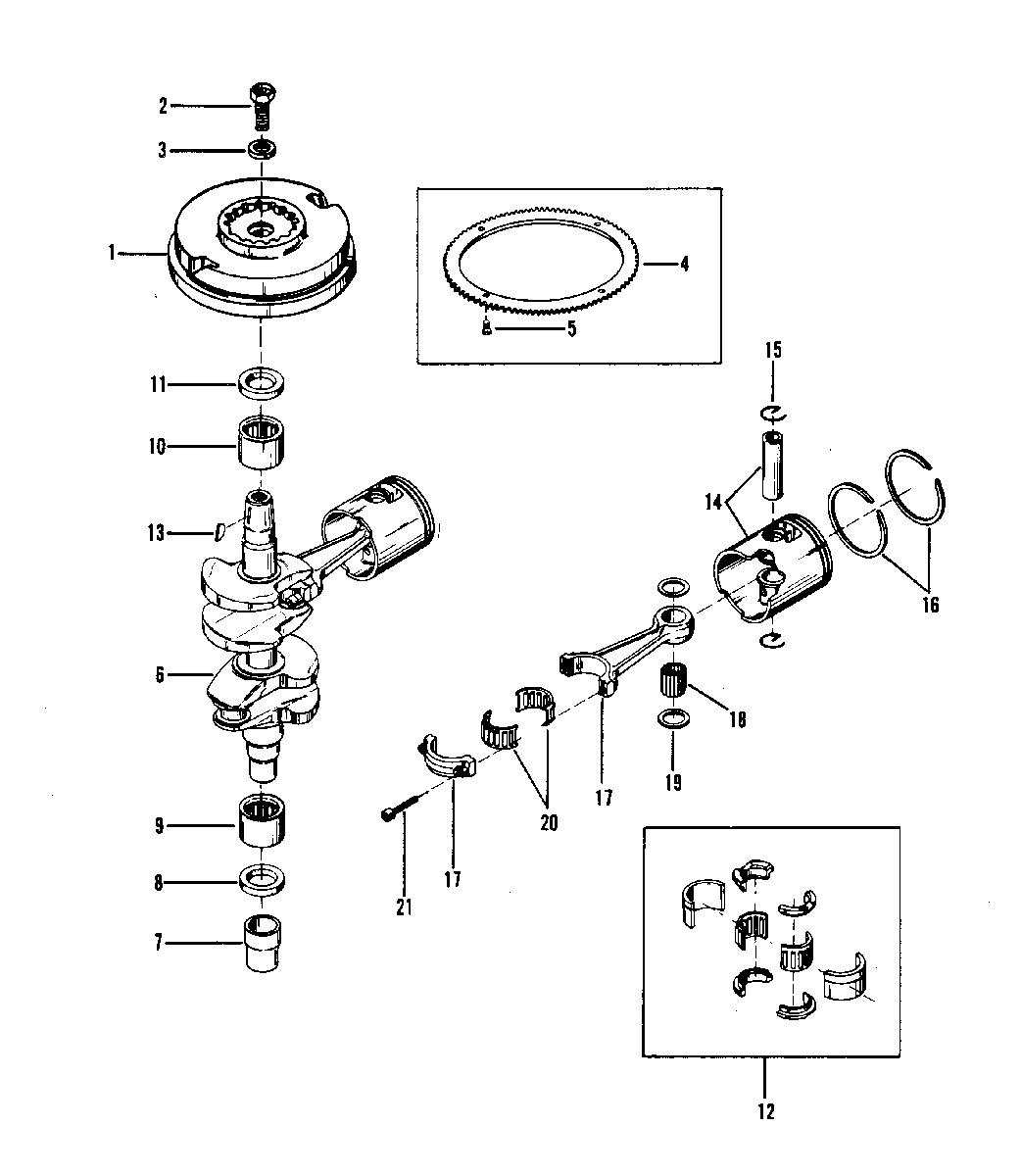

CRANKSHAFT, PISTONS AND FLYWHEEL для Mercury - 18 7207858 THRU 7209532
-
№АртикулНазвание
-
1258-859232T15 FLYWHEEL ASSEMBLYFLYWHEEL ASSEMBLY
-
210-97359A1 SCREW, FLYWHEEL TO CRANKSHAFTSCREW, FLYWHEEL TO CRANKSHAFT
-
312-86496 WASHER, FLYWHEEL SCREWWASHER, FLYWHEEL SCREW
-
443-99301 RING GEAR, FLYWHEEL - ELECTRICRING GEAR, FLYWHEEL - ELECTRIC
-
510-88190313 SCREW, RING GEAR TO FLYWHEEL (ELECTRIC)SCREW, RING GEAR TO FLYWHEEL (ELECTRIC)
-
6464-8978T2 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
7822445A1 SEAL, CRANKSHAFTSEAL, CRANKSHAFT
-
826-85107 OIL SEAL, CRANKSHAFT (LOWER)OIL SEAL, CRANKSHAFT (LOWER)
-
931-85113T ROLLER BEARING, CRANKSHAFT (LOWER)ROLLER BEARING, CRANKSHAFT (LOWER)
-
1031-85114T ROLLER BEARING, CRANKSHAFT (UPPER)ROLLER BEARING, CRANKSHAFT (UPPER)
-
1126-859741 OIL SEAL, CRANKSHAFT (UPPER)OIL SEAL, CRANKSHAFT (UPPER)
-
128M0113968 BEARING ASSEMBLY, CENTER MAINBEARING ASSEMBLY, CENTER MAIN
-
1328-20094 KEY, FLYWHEEL DRIVEKEY, FLYWHEEL DRIVE
-
14872-9533T38 PISTON AND PIN ASSEMBLYPISTON AND PIN ASSEMBLY
-
1540-828119 LOCK RING, PISTON PINLOCK RING, PISTON PIN
-
1639-8M0096518 PISTON RING ASSEMBLYPISTON RING ASSEMBLY
-
17630-8835A4 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
1829-98295 NEEDLE BEARING, PISTON ENDNEEDLE BEARING, PISTON END
-
1912-8M0012294 BEARING, LOCATING - NEEDLE BEARINGBEARING, LOCATING - NEEDLE BEARING
-
2031-879877A1 ROOLER BEARING ASSEMBLYROOLER BEARING ASSEMBLY
-
2110-4008225 SCREW, CONNECTING ROD (25MM)SCREW, CONNECTING ROD (25MM)
-
--27-41499A88 GASKET SET
CONTENTS INDICATED BY FOOTNOTE 15.GASKET SET
CONTENTS INDICATED BY FOOTNOTE 15. -
--879732T89 POWERHEAD ASSEMBLY, COMPLETE
INCLUDES CYLINDER BLOCK AND CRANKCASE, PISTONS, CONNECTING ROD AND BEARINGS.POWERHEAD ASSEMBLY, COMPLETE
INCLUDES CYLINDER BLOCK AND CRANKCASE, PISTONS, CONNECTING ROD AND BEARINGS.
