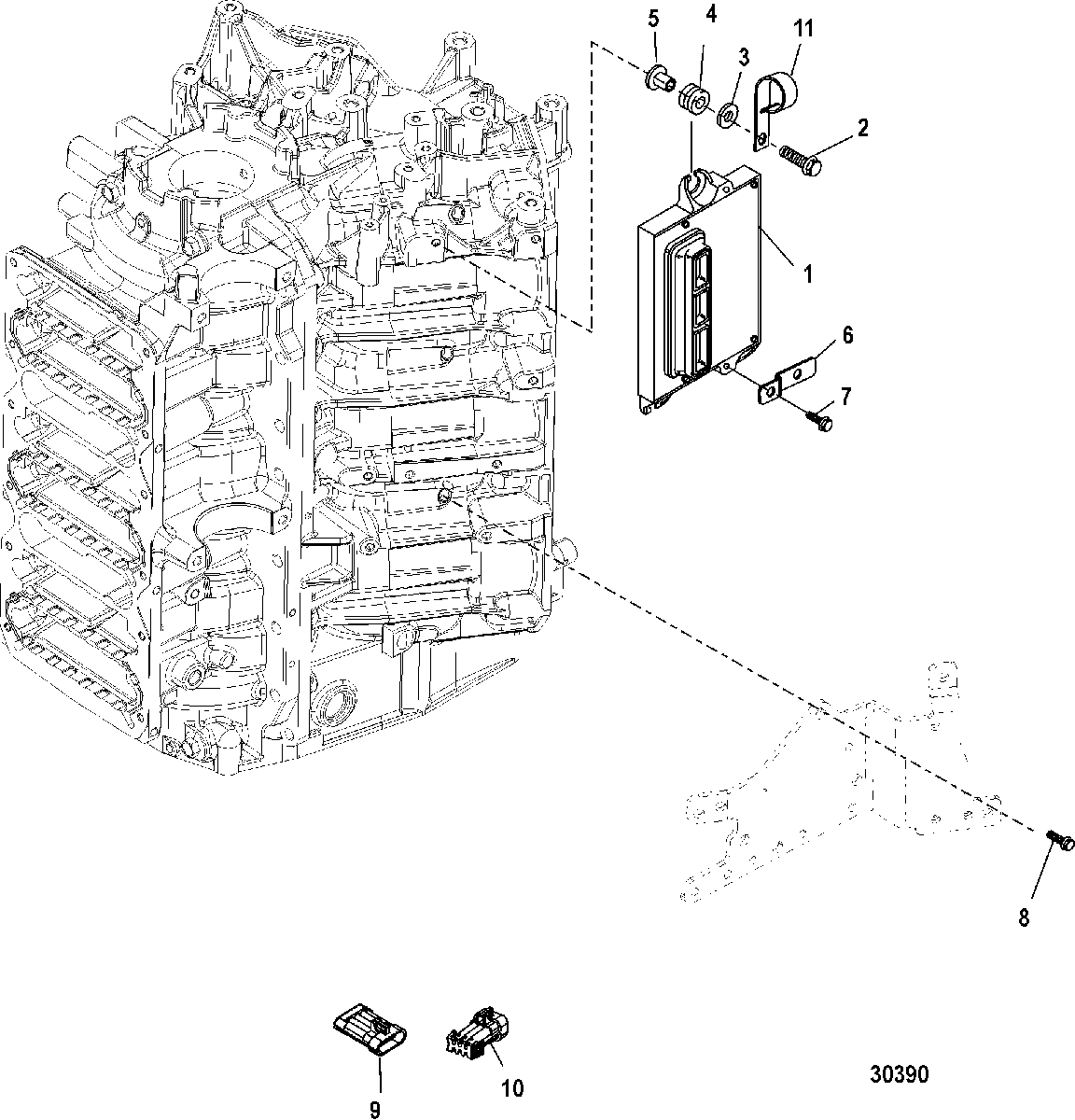

PCM Mounting для Mercury - 175 PROXS (2.5L) 1B516339 & Up
-
№АртикулНазвание
-
189790639T PCM, Propulsion Control Module
SN# 1B934544 & BelowPCM, Propulsion Control Module
SN# 1B934544 & Below -
18M0073376 PCM, Propulsion Control Module
SN# 1B934545 & UpPCM, Propulsion Control Module
SN# 1B934545 & Up -
210-82130025 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
312-65567 WASHER, (.265 x .750 x .048) Stainless SteelWASHER, (.265 x .750 x .048) Stainless Steel
-
425-834985 GROMMETGROMMET
-
523-856954 BUSHINGBUSHING
-
6858953 BRACKETBRACKET
-
710-82129114 SCREW, (M6 x 14)SCREW, (M6 x 14)
-
810-82130012 SCREW, (M6 x 12)SCREW, (M6 x 12)
-
9830796A04 CONNECTOR ASSEMBLY, Weather Cap - MaleCONNECTOR ASSEMBLY, Weather Cap - Male
-
10877613A02 CONNECTOR ASSEMBLY, Weather Cap 6 PinCONNECTOR ASSEMBLY, Weather Cap 6 Pin
-
1154-65292 J CLIPJ CLIP
