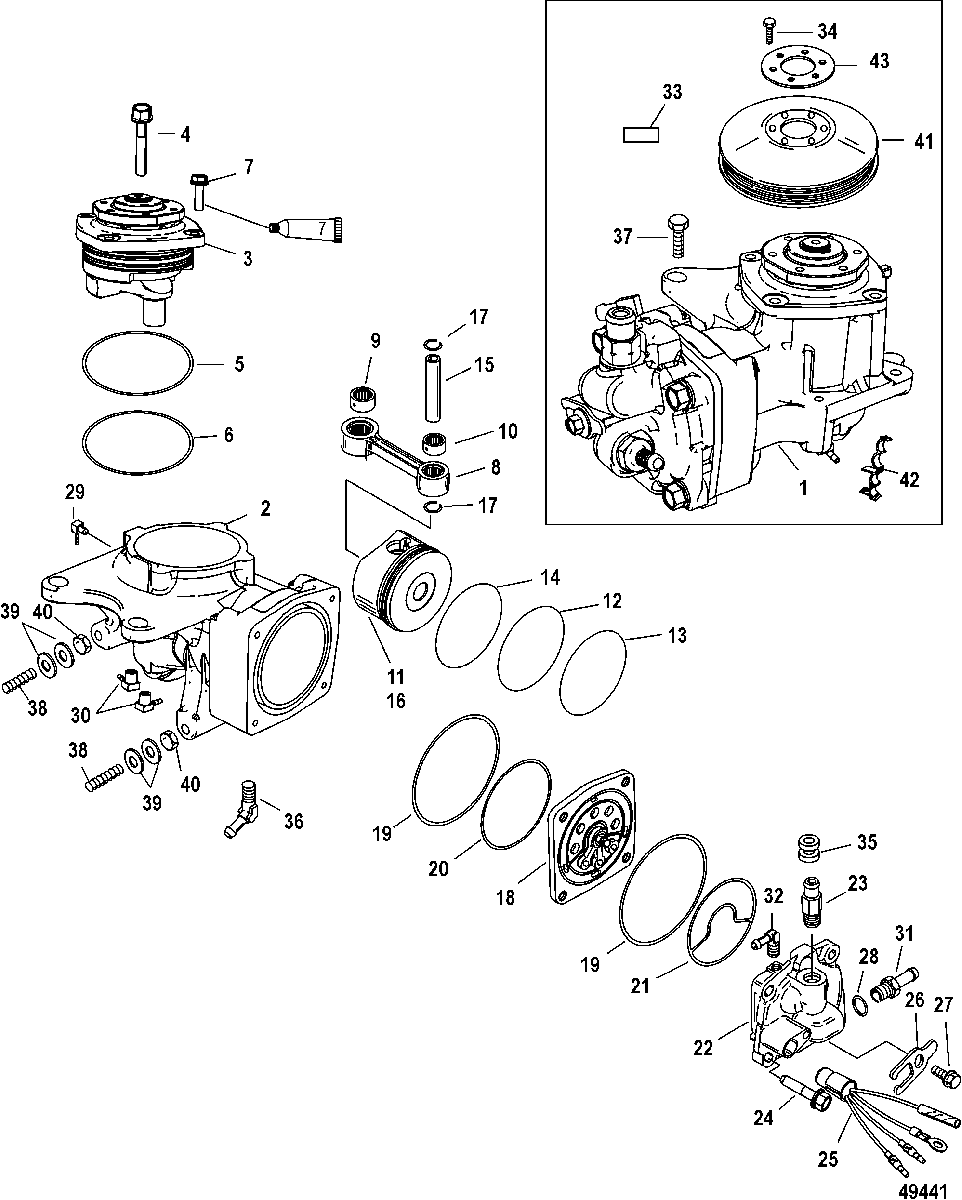

Air Compressor Components, SN 1B884477 and up для Mercury - 175 PROXS (2.5L) 1B516339 & Up

  • №
    Артикул
    Название
  • 1
    8M0060053 COMPRESSOR ASSEMBLY, Air
    Black
    COMPRESSOR ASSEMBLY, Air
    Black
  • 2
    NSS NOT SOLD SEPARATE, Body
    NOT SOLD SEPARATE, Body
  • 3
    1100-8M0060381 END CAP ASSEMBLY
    END CAP ASSEMBLY
  • 4
    10-8M0045380 SCREW, (M8 x 50)
    SCREW, (M8 x 50)
  • 5
    25-67206001 O-RING
    O-RING
  • 6
    25-67206001 O-RING
    O-RING
  • 7
    10-85593920 SCREW, (M6 x 20)
    SCREW, (M6 x 20)
  • 8
    653-833146T06 CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 9
    NSS NOT SOLD SEPARATE, Bearing
    NOT SOLD SEPARATE, Bearing
  • 10
    NSS NOT SOLD SEPARATE, Bearing
    NOT SOLD SEPARATE, Bearing
  • 11
    NSS NOT SOLD SEPARATE, Piston assembly (W/Rings and Pin)
    NOT SOLD SEPARATE, Piston assembly (W/Rings and Pin)
  • 12
    NSS NOT SOLD SEPARATE, Oil Scraper Ring
    NOT SOLD SEPARATE, Oil Scraper Ring
  • 13
    NSS NOT SOLD SEPARATE, Top Ring
    NOT SOLD SEPARATE, Top Ring
  • 14
    NSS NOT SOLD SEPARATE, Oil Ring
    NOT SOLD SEPARATE, Oil Ring
  • 15
    NSS NOT SOLD SEPARATE, Wrist Pin
    NOT SOLD SEPARATE, Wrist Pin
  • 16
    NSS NOT SOLD SEPARATE, Piston with Wrist Pin
    NOT SOLD SEPARATE, Piston with Wrist Pin
  • 17
    53-8348101 RING, Lock, Lock
    RING, Lock, Lock
  • 18
    835088A10 REED PLATE ASSEMBLY
    REED PLATE ASSEMBLY
  • 19
    25-67207 O-RING, (3.489 x .070)
    O-RING, (3.489 x .070)
  • 20
    25-832804 O-RING, (2.739 x .070)
    O-RING, (2.739 x .070)
  • 21
    26-828225 SEAL
    SEAL
  • 22
    8M0073890 HEAD KIT, Compressor
    HEAD KIT, Compressor
  • 23
    22-8307534 FITTING, (1.62 Inches)
    FITTING, (1.62 Inches)
  • 23
    22-8M0042974 FITTING, (1.87 Inches)
    FITTING, (1.87 Inches)
  • 24
    10-82127335 SCREW, (M8 x 35 MM)
    SCREW, (M8 x 35 MM)
  • 25
    13536A14 SENSOR ASSEMBLY, Temperature
    SENSOR ASSEMBLY, Temperature
  • 26
    137151 RETAINER
    RETAINER
  • 27
    10-81893414 SCREW, (M8 x 14)
    SCREW, (M8 x 14)
  • 28
    25-831985 O-RING, (.468 x .078)
    O-RING, (.468 x .078)
  • 29
    22-151331 FITTING
    FITTING
  • 30
    21-428641 FITTING, Check Valve
    FITTING, Check Valve
  • 31
    22-856744 FITTING
    FITTING
  • 32
    22-14868 FITTING
    FITTING
  • 33
    NSS NOT SOLD SEPARATE, Decal-Assy. Instructions
    NOT SOLD SEPARATE, Decal-Assy. Instructions
  • 34
    10-85593920 SCREW, (M6 x 20)
    SCREW, (M6 x 20)
  • 35
    25-855349002 GROMMET
    GROMMET
  • 36
    22-851975 FITTING, Elbow - 45 Degree - Brass (.125-27)
    FITTING, Elbow - 45 Degree - Brass (.125-27)
  • 37
    10-4010825 SCREW, (M10 x 25) Hex Flange - Stainless Steel
    SCREW, (M10 x 25) Hex Flange - Stainless Steel
  • 38
    16-858762001 STUD, (.312-18/.324-24 x 4.190)
    STUD, (.312-18/.324-24 x 4.190)
  • 39
    12-854640 WASHER, Special
    WASHER, Special
  • 40
    11-46356 NUT, (.312-24)
    NUT, (.312-24)
  • 41
    8M0138680 PULLEY
    PULLEY
  • 42
    54-8M0024533 CLAMP
    CLAMP
  • 43
    12-884594 WASHER
    WASHER
  • -
    25-832804A03 O-RING KIT
    O-RING KIT
