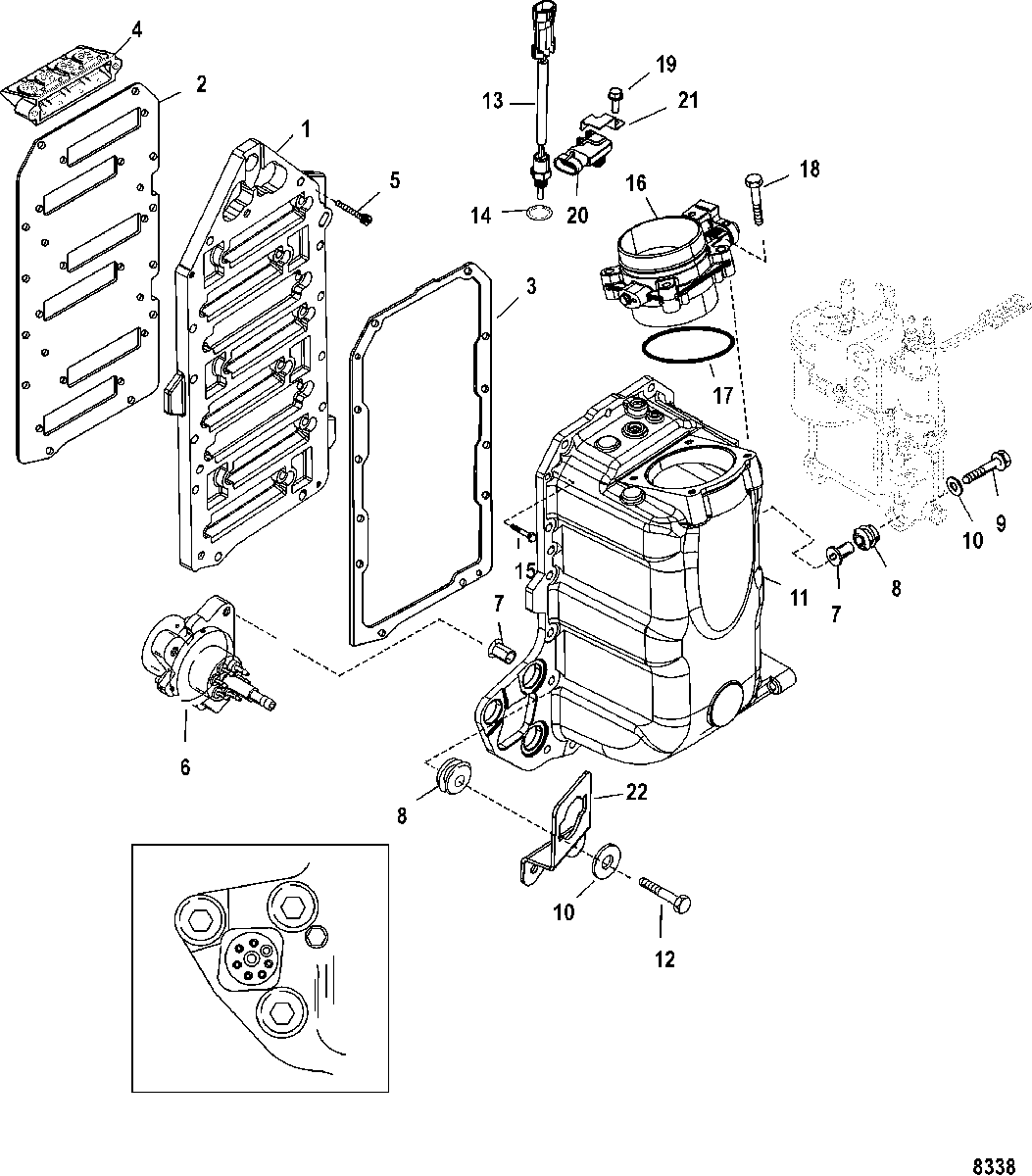

Air Handler Components для Mercury - 175 PROXS (2.5L) 1B516339 & Up
-
№АртикулНазвание
-
-855633T34 AIR HANDLER ASSEMBLYAIR HANDLER ASSEMBLY
-
1855420T03 ADAPTOR PLATE KITADAPTOR PLATE KIT
-
227-840484 GASKETGASKET
-
327-840485 GASKETGASKET
-
4840805T1 REED BLOCK ASSEMBLYREED BLOCK ASSEMBLY
-
510-55715 SCREW, (.250-20 x .880)SCREW, (.250-20 x .880)
-
68M0128080 PUMP ASSEMBLY, OilPUMP ASSEMBLY, Oil
-
723-855364 BUSHINGBUSHING
-
825-855362001 GROMMETGROMMET
-
910-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
1012-817274 WASHER, (.344 x 1.00 x .063) Stainless SteelWASHER, (.344 x 1.00 x .063) Stainless Steel
-
11850248T03 PLENUM KIT, AirPLENUM KIT, Air
-
1210-81893430 SCREW, (M8 x 30)SCREW, (M8 x 30)
-
13885342002 SENSOR ASSEMBLYSENSOR ASSEMBLY
-
1425-896699 O-RING, (1.78 mm x .08 mm)O-RING, (1.78 mm x .08 mm)
-
1510-883942 SCREW, (M4 x 16)SCREW, (M4 x 16)
-
16855422T03 THROTTLE BODY KITTHROTTLE BODY KIT
-
1725-855423 O-RINGO-RING
-
1810-82130040 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
1910-1993716 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
20854445 SENSOR, MAPSENSOR, MAP
-
21884522 BRACKET, MAP SensorBRACKET, MAP Sensor
-
22892296 BRACKETBRACKET
-
-879809A08 LONG BLOCK ASSEMBLYLONG BLOCK ASSEMBLY
