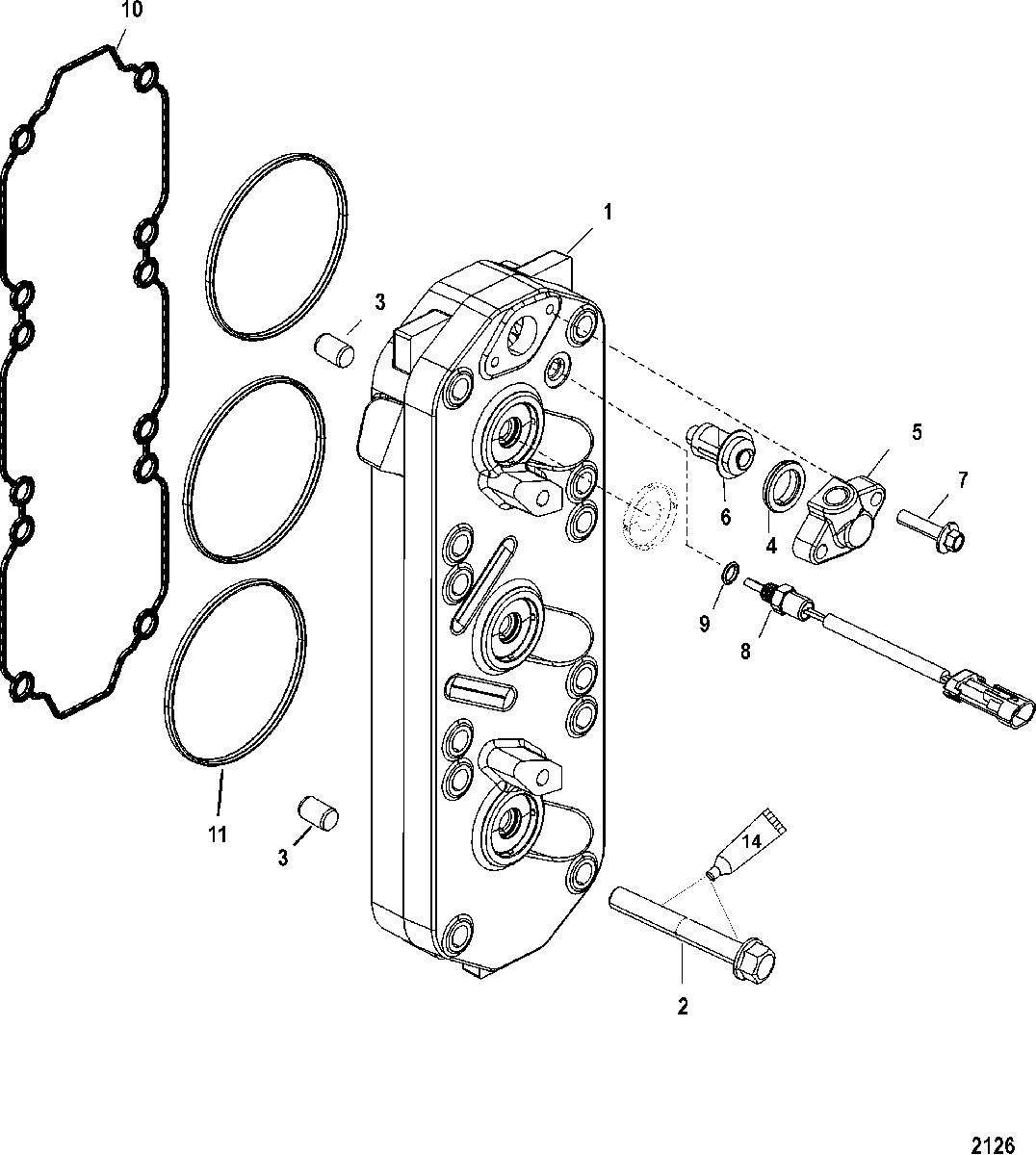

Cylinder Head для Mercury - 175 PROXS (2.5L) 1B516339 & Up
-
№АртикулНазвание
-
1878109T1 CYLINDER HEAD ASSEMBLY
(Port)CYLINDER HEAD ASSEMBLY
(Port) -
1878110T1 CYLINDER HEAD ASSEMBLY
(Starboard)CYLINDER HEAD ASSEMBLY
(Starboard) -
210-8M0125882 SCREW, (.375-16 x 2.750)SCREW, (.375-16 x 2.750)
-
317-63779 PIN, Dowel (.250 x .625)PIN, Dowel (.250 x .625)
-
427-62386001 GASKETGASKET
-
58M0039353 COVERCOVER
-
6833072003 THERMOSTAT, 62A°C (143A°F)THERMOSTAT, 62A°C (143A°F)
-
710-82130025 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
8885342002 SENSOR ASSEMBLYSENSOR ASSEMBLY
-
925-896699 O-RING, (1.78 mm x .08 mm)O-RING, (1.78 mm x .08 mm)
-
108584521 SEALSEAL
-
118597721 SEALSEAL
-
-27-8M0046714 GASKET SET, EngineGASKET SET, Engine
-
-879809A08 LONG BLOCK ASSEMBLYLONG BLOCK ASSEMBLY
