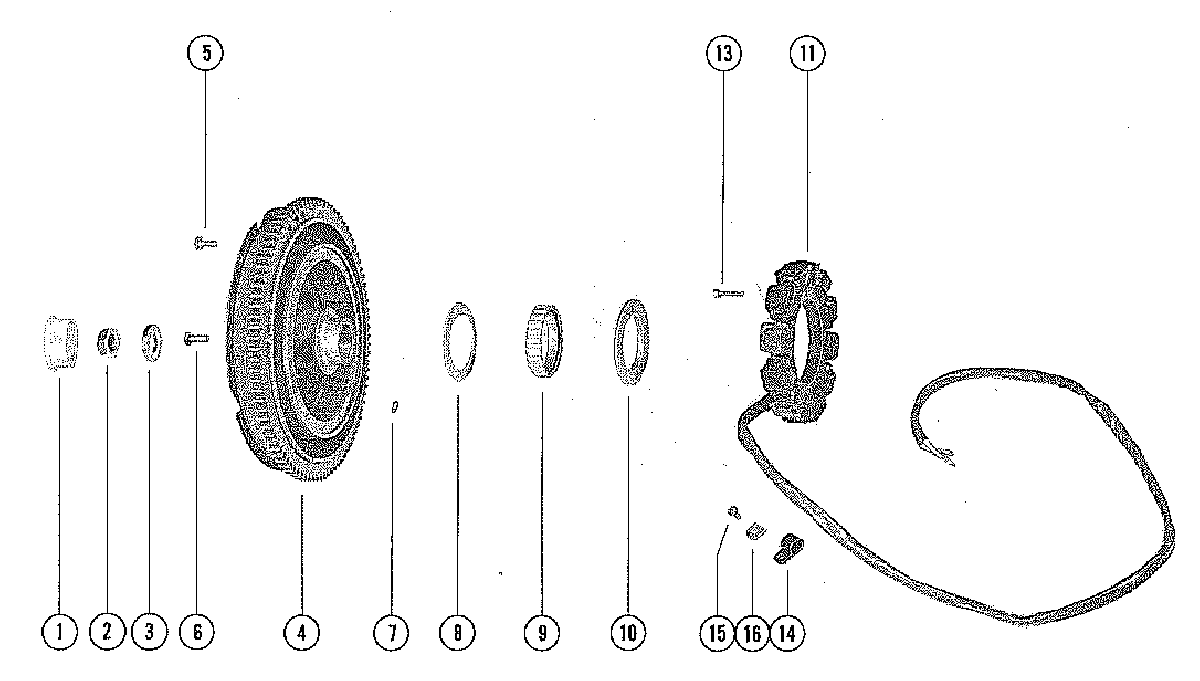

FLYWHEEL ASSEMBLY AND STATOR для Mercury - 1500 3502806 THRU 4865677
-
№АртикулНазвание
-
119-45907 PLUG, FLYWHEEL PULLER THREADSPLUG, FLYWHEEL PULLER THREADS
-
211-52901 NUT, FLYWHEEL(PART OF 1-436-4842A3 CRANKSHAFT ASSEMBLY)NUT, FLYWHEEL(PART OF 1-436-4842A3 CRANKSHAFT ASSEMBLY)
-
312-33001 WASHER, FLYWHEEL NUTWASHER, FLYWHEEL NUT
-
4225-2494A37 FLYWHEEL ASSEMBLY, COMPLETE
UNITED STATES 3628317 AND BELOW
AUSTRALIA 8008489 AND BELOW
CANADA 7018152 AND BELOWFLYWHEEL ASSEMBLY, COMPLETE
UNITED STATES 3628317 AND BELOW
AUSTRALIA 8008489 AND BELOW
CANADA 7018152 AND BELOW -
4225-2494A37 FLYWHEEL ASSEMBLY, COMPLETE
UNITED STATES 3628318 AND UP
AUSTRALIA 8008490 AND UP
CANADA 7018153 AND UPFLYWHEEL ASSEMBLY, COMPLETE
UNITED STATES 3628318 AND UP
AUSTRALIA 8008490 AND UP
CANADA 7018153 AND UP -
510-32417 SCREW, FLEXIBLE PLATE TO FLYWHEEL (5/8")SCREW, FLEXIBLE PLATE TO FLYWHEEL (5/8")
-
610-69088 SCREW, PLATE AND HUB TO FLEXIBLE PLATE (7/8")SCREW, PLATE AND HUB TO FLEXIBLE PLATE (7/8")
-
717-26618 PIN, DOWEL - PULLEY TO FLYWHEELPIN, DOWEL - PULLEY TO FLYWHEEL
-
829788 FLANGE, FLYWHEEL PULLEYFLANGE, FLYWHEEL PULLEY
-
930306 PULLEY, FLYWHEELPULLEY, FLYWHEEL
-
1029787 HUB, FLYWHEEL PULLEYHUB, FLYWHEEL PULLEY
-
11398-4793 STATOR, ALTERNATORSTATOR, ALTERNATOR
-
1310-63136 SCREW, STATOR TO UPPER END CAP (7/8")SCREW, STATOR TO UPPER END CAP (7/8")
-
1454-24871 CLIP, STATOR LEAD FASTENING (5/8")CLIP, STATOR LEAD FASTENING (5/8")
-
1454-22627 CLIP, STATOR/WIRING HARNESS LEADS FASTENING (1/2")CLIP, STATOR/WIRING HARNESS LEADS FASTENING (1/2")
-
1510-62568 SCREW, STATOR LEAD CLIP FASTENING (3/8")SCREW, STATOR LEAD CLIP FASTENING (3/8")
-
168M0084613 "D" WASHER, CLIP FASTENING SCREW"D" WASHER, CLIP FASTENING SCREW
