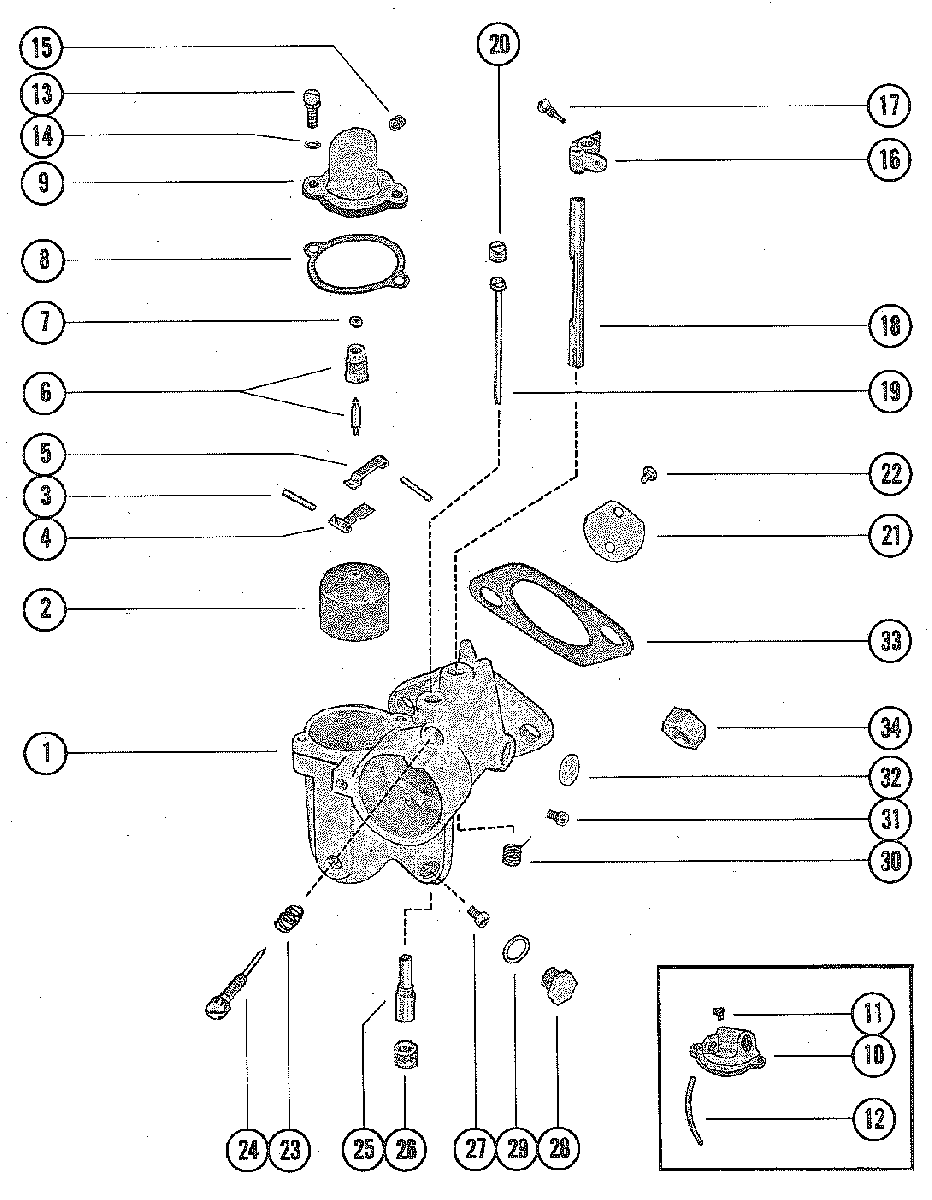

CARBURETOR ASSEMBLY для Mercury - 1500 3502806 THRU 4865677

№

Артикул

Название
1

1368-5259A16 CARBURETOR ASSEMBLY(SHORT SHAFT)

CARBURETOR ASSEMBLY(SHORT SHAFT)

10 620 ₽
1

1368-5259A11 CARBURETOR ASSEMBLY(LONG SHAFT)
UNITED STATES 3751850 THRU 4121434
AUSTRALIA 8013390 THRU 8028039
CANADA 7024373 THRU 7048782

CARBURETOR ASSEMBLY(LONG SHAFT)
UNITED STATES 3751850 THRU 4121434
AUSTRALIA 8013390 THRU 8028039
CANADA 7024373 THRU 7048782

0 ₽
1

1368-5701A5 CARBURETOR ASSEMBLY(LONG SHAFT)
UNITED STATES 4121435 THRU 4602011
AUSTRALIA 8028040 THRU 8034895
CANADA 7048783 THRU 7093097

CARBURETOR ASSEMBLY(LONG SHAFT)
UNITED STATES 4121435 THRU 4602011
AUSTRALIA 8028040 THRU 8034895
CANADA 7048783 THRU 7093097

0 ₽
1

1368-5701A13 CARBURETOR ASSEMBLY(LONG SHAFT)
UNITED STATES 4602012 AND UP
CANADA 7093038 AND UP

CARBURETOR ASSEMBLY(LONG SHAFT)
UNITED STATES 4602012 AND UP
CANADA 7093038 AND UP

0 ₽
2

1395-8673 FLOAT ASSEMBLY

FLOAT ASSEMBLY

1 490 ₽
3

90-8M0143356 PIN, FLOAT LEVER PINION

PIN, FLOAT LEVER PINION

0 ₽
4

90-8M0143356 LEVER, FLOAT (LOWER)

LEVER, FLOAT (LOWER)

0 ₽
5

90-8M0143356 LEVER, FLOAT (UPPER)

LEVER, FLOAT (UPPER)

0 ₽
6

1395-83181 INLET NEEDLE, SEAT AND GASKET

INLET NEEDLE, SEAT AND GASKET

1 130 ₽
7

90-8M0143356 GASKET, INLET SEAT

GASKET, INLET SEAT

0 ₽
8

90-8M0143356 GASKET, FLOAT BOWL COVER

GASKET, FLOAT BOWL COVER

0 ₽
9

1395-5261 COVER, FLOAT BOWL (SHORT SHAFT AND )
UNITED STATES 3751850 THRU 4121434
AUSTRALIA 8013390 THRU 8028039
CANADA 7024373 THRU 7048782

COVER, FLOAT BOWL (SHORT SHAFT AND )
UNITED STATES 3751850 THRU 4121434
AUSTRALIA 8013390 THRU 8028039
CANADA 7024373 THRU 7048782

0 ₽
10

1395-5680 COVER, FLOAT BOWL
UNITED STATES 4121435 AND UP
AUSTRALIA 8028040 AND UP
CANADA 7048783 AND UP

COVER, FLOAT BOWL
UNITED STATES 4121435 AND UP
AUSTRALIA 8028040 AND UP
CANADA 7048783 AND UP

0 ₽
11

1395-5733 JET, BOWL VENT
UNITED STATES 4121435 AND UP
AUSTRALIA 8028040 AND UP
CANADA 7048783 AND UP

JET, BOWL VENT
UNITED STATES 4121435 AND UP
AUSTRALIA 8028040 AND UP
CANADA 7048783 AND UP

610 ₽
12

32-892024122 HOSE, ECONOMIZER
UNITED STATES 4121435 AND UP
AUSTRALIA 8028040 AND UP
CANADA 7048783 AND UP

HOSE, ECONOMIZER
UNITED STATES 4121435 AND UP
AUSTRALIA 8028040 AND UP
CANADA 7048783 AND UP

4 230 ₽
13

10-52195 SCREW, FLOAT BOWL COVER
UNITED STATES 3751850 THRU 4121434
AUSTRALIA 8013390 THRU 8028039
CANADA 7024373 THRU 7048782

SCREW, FLOAT BOWL COVER
UNITED STATES 3751850 THRU 4121434
AUSTRALIA 8013390 THRU 8028039
CANADA 7024373 THRU 7048782

0 ₽
13

10-52195 SCREW, FLOAT BOWL COVER
UNITED STATES 4121435 AND UP
AUSTRALIA 8028040 AND UP
CANADA 7048783 AND UP

SCREW, FLOAT BOWL COVER
UNITED STATES 4121435 AND UP
AUSTRALIA 8028040 AND UP
CANADA 7048783 AND UP

0 ₽
13

1395-4804 SCREW, FLOAT BOWL COVER
UNITED STATES 4121435 AND UP
AUSTRALIA 8028040 AND UP
CANADA 7048783 AND UP

SCREW, FLOAT BOWL COVER
UNITED STATES 4121435 AND UP
AUSTRALIA 8028040 AND UP
CANADA 7048783 AND UP

0 ₽
14

13-26995 LOCKWASHER, FLOAT BOWL COVER SCREW

LOCKWASHER, FLOAT BOWL COVER SCREW

60 ₽
15

1395-4805 SCREEN, FILTER

SCREEN, FILTER

0 ₽
16

8146791 LEVER, THROTTLE STOP
USED ON CENTER AND LOWER CARBURETOR ONLY--REPLACED WITH A-52518 CLUSTER ON UPPER CARBURETOR.

LEVER, THROTTLE STOP
USED ON CENTER AND LOWER CARBURETOR ONLY--REPLACED WITH A-52518 CLUSTER ON UPPER CARBURETOR.

0 ₽
17

1395-6027 SCREW, THROTTLE STOP LEVER

SCREW, THROTTLE STOP LEVER

250 ₽
18

1395-7942 SHAFT, THROTTLE

SHAFT, THROTTLE

0 ₽
19

90-8M0143356 TUBE, IDLE

TUBE, IDLE

0 ₽
20

1395-4540 SCREW, BODY (IDLE TUBE)

SCREW, BODY (IDLE TUBE)

650 ₽
21

1395-5666 SHUTTER, THROTTLE

SHUTTER, THROTTLE

0 ₽
22

90-8M0143356 SCREW AND LOCKWASHER, THROTTLE SHUTTER

SCREW AND LOCKWASHER, THROTTLE SHUTTER

0 ₽
23

90-8M0143356 SPRING, IDLE ADJUSTMENT SCREW

SPRING, IDLE ADJUSTMENT SCREW

0 ₽
24

1399-3515 SCREW, IDLE ADJUSTMENT

SCREW, IDLE ADJUSTMENT

0 ₽
25

90-8M0143356 NOZZLE, MAIN

NOZZLE, MAIN

0 ₽
26

1395-4542 SCREW, PLUG - MAIN NOZZLE

SCREW, PLUG - MAIN NOZZLE

0 ₽
27

1399-3518 JET, MAIN FUEL (.082) - STANDARD (SHORT RAFT)

JET, MAIN FUEL (.082) - STANDARD (SHORT RAFT)

630 ₽
27

1395-6201 JET, MAIN FUEL (.080) - STANDARD (LONG SHAFT)

JET, MAIN FUEL (.080) - STANDARD (LONG SHAFT)

720 ₽
27

1399-3520 JET, MAIN FUEL (.0785)

JET, MAIN FUEL (.0785)

0 ₽
27

1399-3796 JET, MAIN FUEL (.076)

JET, MAIN FUEL (.076)

600 ₽
28

1395-4541 SCREW, PLUG - MAIN FUEL JET CHANNEL

SCREW, PLUG - MAIN FUEL JET CHANNEL

1 180 ₽
29

90-8M0143356 GASKET, JET CHANNEL PLUG SCREW

GASKET, JET CHANNEL PLUG SCREW

0 ₽
30

90-8M0143356 SPRING, THROTTLE SHAFT RETURN

SPRING, THROTTLE SHAFT RETURN

0 ₽
31

1395-4543 SCREW, BODY CHANNEL

SCREW, BODY CHANNEL

0 ₽
31

1395-4543 SCREW, BODY CHANNEL

SCREW, BODY CHANNEL

0 ₽
32

90-8M0143356 WELCH PLUG, BODY CHANNEL

WELCH PLUG, BODY CHANNEL

0 ₽
--

1395-879194024 GASKET AND PAKCING SET (1 PER CARBURETOR)

GASKET AND PAKCING SET (1 PER CARBURETOR)

640 ₽
--

1395-51091 REPAIR PARTS KIT (1 PER CARBURETOR)-SHORT SHAFT

REPAIR PARTS KIT (1 PER CARBURETOR)-SHORT SHAFT

6 790 ₽
--

1395-51091 REPAIR PARTS KIT (1 PER CARBURETOR)-LONG SHAFT
UNITED STATES 4602011 AND BELOW
AUSTRALIA 8034895 AND BELOW
CANADA 7093097 AND BELOW

REPAIR PARTS KIT (1 PER CARBURETOR)-LONG SHAFT
UNITED STATES 4602011 AND BELOW
AUSTRALIA 8034895 AND BELOW
CANADA 7093097 AND BELOW

6 790 ₽
--

1395-51091 REPAIR PARTS KIT (1 PER CARBURETOR)-LONG SHAFT
UNITED STATES 4602012 AND UP
CANADA 7093038 AND UP

REPAIR PARTS KIT (1 PER CARBURETOR)-LONG SHAFT
UNITED STATES 4602012 AND UP
CANADA 7093038 AND UP

6 790 ₽
33

27-481641 GASKET, CARBURETOR FLANGE

GASKET, CARBURETOR FLANGE

150 ₽
34

11-64809 NUT, CARBURETOR MOUNTING STUD

NUT, CARBURETOR MOUNTING STUD

180 ₽
