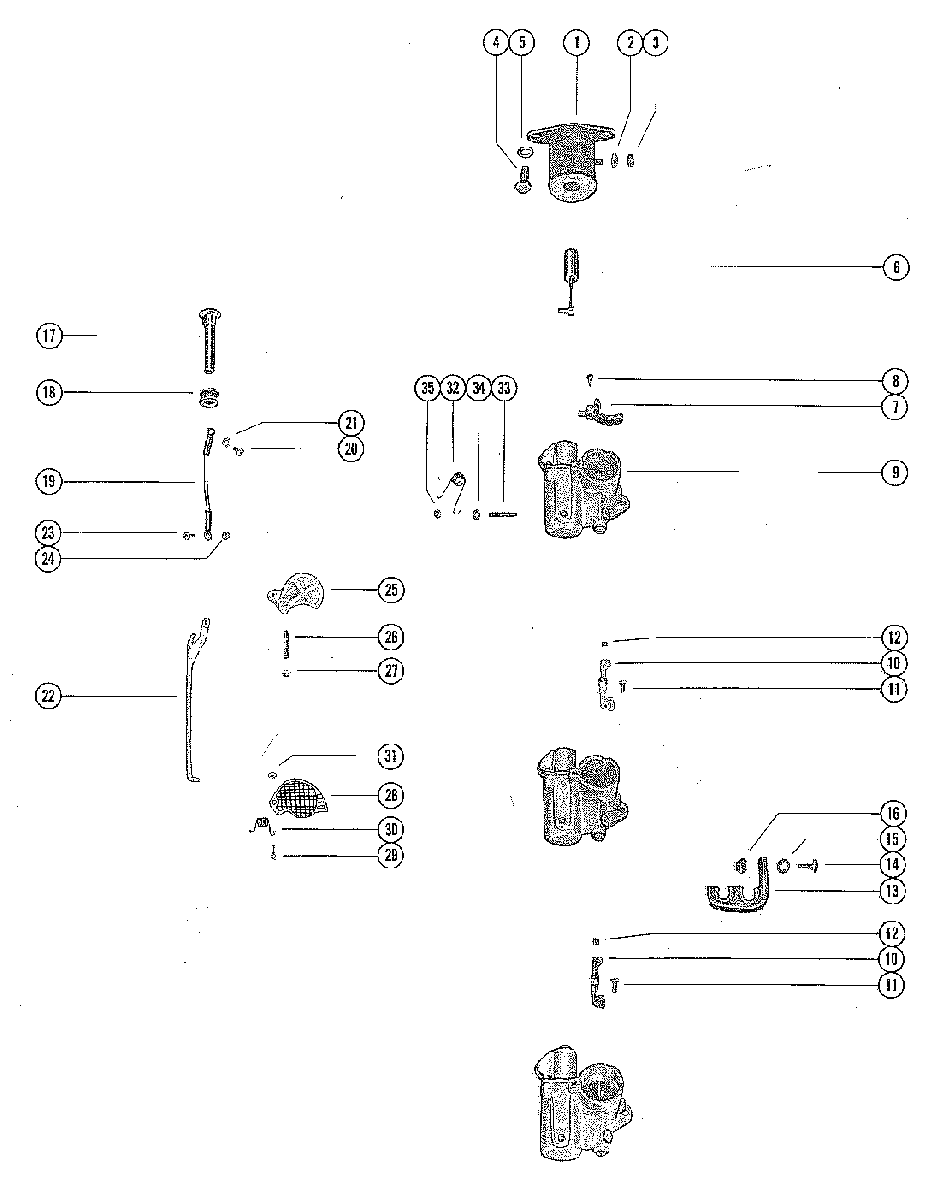

CARBURETOR LINKAGE AND CHOKE SOLENOID для Mercury - 1500 3502806 THRU 4865677

  • №
    Артикул
    Название
  • 1
    54293A10 CHOKE SOLENOID
    CHOKE SOLENOID
  • 2
    13-26996 LOCKWASHER, SOLENOID TERMINAL
    LOCKWASHER, SOLENOID TERMINAL
  • 3
    11-68219 NUT, WOLENOID TERMINAL
    NUT, WOLENOID TERMINAL
  • 4
    10-25299 SCREW, CHOKE SOLENOID (3/4")
    SCREW, CHOKE SOLENOID (3/4")
  • 5
    13-26993 LOCKWASHER, CHOKE SOLENOID SCREW
    LOCKWASHER, CHOKE SOLENOID SCREW
  • 6
    90548A1 PLUNGER AND LINK ASSEMBLY, CHOKE SOLENOID
    PLUNGER AND LINK ASSEMBLY, CHOKE SOLENOID
  • 7
    52518 CLUSTER, THROTTLE LEVER (UPPER CARBUREOTR)
    CLUSTER, THROTTLE LEVER (UPPER CARBUREOTR)
  • 8
    1395-6027 SCREW, CLUSTER TO THROTTLE LEVER
    SCREW, CLUSTER TO THROTTLE LEVER
  • 9
    1368-5259A16 CARBURETOR ASSEMBLY, COMPLETE(MERC 1500XS)
    CARBURETOR ASSEMBLY, COMPLETE(MERC 1500XS)
  • 9
    1368-5038A1 CARBURETOR ASSEMBLY, COMPLETE
    UNITED STATES 3751849 AND BELOW
    AUSTRALIA 8013389 AND BELOW
    CANADA 7024372 AND BELOW
    CARBURETOR ASSEMBLY, COMPLETE
    UNITED STATES 3751849 AND BELOW
    AUSTRALIA 8013389 AND BELOW
    CANADA 7024372 AND BELOW
  • 9
    1368-5259A11 CARBURETOR ASSEMBLY, COMPLETE
    UNITED STATES 3751850 THRU 4121434
    AUSTRALIA 8013390 THRU 8028039
    CANADA 7024373 THRU 7048782
    CARBURETOR ASSEMBLY, COMPLETE
    UNITED STATES 3751850 THRU 4121434
    AUSTRALIA 8013390 THRU 8028039
    CANADA 7024373 THRU 7048782
  • 9
    1368-5701A5 CARBURETOR ASSEMBLY, COMPLETE
    UNITED STATES 4121435 THRU 4602011
    AUSTRALIA 8028040 THRU 8034895
    CANADA 7048783 THRU 7093097
    CARBURETOR ASSEMBLY, COMPLETE
    UNITED STATES 4121435 THRU 4602011
    AUSTRALIA 8028040 THRU 8034895
    CANADA 7048783 THRU 7093097
  • 9
    1368-5701A13 CARBURETOR ASSEMBLY, COMPLETE
    UNITED STATES 4602012 AND UP
    CANADA 7093038 AND UP
    CARBURETOR ASSEMBLY, COMPLETE
    UNITED STATES 4602012 AND UP
    CANADA 7093038 AND UP
  • 10
    53720A2 THROTTLE PICK-UP BRACKET ASSEMBLY
    THROTTLE PICK-UP BRACKET ASSEMBLY
  • 11
    10-66104 SCREW, THROTTLE BRACKET MOUNTING (3/4")
    SCREW, THROTTLE BRACKET MOUNTING (3/4")
  • 12
    28-89694 INSERT, THROTTLE COUPLING
    INSERT, THROTTLE COUPLING
  • 13
    59757 BRACKET, COIL LEAD RETAINER
    UNITED STATES 4121434 AND BELOW
    AUSTRALIA 8028039 AND BELOW
    CANADA 7048782 AND BELOW
    BRACKET, COIL LEAD RETAINER
    UNITED STATES 4121434 AND BELOW
    AUSTRALIA 8028039 AND BELOW
    CANADA 7048782 AND BELOW
  • 14
    10-64278 SCREW, COIL BRACKET (1")
    UNITED STATES 4121434 AND BELOW
    AUSTRALIA 8028039 AND BELOW
    CANADA 7048782 AND BELOW
    SCREW, COIL BRACKET (1")
    UNITED STATES 4121434 AND BELOW
    AUSTRALIA 8028039 AND BELOW
    CANADA 7048782 AND BELOW
  • 15
    12-29245 WASHER, COIL BRACKET SCREW
    UNITED STATES 4121434 AND BELOW
    AUSTRALIA 8028039 AND BELOW
    CANADA 7048782 AND BELOW
    WASHER, COIL BRACKET SCREW
    UNITED STATES 4121434 AND BELOW
    AUSTRALIA 8028039 AND BELOW
    CANADA 7048782 AND BELOW
  • 16
    11-20184 NUT, COIL BRACKET SCREW
    UNITED STATES 4121434 AND BELOW
    AUSTRALIA 8028039 AND BELOW
    CANADA 7048782 AND BELOW
    NUT, COIL BRACKET SCREW
    UNITED STATES 4121434 AND BELOW
    AUSTRALIA 8028039 AND BELOW
    CANADA 7048782 AND BELOW
  • 17
    90242A1 KNOB, CHOKE ROD
    KNOB, CHOKE ROD
  • 18
    25-20116 GROMMET, CHOKE ROD
    GROMMET, CHOKE ROD
  • 19
    49589 STRAP, CHOKE KNOB TO CHOKE ROD
    STRAP, CHOKE KNOB TO CHOKE ROD
  • 20
    10-48591 SCREW, STRAP TO CHOKE KNOB (1/2")
    USE WITH METAL CHOKE KNOB
    SCREW, STRAP TO CHOKE KNOB (1/2")
    USE WITH METAL CHOKE KNOB
  • 21
    13-26996 LOCKWASHER, STRAP SCRW
    USE WITH METAL CHOKE KNOB
    LOCKWASHER, STRAP SCRW
    USE WITH METAL CHOKE KNOB
  • 20
    10-77137 SCREW, STRAP TO CHOKE KNOB (USE WITH NYLON CHOKE KNOB)
    SCREW, STRAP TO CHOKE KNOB (USE WITH NYLON CHOKE KNOB)
  • 22
    48203 ROD, CHOKE
    ROD, CHOKE
  • 23
    10-48591 SCREW, STRAP TO CHOKE ROD (1/2")
    SCREW, STRAP TO CHOKE ROD (1/2")
  • 24
    11-46438 NUT, STRAP TO CHOKE ROD SCREW
    NUT, STRAP TO CHOKE ROD SCREW
  • 25
    48152 SHUTTER, CHOKE - CARBURETOR
    SHUTTER, CHOKE - CARBURETOR
  • 26
    16-69037 STUD, CARBURETOR - CHOKE SHUTTER PIVOT (1 1/8")
    STUD, CARBURETOR - CHOKE SHUTTER PIVOT (1 1/8")
  • 27
    11-20110 NUT, CHOKE SHUTTER TO CARBURETOR STUD
    NUT, CHOKE SHUTTER TO CARBURETOR STUD
  • 28
    35-57819 SCREEN ASEEMBLY, FILTER - CARBURETOR
    SCREEN ASEEMBLY, FILTER - CARBURETOR
  • 29
    10-22523 SCREW, LOWER CARB. FITLER SCREEN TO CARB (3/4")
    SCREW, LOWER CARB. FITLER SCREEN TO CARB (3/4")
  • 29
    10-23015 SCREW, UPPER CARB. FILTER SCREEN TO CARB. (1")
    SCREW, UPPER CARB. FILTER SCREEN TO CARB. (1")
  • 29
    10-23015 SCREW, UPPER CARB. FILTER SCREEN TO CARB. (1")
    SCREW, UPPER CARB. FILTER SCREEN TO CARB. (1")
  • 30
    24-57818 SPRING, UPPER FILTER SCREEN SCREW
    SPRING, UPPER FILTER SCREEN SCREW
  • 31
    11-20110 NUT, CARBURETOR FILTER SCREEN FASTENING SCREW
    NUT, CARBURETOR FILTER SCREEN FASTENING SCREW
  • 32
    24-48230 SPRING, CHOKE ROD TENSION
    SPRING, CHOKE ROD TENSION
  • 33
    10-657461 STUD, CHOKE ROD SPRING TO CARBURETOR (7/8")
    STUD, CHOKE ROD SPRING TO CARBURETOR (7/8")
  • 34
    23-32427 SPACER, CHOKE ROD SPRING STUD
    SPACER, CHOKE ROD SPRING STUD
  • 35
    11-20184 NUT, CHOKE ROD SPRING TO CARBURETOR STUD
    NUT, CHOKE ROD SPRING TO CARBURETOR STUD
