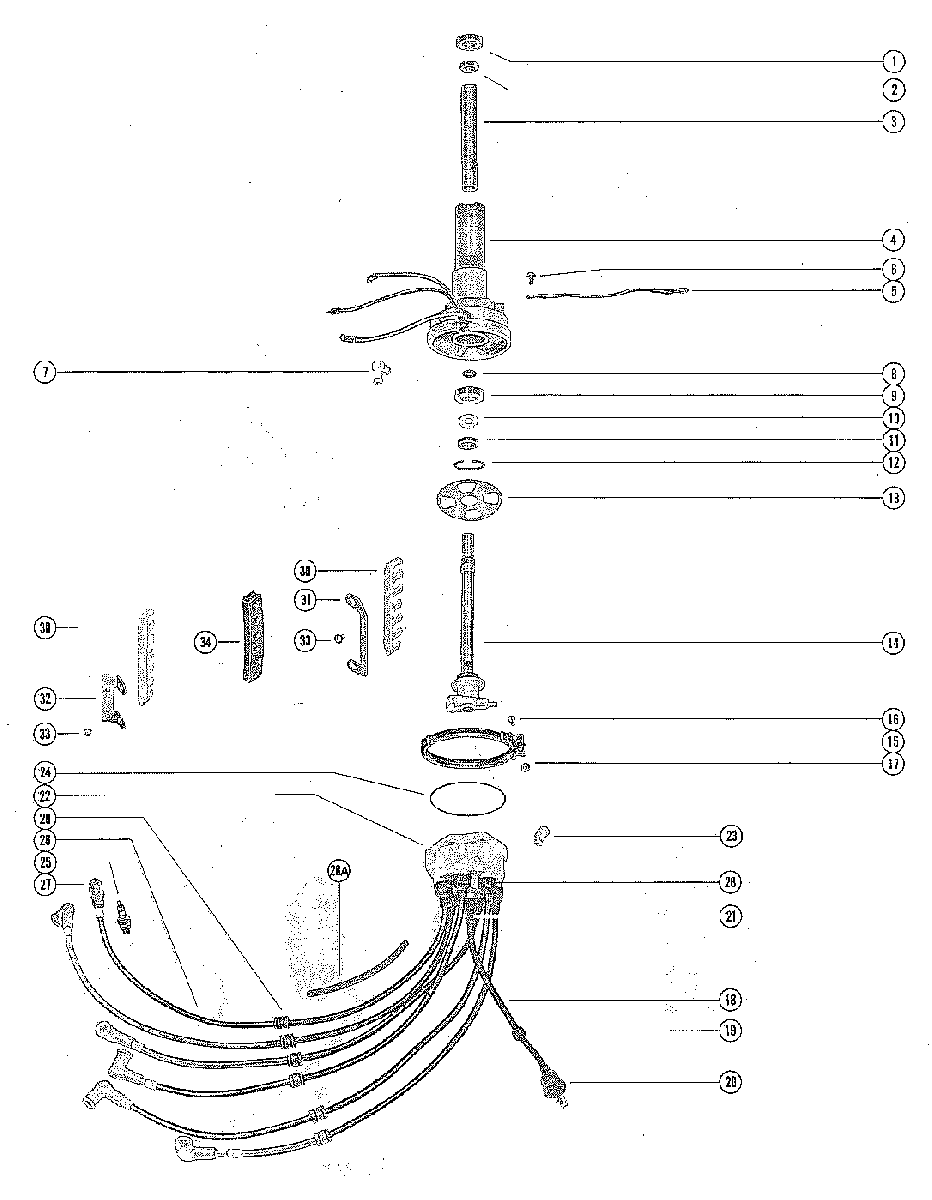

DISTRIBUTOR HOUSING AND ROTOR для Mercury - 1500 3502806 THRU 4865677

  • №
    Артикул
    Название
  • 1
    30-20066 BALL BEARING, DISTRIBUTOR HOUSING (UPPER)
    BALL BEARING, DISTRIBUTOR HOUSING (UPPER)
  • 2
    11-54209 NUT, ROTOR SHAFT TO DISTRIBUTOR HOUSING
    NUT, ROTOR SHAFT TO DISTRIBUTOR HOUSING
  • 3
    23-53539 SLEEVE, ROTOR SHAFT
    SLEEVE, ROTOR SHAFT
  • 4
    393-3736A79 HOUSING ASSEMBLY, DISTRIBUTOR
    HOUSING ASSEMBLY, DISTRIBUTOR
  • 5
    53417 GROUND STRAP ASSEMBLY, DISTRIBURTOR TO CRANKCASE
    GROUND STRAP ASSEMBLY, DISTRIBURTOR TO CRANKCASE
  • 6
    10-62568 SCREW, GROUND STRAP ATTACHING (3/8")
    SCREW, GROUND STRAP ATTACHING (3/8")
  • 7
    58807A1 FLAME ARRESTOR, VENT - DISTRIBUTOR HOUSING
    FLAME ARRESTOR, VENT - DISTRIBUTOR HOUSING
  • 8
    15-55853 SHIM BALL BEARING TO DISTRIBUTOR HOUSING
    SHIM BALL BEARING TO DISTRIBUTOR HOUSING
  • 9
    30-26379 BALL BEARING, DISTRIBUTOR HOUSING (LOWER)
    BALL BEARING, DISTRIBUTOR HOUSING (LOWER)
  • 10
    15-21148A1 SHIM, BALL BEARING TO SPACER
    SHIM, BALL BEARING TO SPACER
  • 11
    23-53538 SPACER, ROTOR SHAFT
    SPACER, ROTOR SHAFT
  • 12
    53-26406 RING, RETAINER - BALL BEARING TO DISTRIBUTOR HOUSING
    RING, RETAINER - BALL BEARING TO DISTRIBUTOR HOUSING
  • 13
    393-4313 DISC, ROTOR
    DISC, ROTOR
  • 14
    393-4312 ROTOR, DISTRIBUTOR
    ROTOR, DISTRIBUTOR
  • 15
    54-60768 CLAMP, DISTRIBUTOR CAP TO DISTRIBUTOR HSG
    PART OF DISTRIBUTOR CAP ASSEMBLY
    CLAMP, DISTRIBUTOR CAP TO DISTRIBUTOR HSG
    PART OF DISTRIBUTOR CAP ASSEMBLY
  • 16
    10-65774 SCREW, DISTRIBUTOR CAP CLAMP (1 1/8")
    PART OF DISTRIBUTOR CAP ASSEMBLY
    SCREW, DISTRIBUTOR CAP CLAMP (1 1/8")
    PART OF DISTRIBUTOR CAP ASSEMBLY
  • 17
    11-26768 NUT, DISTRIBUTOR CAP CLAMP SCREW
    PART OF DISTRIBUTOR CAP ASSEMBLY
    NUT, DISTRIBUTOR CAP CLAMP SCREW
    PART OF DISTRIBUTOR CAP ASSEMBLY
  • 18
    84-821945A5 CABLE ASSEMBLY, CAP TO COIL
    UNITED STATES 4121434 AND BELOW
    AUSTRALIA 8028039 AND BELOW
    CANADA 7048782 AND BELOW
    CABLE ASSEMBLY, CAP TO COIL
    UNITED STATES 4121434 AND BELOW
    AUSTRALIA 8028039 AND BELOW
    CANADA 7048782 AND BELOW
  • 18
    84-821945A2 CABLE ASSEMBLY, CAP TO COIL
    UNITED STATES 4121435 AND UP
    AUSTRALIA 8028040 AND UP
    CANADA 7048783 AND UP
    CABLE ASSEMBLY, CAP TO COIL
    UNITED STATES 4121435 AND UP
    AUSTRALIA 8028040 AND UP
    CANADA 7048783 AND UP
  • 19
    25-26547 GROMMETT, HIGH TENSION CABLE
    GROMMETT, HIGH TENSION CABLE
  • 20
    332-2854T01 BOOT, HIGH TENSION CABLE TO COIL
    BOOT, HIGH TENSION CABLE TO COIL
  • 21
    85-94589 BOOT, HIGH TENSION CABLE
    BOOT, HIGH TENSION CABLE
  • 22
    393-4841A2 DISTRIIBUTOR CAP ASSEMBLY
    DISTRIIBUTOR CAP ASSEMBLY
  • --
    393-1293A1 BRUSH AND SPRING ASSEMBLY
    BRUSH AND SPRING ASSEMBLY
  • 23
    58807A1 FLAME ARRESTOR, VENT - DISTRIBUTOR CAP
    FLAME ARRESTOR, VENT - DISTRIBUTOR CAP
  • 24
    27-55896 GASKET, DISTRIBUTOR CAP
    GASKET, DISTRIBUTOR CAP
  • 25
    33-97180Q SPARK PLUG (CHAMPION L-77V)
    UNITED STATES 4121434 AND BELOW
    AUSTRALIA 8028039 AND BELOW
    CANADA 7048782 AND BELOW
    SPARK PLUG (CHAMPION L-77V)
    UNITED STATES 4121434 AND BELOW
    AUSTRALIA 8028039 AND BELOW
    CANADA 7048782 AND BELOW
  • 25
    33-97180Q SPARK PLUG (CHAMPION L-76V)
    UNITED STATES 4121435 AND UP
    AUSTRALIA 8028040 AND UP
    CANADA 7048783 AND UP
    SPARK PLUG (CHAMPION L-76V)
    UNITED STATES 4121435 AND UP
    AUSTRALIA 8028040 AND UP
    CANADA 7048783 AND UP
  • 26
    84-813715A1 SPARK PLUG LEAD ASEMBLY #1, #2, #3, #4, #5 AND #6
    ORDER A-36549A1 KIT FOR REPLACEMENT OF LEAD WIRE MARKERS
    SPARK PLUG LEAD ASEMBLY #1, #2, #3, #4, #5 AND #6
    ORDER A-36549A1 KIT FOR REPLACEMENT OF LEAD WIRE MARKERS
  • --
    8M0084600 CONNECTOR, SPARK PLUG LEAD
    CONNECTOR, SPARK PLUG LEAD
  • 27
    85-63709A1 PROTECTOR, SPARK PLUG LEAD
    PROTECTOR, SPARK PLUG LEAD
  • 28
    85-94589 BOOT, SPARK PLUG LEAD TO DISTRIBUTOR
    BOOT, SPARK PLUG LEAD TO DISTRIBUTOR
  • 28A
    23-622381 SLEEVE, SPARK PLUG LEAD (7")
    SLEEVE, SPARK PLUG LEAD (7")
  • 29
    25-26547 GROMMET, SPARK PLUG LEADS
    GROMMET, SPARK PLUG LEADS
  • 30
    45409 WIRE RETAINER, HGIH TENSION LEADS
    WIRE RETAINER, HGIH TENSION LEADS
  • 31
    45392 BRACKET, FRONT - WIRE REAINER
    BRACKET, FRONT - WIRE REAINER
  • 31
    45392 BRACKET, FRONT - WIRE RETAINER
    BRACKET, FRONT - WIRE RETAINER
  • 32
    47398 BRACKET, REAR - WIRE RETAINER
    BRACKET, REAR - WIRE RETAINER
  • 33
    10-62568 SCREW, FRONT AND REAR BRACKET ATTACHING (3/8")
    SCREW, FRONT AND REAR BRACKET ATTACHING (3/8")
  • 34
    45391 SPACER, RUBBER - HIGH TENSION LEADS
    SPACER, RUBBER - HIGH TENSION LEADS
