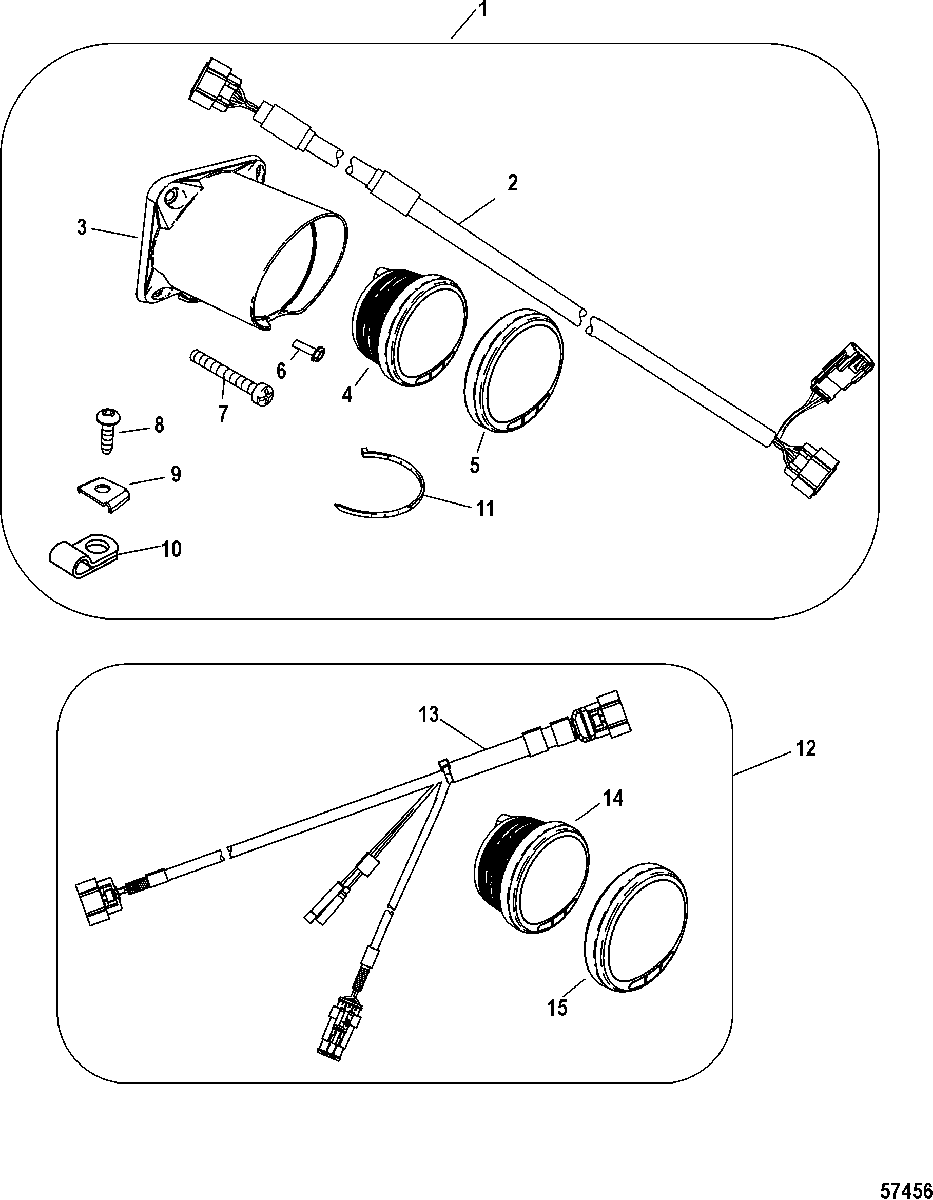

Tachometer Kits, Transom and Helm Mount для Mercury - 150 (4-Stroke) 1B905505 & Up

  • №
    Артикул
    Название
  • 1
    79-8M0104733 TACKOMETER KIT, Transom Mount
    TACKOMETER KIT, Transom Mount
  • 2
    84-8M2100452 HARNESS, Data Extension 10 Pin
    HARNESS, Data Extension 10 Pin
  • 3
    8M0099412 GAUGE HOUSING
    GAUGE HOUSING
  • 4
    NSS NOT SOLD SEPARATE, TACHOMETER 7K - Black
    NOT SOLD SEPARATE, TACHOMETER 7K - Black
  • 5
    8590741 BEZEL, (85 mm) Black
    BEZEL, (85 mm) Black
  • 6
    10-895054 SCREW, (M4 x 16 MM)
    SCREW, (M4 x 16 MM)
  • 7
    10-14742 SCREW, (.250-20 x 1.25)
    SCREW, (.250-20 x 1.25)
  • 8
    10-57807 SCREW, (#10-16 x .750) Stainless Steel
    SCREW, (#10-16 x .750) Stainless Steel
  • 9
    8M0084613 C WASHER
    C WASHER
  • 10
    54-22875 CLIP
    CLIP
  • 11
    69355 TIE STRAP, (5.50 Inches)
    TIE STRAP, (5.50 Inches)
  • 12
    79-8M0097226 TACKOMETER KIT, Helm Mount
    TACKOMETER KIT, Helm Mount
  • -
    79-8M0095037 TACKOMETER KIT, 7 K -Helm Mount (Black)
    TACKOMETER KIT, 7 K -Helm Mount (Black)
  • 13
    84-8M0055044 HARNESS, Tachometer, V 6.0
    HARNESS, Tachometer, V 6.0
  • 14
    NSS NOT SOLD SEPARATE, TACHOMETER 7K - Black
    NOT SOLD SEPARATE, TACHOMETER 7K - Black
  • 15
    8590741 BEZEL, (85 mm) Black
    BEZEL, (85 mm) Black
