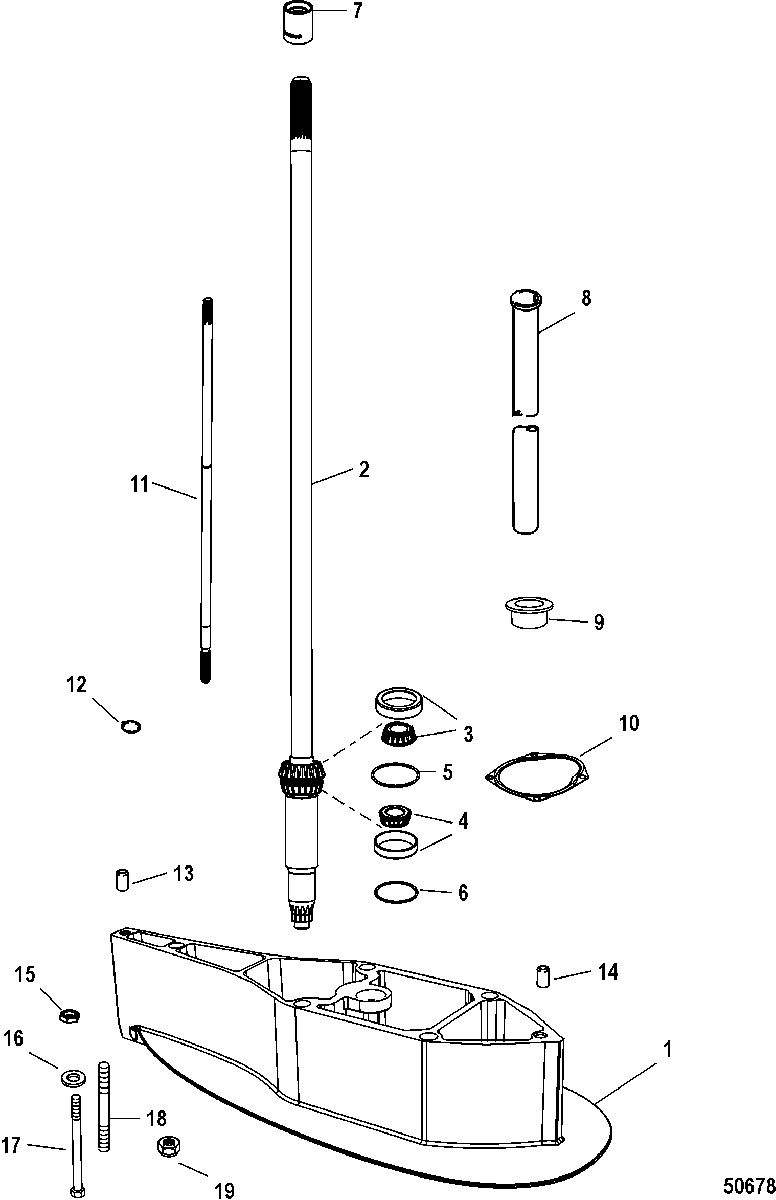

DriveShaft Housing Extension Kit для Mercury - 150 (4-Stroke) 1B905505 & Up

  • №
    Артикул
    Название
  • -
    8M0105087 EXTENSION KIT, Driveshaft Housing, Convert L to XL
    EXTENSION KIT, Driveshaft Housing, Convert L to XL
  • 1
    8M0105088 SPACER, Driveshaft Housing X-Long
    SPACER, Driveshaft Housing X-Long
  • 2
    45-8M0063505 DRIVESHAFT, X-Long
    DRIVESHAFT, X-Long
  • 3
    31-33138A1 BEARING ASSEMBLY, Tapered Roller
    BEARING ASSEMBLY, Tapered Roller
  • 4
    31-77420A1 BEARING ASSEMBLY, Roller
    BEARING ASSEMBLY, Roller
  • 5
    15-8M0063267 SHIM SET
    SHIM SET
  • 6
    15-8M0063268 SHIM SET
    SHIM SET
  • 7
    8M0036238 COUPLING, Water Pump
    COUPLING, Water Pump
  • 8
    8M0050570 TUBE, Water Spacer, X-long
    TUBE, Water Spacer, X-long
  • 9
    23-8M0061394 BUSHING
    BUSHING
  • 10
    27-8172771 GASKET
    GASKET
  • 11
    8M0140439 SHIFT SHAFT, X-Long
    SHIFT SHAFT, X-Long
  • 12
    8M0030784 WASHER, Keyed
    WASHER, Keyed
  • 13
    17-43044 PIN, Dowel - Without Hole (.375 x .625)
    PIN, Dowel - Without Hole (.375 x .625)
  • 14
    17-8M0084244 PIN, Dowel - With Hole (.375 x .625)
    PIN, Dowel - With Hole (.375 x .625)
  • 15
    11-896895 NUT, (M12)
    NUT, (M12)
  • 16
    12-856982 WASHER, (.500 x .810 x .090) Stainless Steel
    WASHER, (.500 x .810 x .090) Stainless Steel
  • 17
    10-857137 SCREW, (M12 x 160)
    SCREW, (M12 x 160)
  • 18
    16-8M0008047 STUD, (M12 x 179)
    STUD, (M12 x 179)
  • 19
    11-35921 NUT, (.625-18)
    NUT, (.625-18)
