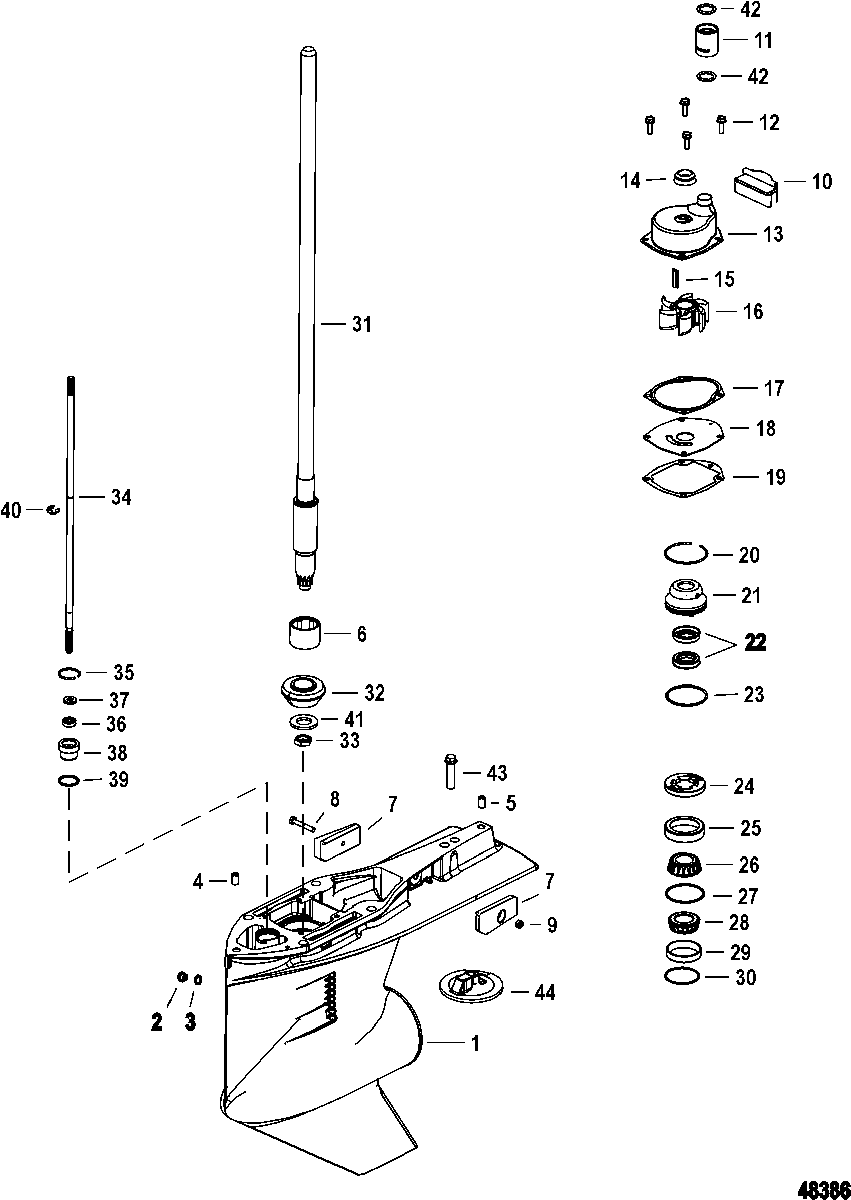

Gear Housing, Driveshaft, Standard/Counter Rotation для Mercury - 150 (4-Stroke) 1B905505 & Up

  • №
    Артикул
    Название
  • -
    1600-8M0099218 GEARCASE HOUSING ASSY, Complete, Long
    Non SeaPro
    GEARCASE HOUSING ASSY, Complete, Long
    Non SeaPro
  • -
    1600-8M0099909 GEARCASE HOUSING ASSY, Complete, Long
    SeaPro
    GEARCASE HOUSING ASSY, Complete, Long
    SeaPro
  • -
    1600-8M0099221 GEARCASE HOUSING ASSY, Complete, X-Long
    Non SeaPro
    GEARCASE HOUSING ASSY, Complete, X-Long
    Non SeaPro
  • -
    1600-8M0099910 GEARCASE HOUSING ASSY, Complete, XL
    SeaPro
    GEARCASE HOUSING ASSY, Complete, XL
    SeaPro
  • -
    1600-8M0107156 GEARCASE HOUSING ASSY, Complete, CXL
    Non SeaPro
    GEARCASE HOUSING ASSY, Complete, CXL
    Non SeaPro
  • -
    1600-8M0099914 GEARCASE HOUSING ASSY, Complete, CXL
    SeaPro
    GEARCASE HOUSING ASSY, Complete, CXL
    SeaPro
  • 1
    1600-8M0057747 GEARCASE HOUSING ASSY, Basic
    Non SeaPro
    GEARCASE HOUSING ASSY, Basic
    Non SeaPro
  • 1
    1600-8M0099907 GEARCASE HOUSING ASSY, Basic
    SeaPro
    GEARCASE HOUSING ASSY, Basic
    SeaPro
  • 2
    10-79953A04 PLUG ASSEMBLY, (.375-16 x .250)
    PLUG ASSEMBLY, (.375-16 x .250)
  • 3
    26-830749 SEAL
    SEAL
  • 4
    17-8M0084244 PIN, Dowel - With Hole (.375 x .625)
    PIN, Dowel - With Hole (.375 x .625)
  • 5
    17-43044 PIN, Dowel - Without Hole (.375 x .625)
    PIN, Dowel - Without Hole (.375 x .625)
  • 6
    31-42647A1 BEARING ASSEMBLY, Roller
    BEARING ASSEMBLY, Roller
  • 7
    97-826134Q ANODE
    ANODE
  • 8
    10-4000333 SCREW, (M6 x 40)
    SCREW, (M6 x 40)
  • 9
    11-401386 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 10
    8M0010459 FILLER BLOCK
    FILLER BLOCK
  • 11
    8M0036238 COUPLING, Water Pump
    COUPLING, Water Pump
  • 12
    10-1993720 SCREW, (M6 x 20)
    SCREW, (M6 x 20)
  • 13
    817275A10 HOUSING KIT, Water Pump
    HOUSING KIT, Water Pump
  • 14
    26-8M2014338 SEAL, Face
    SEAL, Face
  • -
    47-8M0100526 IMPELLER REPAIR KIT
    IMPELLER REPAIR KIT
  • 15
    28-8M0032833 KEY
    KEY
  • 16
    47-43026T2 IMPELLER
    IMPELLER
  • 17
    27-8172771 GASKET
    GASKET
  • 18
    8172761 FACEPLATE
    FACEPLATE
  • 19
    27-8M0112903 GASKET
    GASKET
  • 20
    53-880719 RING, Retaining
    RING, Retaining
  • 21
    8M0057748 OIL SEAL CARRIER ASSY
    OIL SEAL CARRIER ASSY
  • 22
    26-89238 SEAL, Oil
    SEAL, Oil
  • 23
    25-896523 O-RING, (2.175 x .103)
    O-RING, (2.175 x .103)
  • 24
    853651 RETAINER
    RETAINER
  • 25
    31-33138A1 BEARING ASSEMBLY, Tapered Roller
    BEARING ASSEMBLY, Tapered Roller
  • 26
    NSS NOT SOLD SEPARATE
    NOT SOLD SEPARATE
  • 27
    15-8M0063267 SHIM SET
    SHIM SET
  • 28
    31-77420A1 BEARING ASSEMBLY, Roller
    BEARING ASSEMBLY, Roller
  • 29
    NSS NOT SOLD SEPARATE
    NOT SOLD SEPARATE
  • 30
    15-8M0063268 SHIM ASSEMBLY
    Component of 8M0057741
    SHIM ASSEMBLY
    Component of 8M0057741
  • 31
    45-8M0063505 DRIVESHAFT, X-Long
    DRIVESHAFT, X-Long
  • 31
    45-8M0063503 DRIVESHAFT, Long
    DRIVESHAFT, Long
  • 32
    NSS NOT SOLD SEPARATE, Pinion
    Component of 8M0057741
    NOT SOLD SEPARATE, Pinion
    Component of 8M0057741
  • 33
    11-35921 NUT, (.625-18)
    NUT, (.625-18)
  • 34
    8M0140439 SHIFT SHAFT, X-Long
    SHIFT SHAFT, X-Long
  • 34
    8M0031503 SHIFT SHAFT, Long
    SHIFT SHAFT, Long
  • 35
    53-8M0029306 RING, Retaining
    RING, Retaining
  • 36
    26-8164641 SEAL, Oil
    SEAL, Oil
  • 37
    12-77674 WASHER
    WASHER
  • 38
    23-813696A2 BUSHING ASSEMBLY
    BUSHING ASSEMBLY
  • 39
    25-45258 O-RING, (.987 x .103)
    O-RING, (.987 x .103)
  • 40
    53-29641 E RING
    E RING
  • 41
    12-92721 WASHER
    WASHER
  • 42
    25-21836 O-RING, (.796 x .139)
    O-RING, (.796 x .139)
  • 43
    10-806327 SCREW, (.437-14 x 1.750)
    SCREW, (.437-14 x 1.750)
  • 44
    97-76214Q5 ANODE KIT
    ANODE KIT
  • 45
    22-67892002 SCREW, Magnetic
    SeaPro
    SCREW, Magnetic
    SeaPro
  • -
    8M0094529 COMPLETE WATER PUMP REPAIR KIT
    COMPLETE WATER PUMP REPAIR KIT
  • -
    8M0057716 GEARCASE SEAL KIT
    GEARCASE SEAL KIT
  • -
    46-8M0061040 REPAIR KIT, Water Pump-Upper
    REPAIR KIT, Water Pump-Upper
  • -
    8M0060147 SKEG
    SKEG
