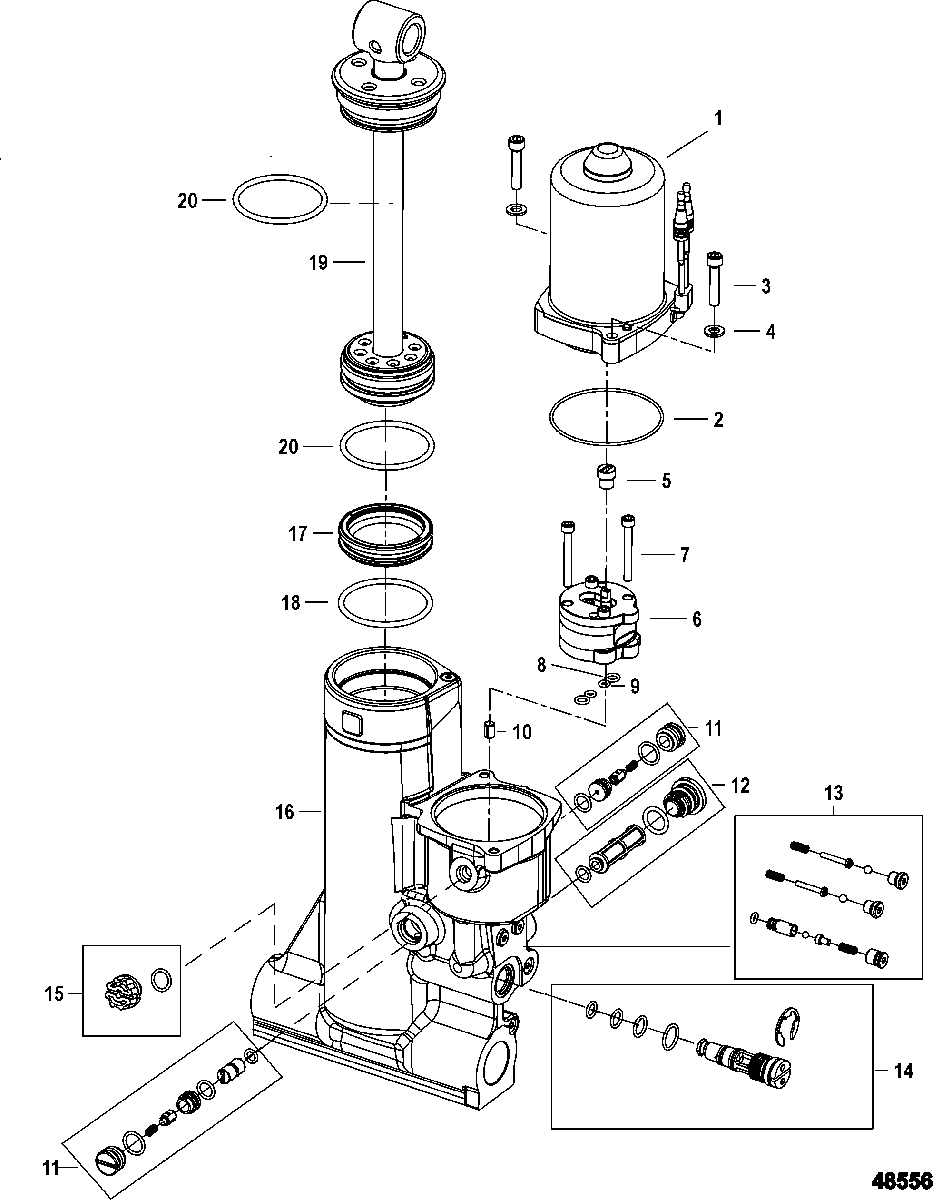

Power Trim Assembly, Components для Mercury - 150 (4-Stroke) 1B905505 & Up
-
№АртикулНазвание
-
18M0060140 TRIM ASSEMBLY MOTOR KITTRIM ASSEMBLY MOTOR KIT
-
2NSS NOT SOLD SEPARATE, O-ringNOT SOLD SEPARATE, O-ring
-
310-82494830 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
413-400256 LOCKWASHER, (M6)LOCKWASHER, (M6)
-
58M0090403 DRIVESHAFTDRIVESHAFT
-
68M0060127 TRIM ASSEMBLY PUMP KITTRIM ASSEMBLY PUMP KIT
-
7NSS NOT SOLD SEPARATE, ScrewNOT SOLD SEPARATE, Screw
-
8NSS NOT SOLD SEPARATE, O-ringNOT SOLD SEPARATE, O-ring
-
9NSS NOT SOLD SEPARATE, O-ringNOT SOLD SEPARATE, O-ring
-
10NSS NOT SOLD SEPARATE, BushingNOT SOLD SEPARATE, Bushing
-
118M0060126 TRIM ASSEMBLY PO CHECK KITTRIM ASSEMBLY PO CHECK KIT
-
1235-8M0060143 TRIM ASSEMBLY FILTER KITTRIM ASSEMBLY FILTER KIT
-
138M0060128 RELIEF VALVE KITRELIEF VALVE KIT
-
148M0060141 MANUAL RELEASE KITMANUAL RELEASE KIT
-
1519-811613 PLUG ASSEMBLYPLUG ASSEMBLY
-
16NSS NOT SOLD SEPARATENOT SOLD SEPARATE
-
178M0060146 MEMORY PISTON KITMEMORY PISTON KIT
-
18NSS NOT SOLD SEPARATE, O-ringNOT SOLD SEPARATE, O-ring
-
198M0060145 SHOCK ROD ASSEMBLYSHOCK ROD ASSEMBLY
-
20NSS NOT SOLD SEPARATE, O-ringNOT SOLD SEPARATE, O-ring
-
2110-8M0050058 SCREW, 5/16-24 X .5SCREW, 5/16-24 X .5
-
-8M0057770 O-RING KIT, COMPLETEO-RING KIT, COMPLETE
