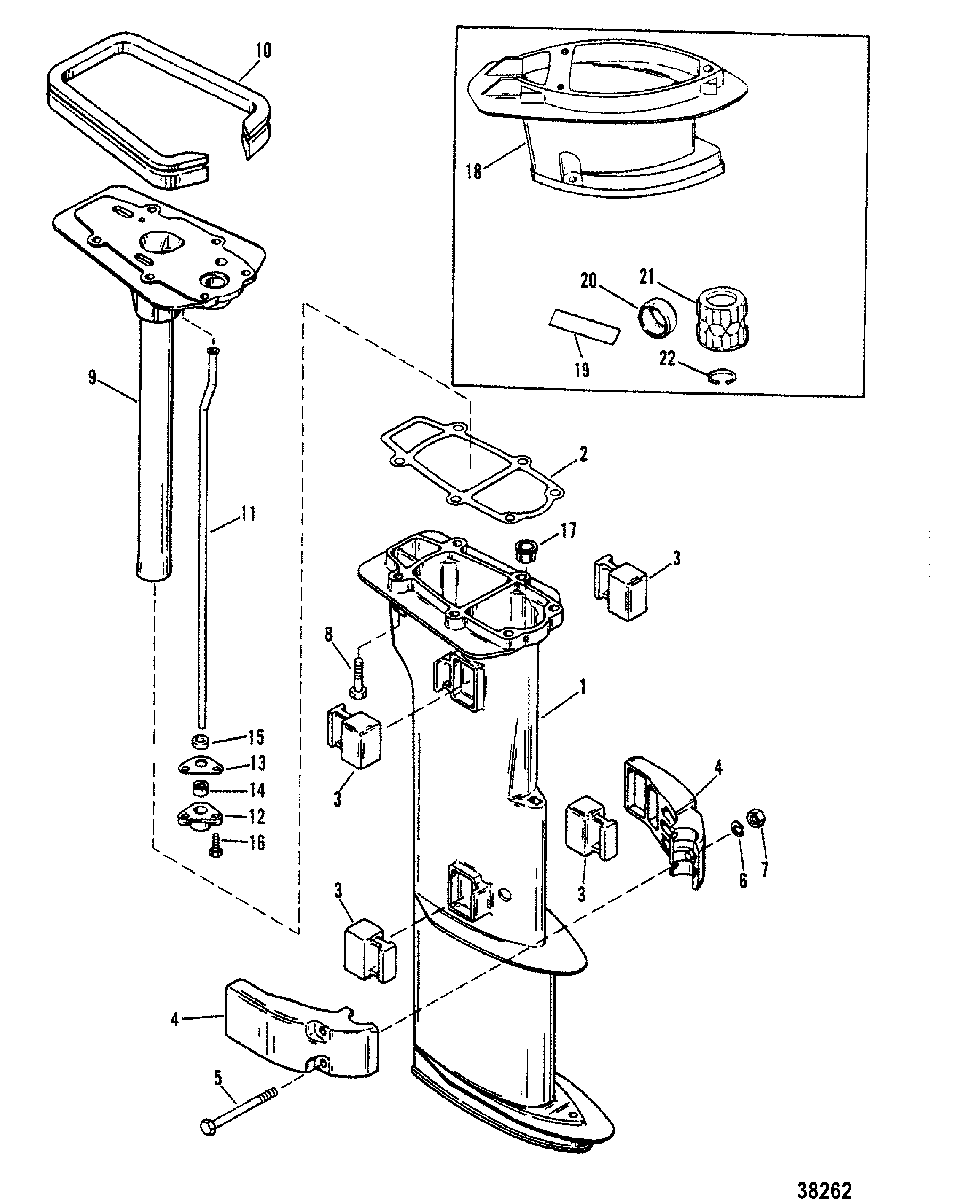

DRIVESHAFT HOUSING для Mercury - 15 9542620 THRU 9792199

  • №
    Артикул
    Название
  • 1
    1596-822154A1 HOUSING ASSEMBLY (SHORT) (BLACK)
    HOUSING ASSEMBLY (SHORT) (BLACK)
  • 1
    1597-822155A1 HOUSING ASSEMBLY (LONG) (BLACK)
    HOUSING ASSEMBLY (LONG) (BLACK)
  • 1
    1596-822154A2 HOUSING ASSEMBLY (SHORT) (GRAY)
    HOUSING ASSEMBLY (SHORT) (GRAY)
  • 1
    1597-822155A2 HOUSING ASSEMBLY (LONG) (GRAY)
    HOUSING ASSEMBLY (LONG) (GRAY)
  • 2
    27-195992 GASKET, DRIVESHAFT HOUSING
    GASKET, DRIVESHAFT HOUSING
  • 3
    8M0039074 MOUNT
    MOUNT
  • 4
    N.L.A. NO LONGER AVAILABLE, COVER-MOUNT (SEE NOTE)
    NO LONGER AVAILABLE, COVER-MOUNT (SEE NOTE)
  • 4
    42374F6 COVER, Mount (BLACK)
    USE W/2 HOLE SWIVEL TUBE
    COVER, Mount (BLACK)
    USE W/2 HOLE SWIVEL TUBE
  • 4
    42374F6 COVER, MOUNT (GRAY)
    USE W/2 HOLE SWIVEL TUBE
    COVER, MOUNT (GRAY)
    USE W/2 HOLE SWIVEL TUBE
  • 5
    10-4009238 SCREW, (M6 x 80), MOUNT COVER
    SCREW, (M6 x 80), MOUNT COVER
  • 6
    13-400256 LOCKWASHER, (M6)
    LOCKWASHER, (M6)
  • 7
    11-400212 NUT, (M6) Stainless Steel, COVER SCREW
    NUT, (M6) Stainless Steel, COVER SCREW
  • 8
    10-40011131 SCREW, (M6 x 35) Stainless Steel, DRIVESHAFT HOUSING TO PLATE
    SCREW, (M6 x 35) Stainless Steel, DRIVESHAFT HOUSING TO PLATE
  • 9
    413448 ADAPTOR PLATE (NO TUBE) (6/8)
    ADAPTOR PLATE (NO TUBE) (6/8)
  • 9
    41344A4 ADAPTOR PLATE ASSEMBLY (1"I.D. TUBE)
    (9.9/210 CC SAILPOWER)
    ADAPTOR PLATE ASSEMBLY (1"I.D. TUBE)
    (9.9/210 CC SAILPOWER)
  • 9
    41344A3 ADAPTOR PLATE ASSEMBLY (1-1/8"I.D. TUBE) (15)
    ADAPTOR PLATE ASSEMBLY (1-1/8"I.D. TUBE) (15)
  • 10
    26-11287001 SEAL, Adapter Plate
    SEAL, Adapter Plate
  • 11
    32-42123 TUBE, Water (SHORT)
    TUBE, Water (SHORT)
  • 11
    32-42122 TUBE, Water (LONG)
    TUBE, Water (LONG)
  • 11
    32-421231 TUBE, Water (X-LONG)
    TUBE, Water (X-LONG)
  • 12
    42371 HOLDER, WATER TUBE
    HOLDER, WATER TUBE
  • 13
    27-192012 GASKET, WATER TUBE HOUSING
    GASKET, WATER TUBE HOUSING
  • 14
    26-42380001 SEAL, WATER TUBE
    SEAL, WATER TUBE
  • 15
    23-42465 SPACER, WATER TUBE
    SPACER, WATER TUBE
  • 16
    10-40011107 SCREW, (M5 x 16) Stainless Steel, HOUSING TO ADAPTOR PLATE
    SCREW, (M5 x 16) Stainless Steel, HOUSING TO ADAPTOR PLATE
  • 17
    445551 BLOCK, Bearing (LONG)
    BLOCK, Bearing (LONG)
  • 18
    124262 HOUSING, Drive Shaft Extension (X-LONG)
    HOUSING, Drive Shaft Extension (X-LONG)
  • 19
    23-123691 BUSHING, X-LONG
    BUSHING, X-LONG
  • 20
    123702 HOUSING, BEARING (X-LONG)
    HOUSING, BEARING (X-LONG)
  • 21
    14107001 RETAINER, BEARING (X-LONG)
    RETAINER, BEARING (X-LONG)
  • 22
    53-14094 RING, Snap, X-LONG
    RING, Snap, X-LONG
  • -
    42213A14 SWIVEL TUBE REPLACEMENT, COMPLETE (BLACK)
    INCLUDES TWO HOLE SWIVEL PIN AND TWO MOUNT COVERS
    SWIVEL TUBE REPLACEMENT, COMPLETE (BLACK)
    INCLUDES TWO HOLE SWIVEL PIN AND TWO MOUNT COVERS
  • -
    42213A14 SWIVEL TUBE REPLACEMENT, COMPLETE (GRAY)
    INCLUDES TWO HOLE SWIVEL PIN AND TWO MOUNT COVERS
    SWIVEL TUBE REPLACEMENT, COMPLETE (GRAY)
    INCLUDES TWO HOLE SWIVEL PIN AND TWO MOUNT COVERS
